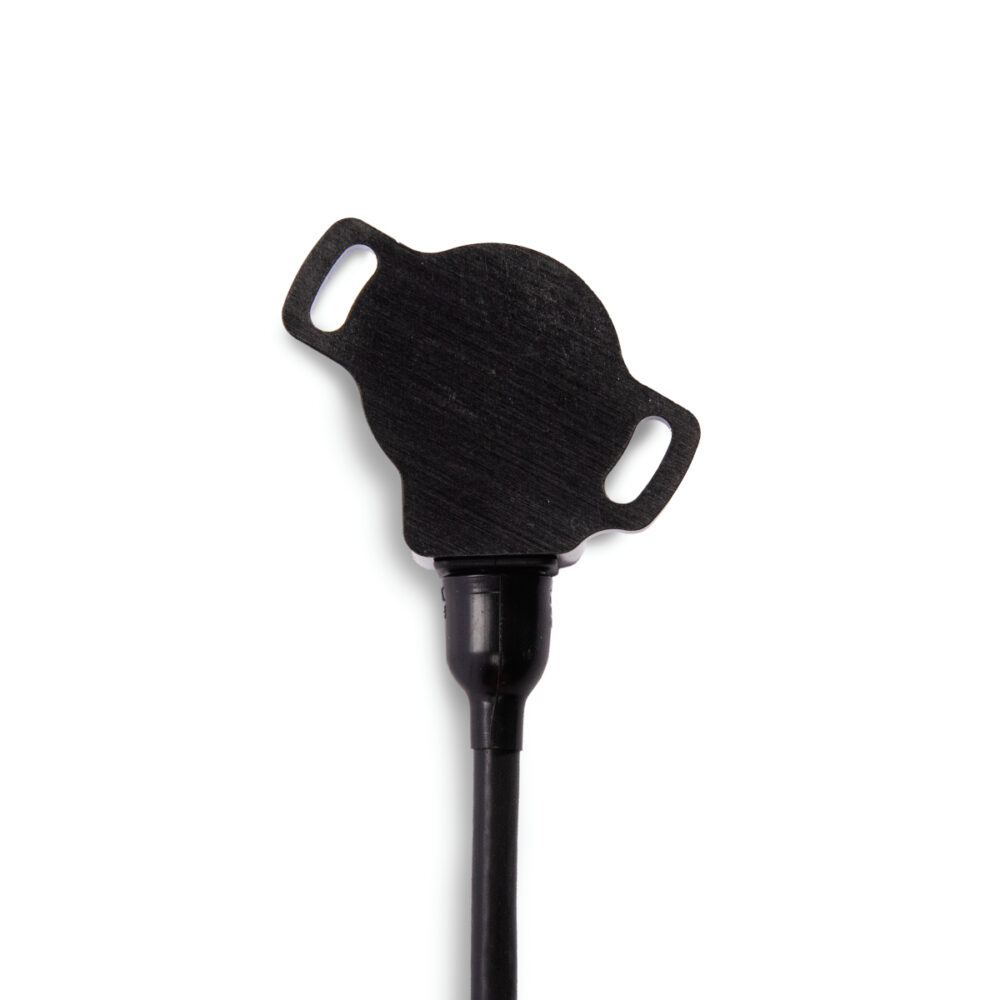

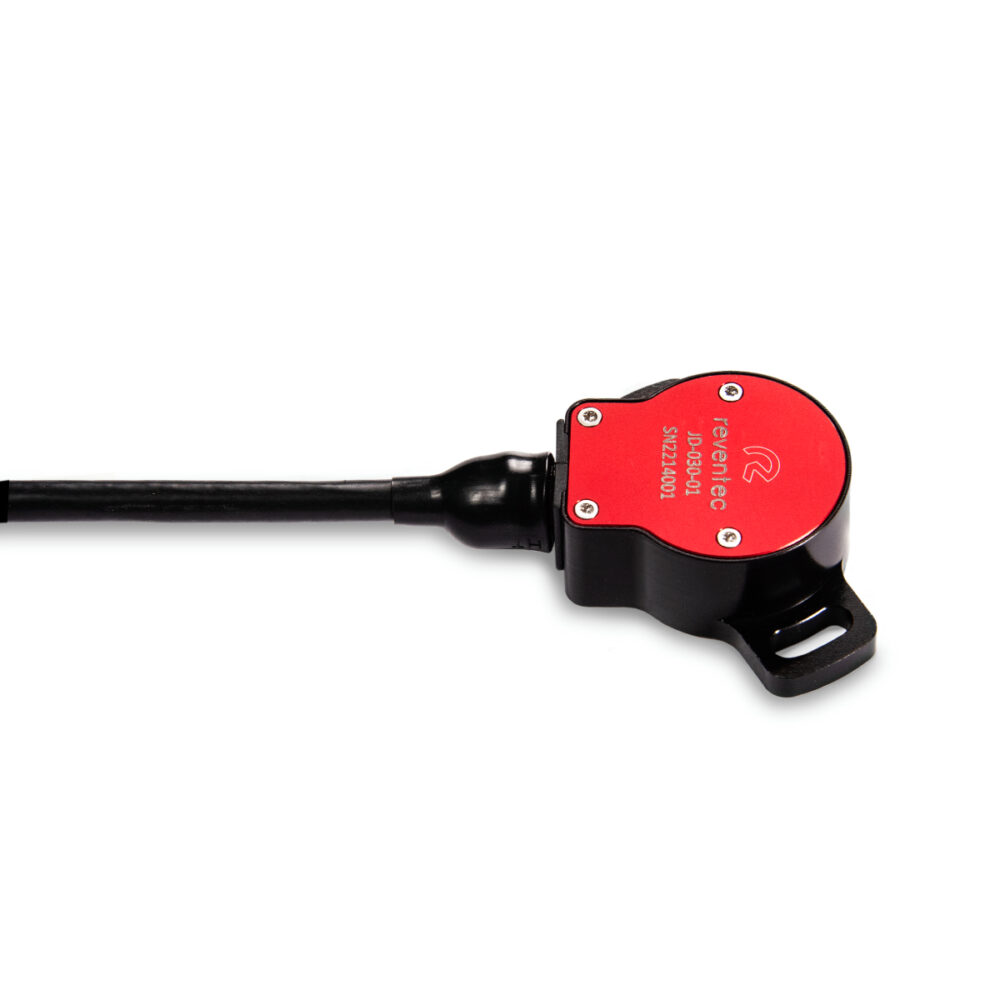

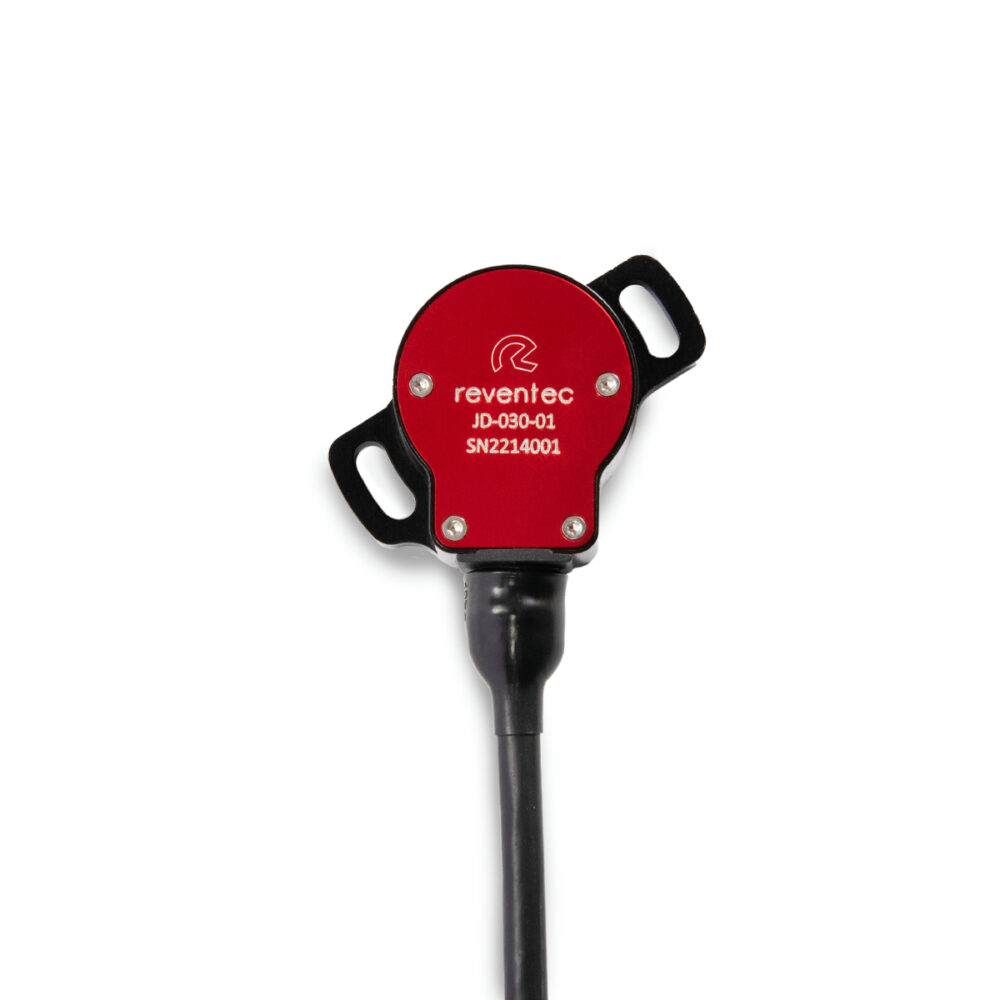

Reventec’s Quantum TMR™ 360° Triple Channel Rotary Position Sensor with Split Cable delivers highly accurate angular position measurement across a full 359° sensing range. Designed for harsh environments such as UAV platforms, UGVs, and advanced robotics, it features a compact Y-cable layout for streamlined installation. Leveraging proprietary TMR (Tunnelling MagnetoResistive) technology, this non-contact, solid-state device offers three fully configurable analog outputs, enabling signal redundancy or multichannel data acquisition in real-time control architectures.
Engineered for environments with high vibration and thermal variability, the sensor maintains ±0.5% reading accuracy and a 5 kHz update rate from –40 °C to +150 °C. Each channel outputs a 12-bit analog signal processed via integrated onboard CPUs, eliminating the need for external electronics. Its modular design supports user-defined housing, connector, and output configurations. Ideal for pedal sensing, actuator feedback, or rotary mechanism monitoring, this IP67-rated instrument is fully factory-calibrated and supports programming via GUI for seamless adaptation across uncrewed and defense applications.
| Feature | Specification |
|---|---|
| Measurement Range | 0 – 359° |
| Output | Triple channel, analog VDC |
| Output Resolution | 12-bit |
| Accuracy | ±0.5% of reading |
| Response Rate | 5 kHz |
| Operating Temperature | –40 °C to +150 °C |
| Ingress Protection | IP67 |
| Technology | Quantum TMR™ |
| Shaft Type | Non-contact rotary sensing |
| Programmability | Field-configurable via GUI |
| Cable Type | Integrated Y-split cable |
| Applications | UAVs, UGVs, robotics, military control systems |
