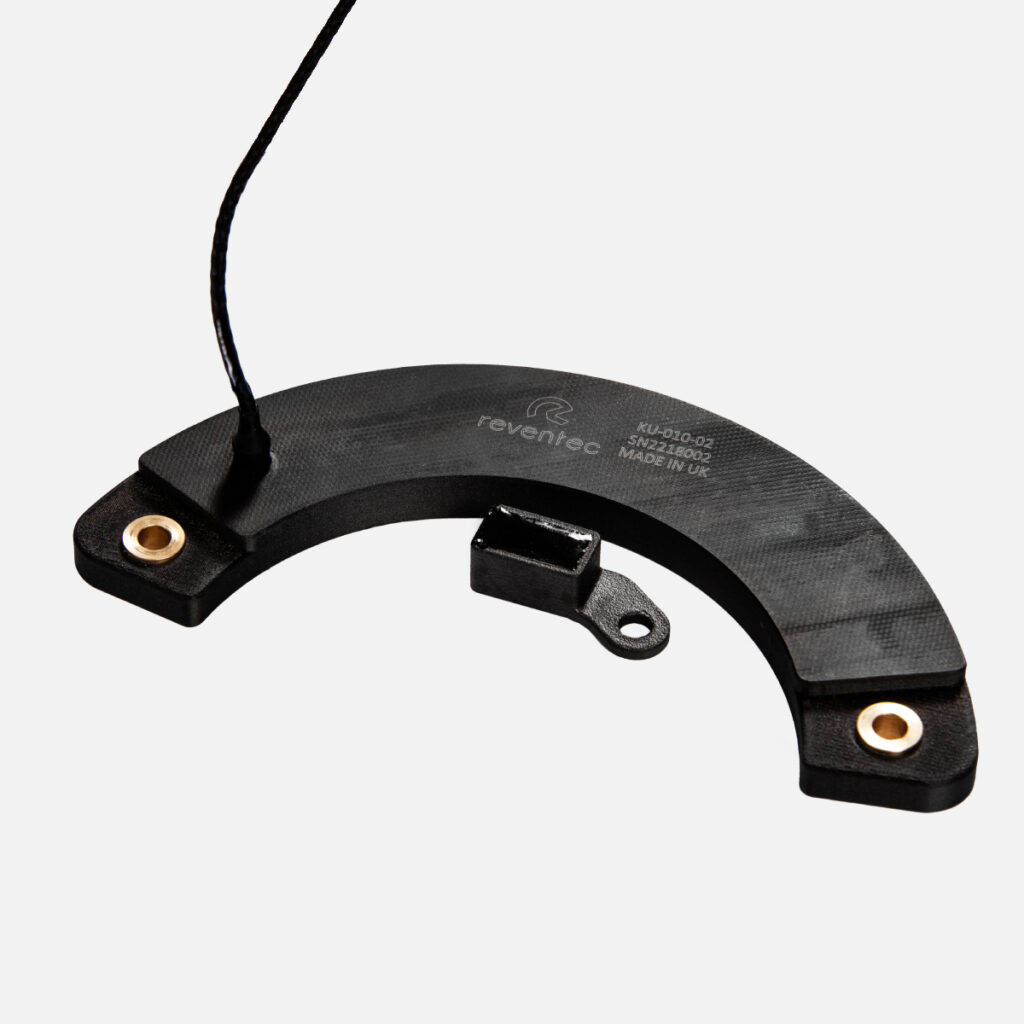

Reventec’s Quantum TMR 100° Arc Position Sensor offers uncompromising accuracy and reliability across a 100° arc range, optimized for unmanned systems such as drones, automated actuators, and robotics operating in extreme environments. Its non-contact Quantum TMR™ design delivers rapid 5 kHz sensing with ±0.5% reading accuracy—ensuring responsive and precise motion control without mechanical wear.
Engineered for versatility, it supports seamless integration via its analog VDC output, embedded CPU, and rugged IP67 protection. With programmability, factory calibration, and the ability to sense through up to 40 mm of non-ferrous material, it simplifies system design and reduces maintenance. Highly configurable—down to housing, connector type, and sensing arc—it’s a reliable plug-and-play component for autonomous platforms demanding long-term operational excellence.
| Feature | Specification |
|---|---|
| Measurement Range | ±50° (100° arc) |
| Output | Analog VDC (12‑bit) |
| Accuracy | ±0.5% of reading |
| Update Rate | 5 kHz |
| Operating Temperature | –40 °C to +125 °C |
| Ingress Protection | IP67 |
| Housing Material | Durable, lightweight design |
| Non‑Contact Sensing | Yes – up to 40 mm air gap / 20 mm non‑ferrous |
| Technology | Quantum TMR™ |
| Onboard Electronics | Integrated CPU for direct analog output |
| Programmability | Factory-calibrated; customizable housing, connectors, range |
| Applications | UAVs, defense vehicles, robotics, automotive, industrial |
