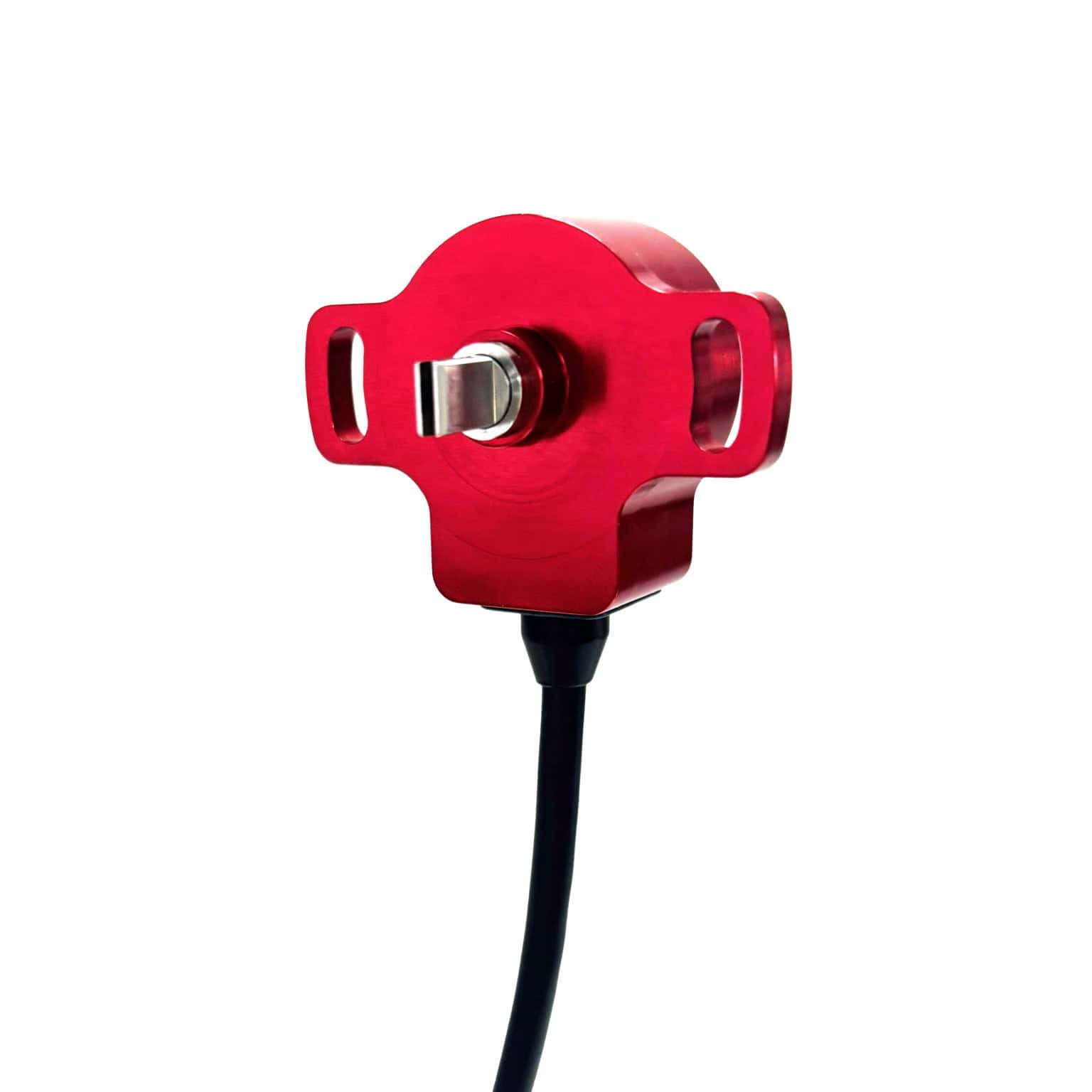

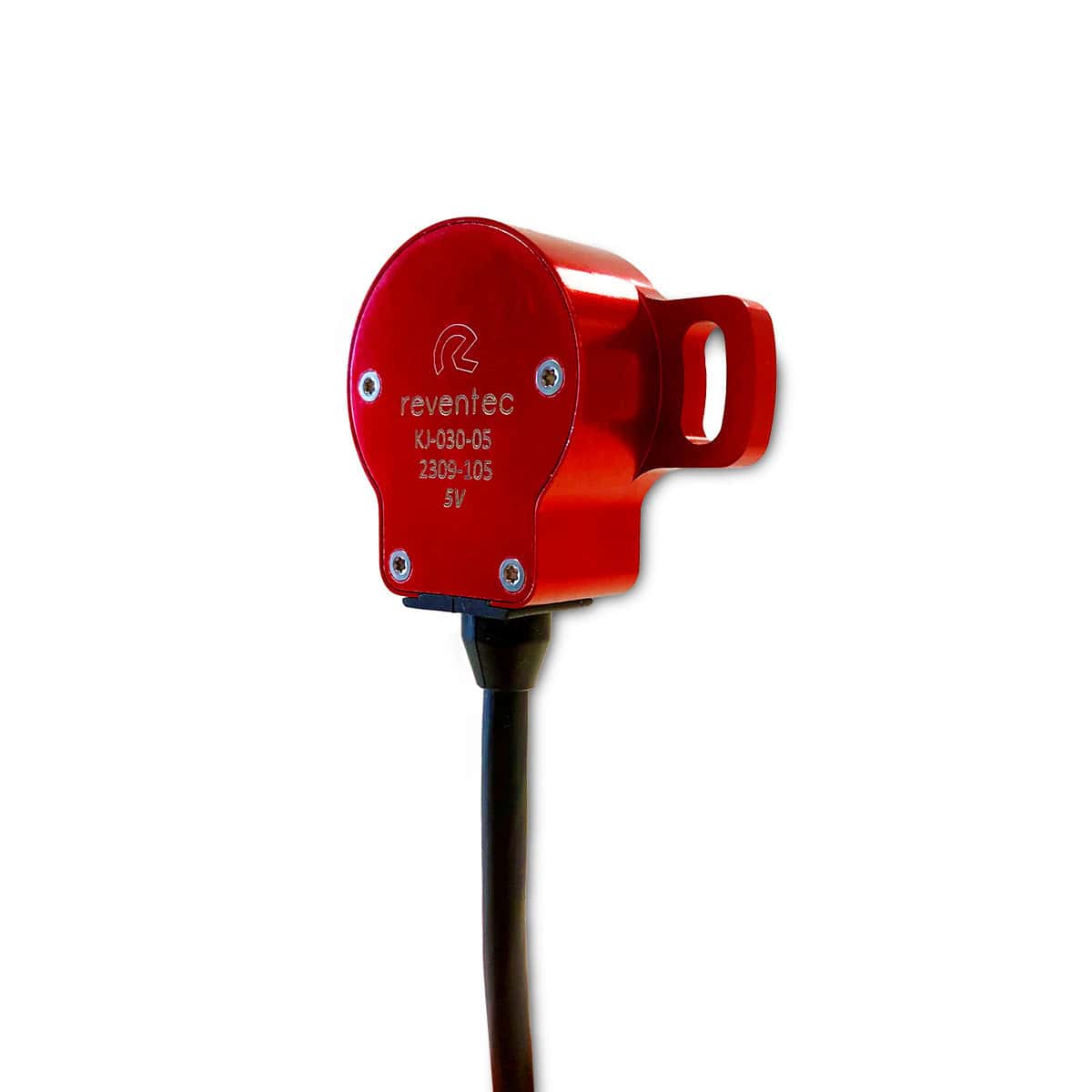

The Dual Channel Rotary Position Sensor with Blade Shaft from Reventec provides robust, high-resolution angular position detection across a full 359° range. Built with Quantum TMR™ (Tunnelling MagnetoResistive) technology, it ensures highly accurate measurement—up to ±0.5% of reading—and fast response times at 5kHz. With a compact integrated blade shaft and ratiometric analog output, this drop-in replacement for potentiometers is ideal for precision control systems in drones, robotics, and autonomous platforms operating in unforgiving environments.
Its dual-channel design supports configurable redundancy for fault-tolerant architectures or independent output mapping, offering engineering flexibility in mission-critical systems. Engineered for high-reliability use, the sensor functions from -40°C to +150°C and meets IP67 standards for ingress protection. Fully programmable via GUI and customizable in housing, interface, and output, it seamlessly adapts to diverse integration needs in UAVs, UGVs, industrial robotics, and other unmanned systems.
| Feature | Specification |
|---|---|
| Measurement Range | 0 – 359° |
| Output | Dual channel, analog VDC |
| Output Resolution | 12-bit |
| Accuracy | ±0.5% of reading |
| Response Rate | 5kHz |
| Operating Temperature | -40°C to +150°C |
| Ingress Protection | IP67 |
| Technology | Quantum TMR™ |
| Shaft Type | Integrated Blade Shaft |
| Programmability | Field-configurable via GUI |
| Applications | UAV, UGV, robotics, industrial, marine |
