RF Modules

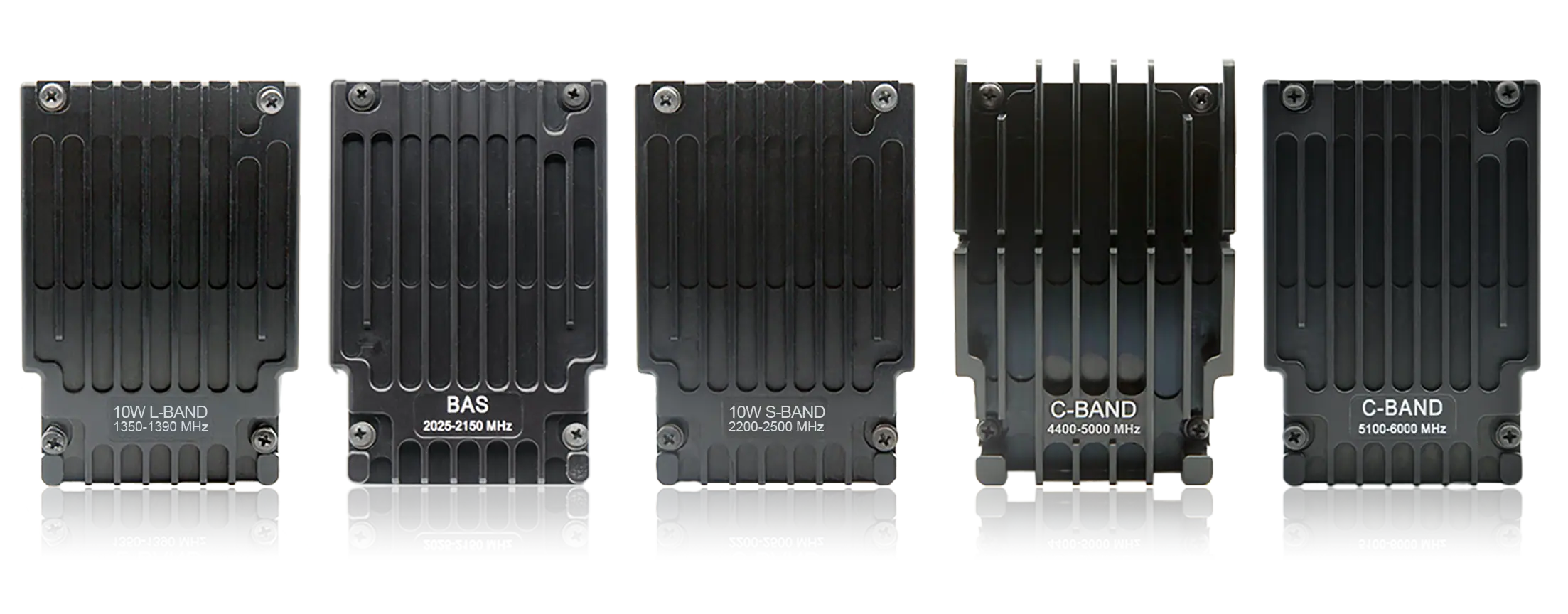

Persistent Systems offers a range of Interchangeable Frequency Modules for the MPU5 and Embedded Module that allow you to select the most suitable operational band for your mission without replacing or redesigning your radio systems. This capability also allows you to future-proof your unmanned systems in the face of evolving global spectrum regulations.
| High Power L-Band | BAS Band | High Power S-Band | Lower C-Band | Upper C-Band | |
| Frequency Range: | 1350 – 1390 MHz | 2025 – 2145 MHz | 2200 – 2507 MHz | 4400 – 5000 MHz | 5100 – 6000 MHz |
| Max Transmit Power: | 10W (3.3W per RF Chain) | 6W (2W per RF Chain) | 10W (3.3W per RF Chain) | 6W (2W per RF Chain) | 4W (1.3W per RF Chain) |
| Channel Bandwidth: | 5, 10, and 20 MHz Software Configurable | ||||
| RF Modulation: | OFDM (64QAM, 16QAM, QPSK) | ||||
| TX/RX Operating Modes: | All MIMO modes from SISO to 3×3 | ||||
| Peak Throughput: | 150 Mbps at 20 MHz | ||||
