TrueRC SINGULARITY 5.8 stubby SMA/RP-SMA

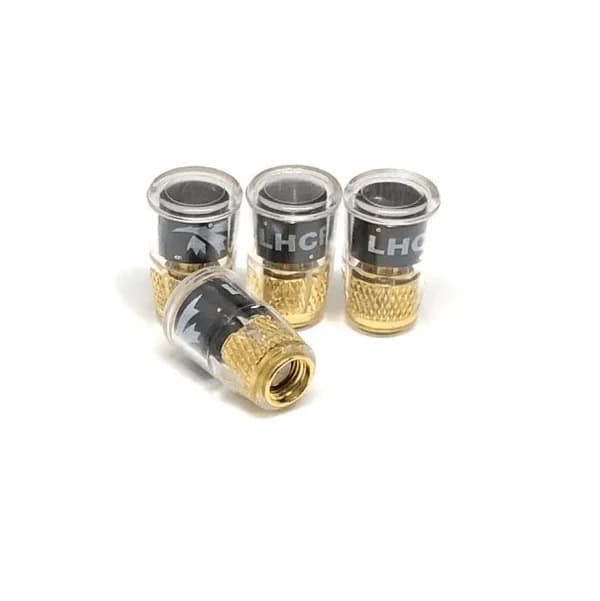

TrueRC’s NDAA-compliant SINGULARITY 5.8 stubby SMA/RP-SMA is a compact omnidirectional circularly polarized antenna for FPV video systems. It is available with RHCP or LHCP polarization and a choice of SMA or RP-SMA connectors.
The SMA version encloses the antenna element in a thick, hardened polycarbonate case for increased impact resistance. The RP-SMA version is designed as a direct-fit replacement for DJI FPV Goggles antennas, providing a lower profile and over 50 percent more range than the stock antenna. Compatible systems also include HDZero goggles and the HDZero VRX4.
The antenna is available individually with either connector, with the RP-SMA version also offered as a four-pack.
Specifications:
| Operating Frequency | 5.8 GHz |
|---|---|
| Gain | 1.9 dBic |
| Bandwidth | 5.6 to 6.0 GHz |
| Cross-Polar Rejection | -15 to -30 dB |
| Radiation Efficiency | 99% |
| SWR | ≤1.5:1 |
| Weight | 3.7 g |
| Dimensions | 12.7 mm diameter × 20 mm height |
