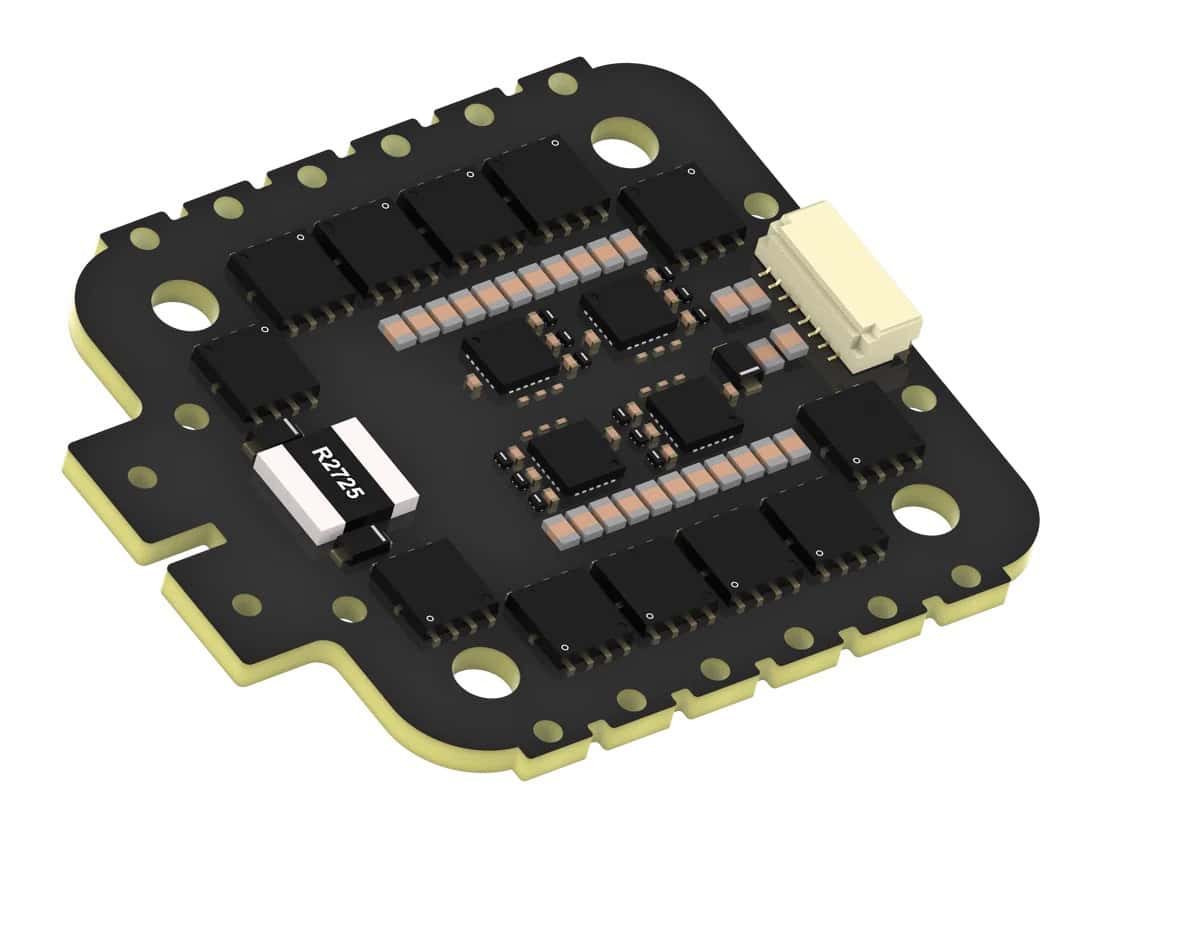

Triumph Lucid 60 A 3–8S AM32 4-in-1 ESC
Triumph's Lucid 60 A 3–8S AM32 4-in-1 ESC is a U.S.-manufactured NDAA-compliant motor controller built on an eight-layer high-current-density board. Its onboard capacitance and thermal design provide smooth motor control without requiring a separate heatsink.
The four channels are each rated for 60 A for 60 seconds and 85 A for 10-second peaks. The controller accepts 3S to 8S LiPo power, supports bidirectional DShot300 and DShot600 with KISS telemetry, and can drive propellers up to 11 in under the stated airflow conditions.
Specifications:
| Rated Current | 60 A × 4 for 60 sec |
|---|---|
| Peak Current | 85 A × 4 for 10 sec |
| Input Voltage | 3S to 8S LiPo |
| Weight | 17.58 g; 22 g with brackets |
| Mounting Patterns | 39.5 × 16.0 mm; 30.5 × 30.5 mm; 20 × 20 mm |
| Dimensions | 50 × 42 mm |
