RFDesign 900MHz Antenna Series
RFDesign's 900MHz antenna range provides lightweight options for airborne UAV telemetry and fixed or ground-station installations. All three antennas cover 902 to 928 MHz, use 50-ohm RP-SMA connections and have a stated VSWR below 1.5.

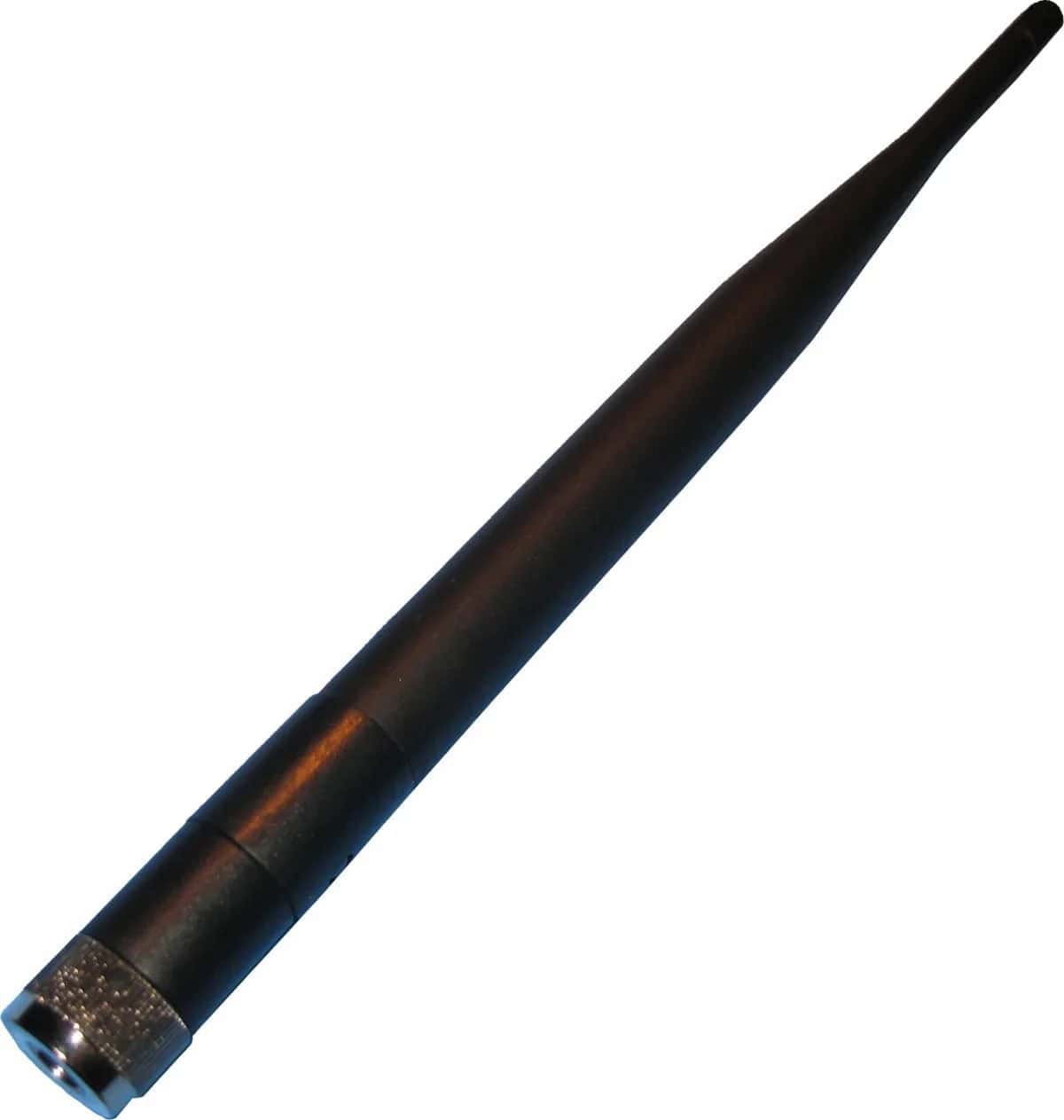

The straight and right-angle 2.1 dBi monopoles are compact options for airborne platforms, with the right-angle version extending parallel to the mounting surface. The larger 3 dBi dipole provides additional gain and is better suited to ground stations or fixed installations.
| Model | Format | Gain | Dimensions | Weight | Connector |
| 2dBi Monopole | Straight | 2.1 dBi | 51 x 8 mm | 10 g | RP-SMA |
| 2dBi Monopole | Right angle | 2.1 dBi | 52.2 x 10.5 mm | 7.4 g | RP-SMA |
| 3dBi Dipole | Dipole | 3 dBi | 175 + 23 x 12 mm | 28 g | RP-SMA |
