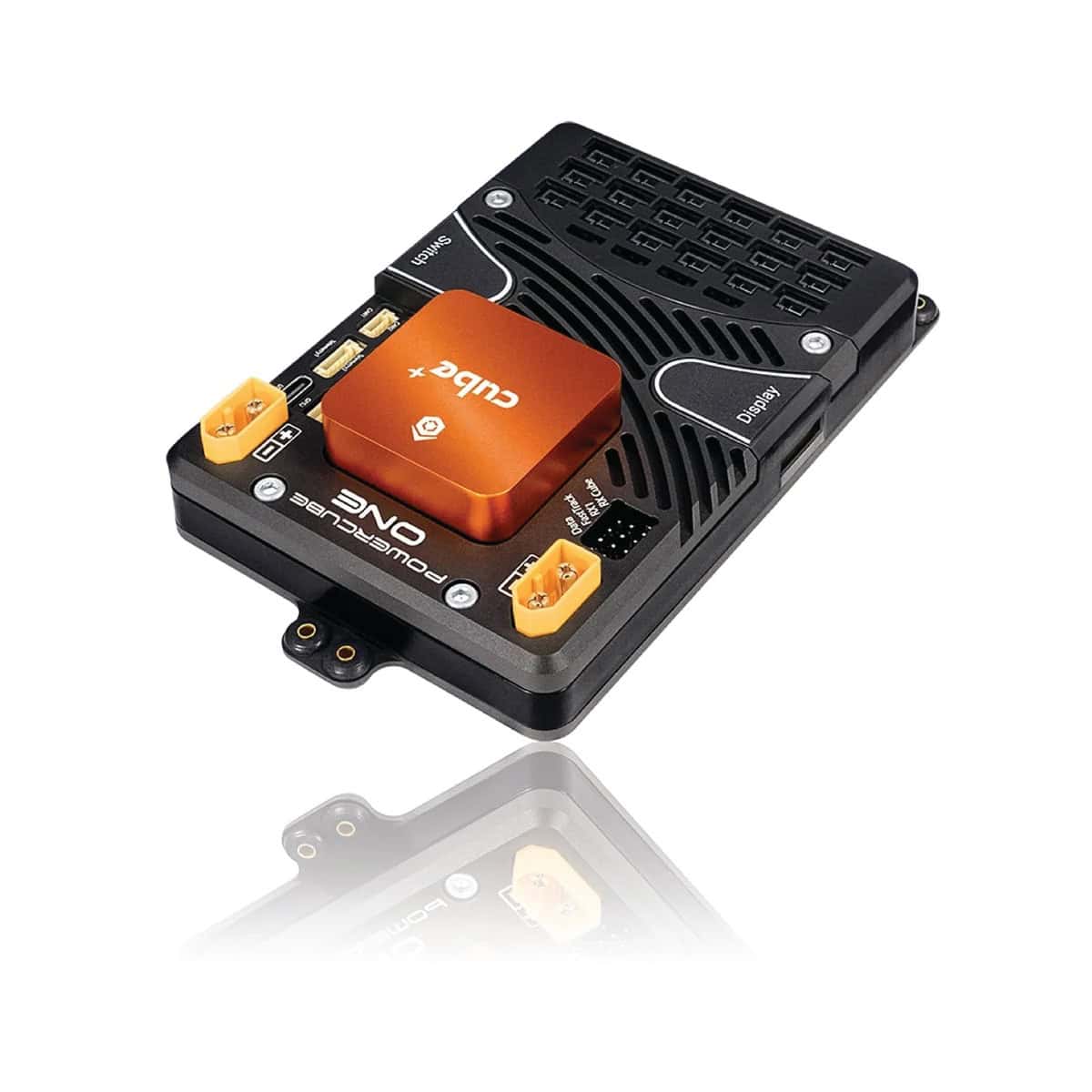

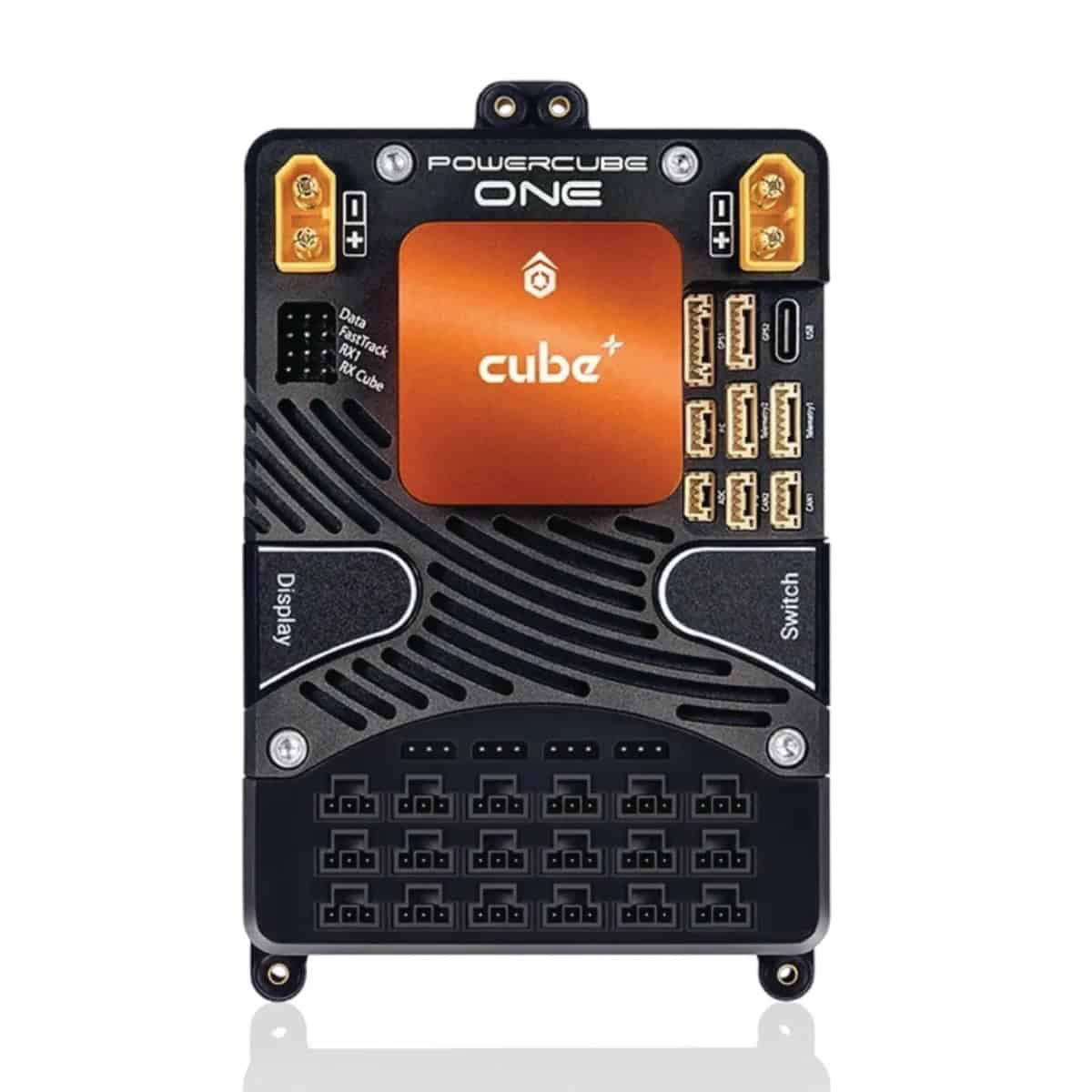

Powerbox UAV Systems' PowerCube One Carrier Board is an all-in-one Cube-compatible carrier board with dual power supply. The 6 to 35 V input is passed to the other servo sockets with minimal stated loss. The entire power supply system is of redundant construction throughout.
Two XT60 inputs feed a fully redundant power architecture for the Cube, peripherals, radio equipment, and up to 24 high-power servos. CAN and MAVLink connections carry battery and optional navigation data to the autopilot and ground system, and the servo outputs can be assigned individually. The system supports 26 channels, with SBUS limited to 16, and provides 22 assignable servo outputs, automatic servo matching, and two independent six-servo door sequencers.
A receiver-controlled bypass can route around the Pixhawk control system and use the integrated iGyro functions. Setup and system data are shown on a sunlight-readable 2.4 in color display.
Specifications:
| Input Voltage Range | 6 to 35 V |
|---|---|
| Maximum Current | 40 A for 10 sec |
| Continuous Current | 20 A |
| Regulated Output | 8 V at 8 A continuous |
| Flight Controller Supply | 5 V / 3 A |
| Channel Count | 26; SBUS limited to 16 |
| Assignable Servo Outputs | 22 |
| Selectable Servo Frame Rate | 10, 12, 14, 16, or 18 ms |
| Display Size | 2.4 in |
