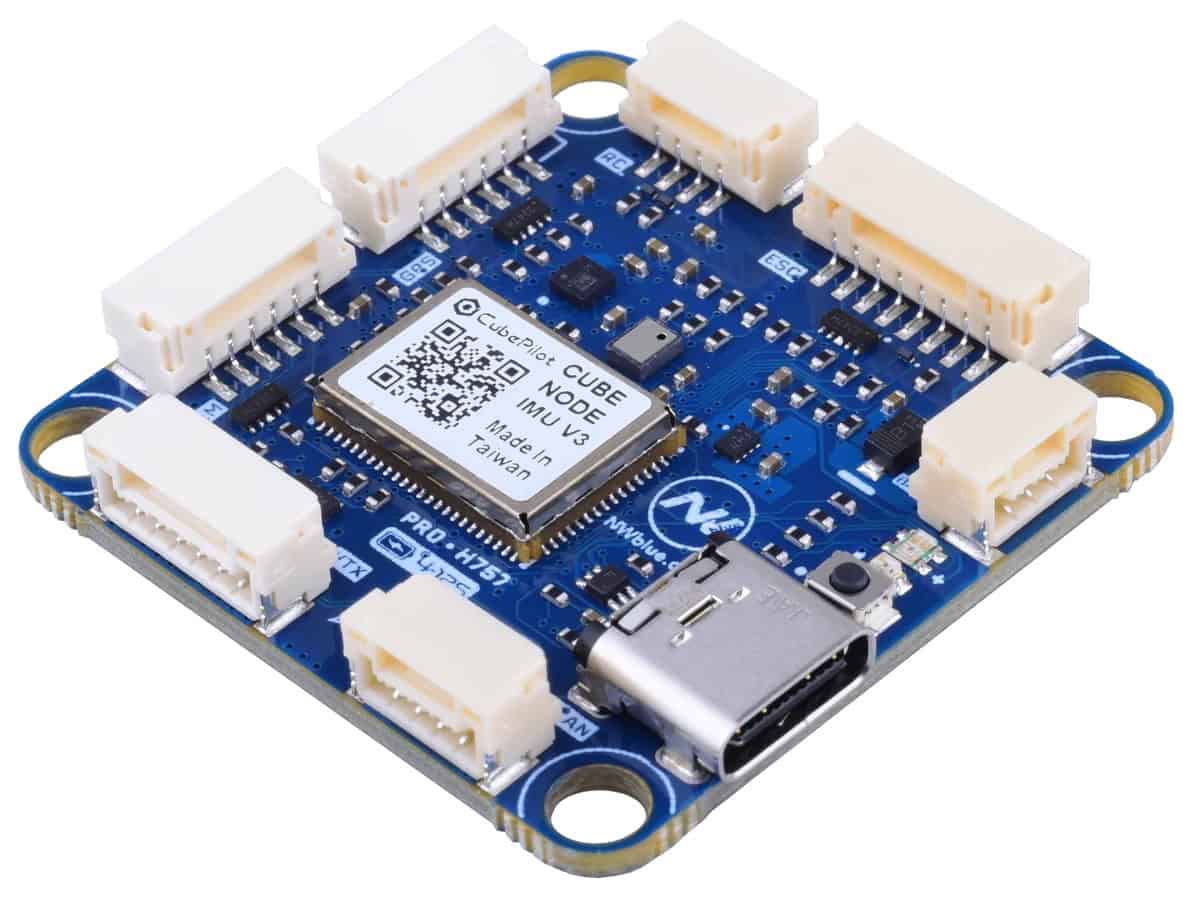

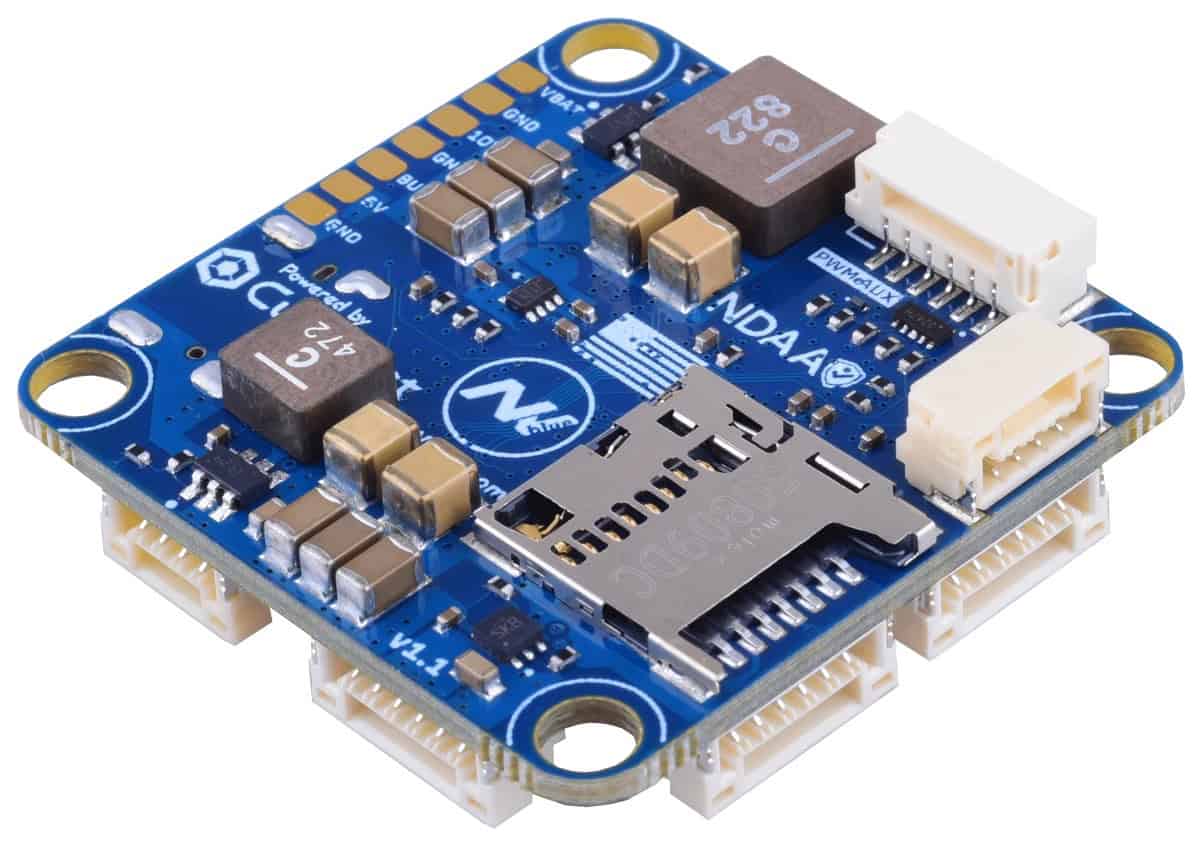

NW Blue PRO-H757 Autopilot
NW Blue's PRO-H757 Autopilot is a U.S.-manufactured NDAA-compliant and Blue UAS Framework-listed professional flight controller with automotive-grade components. The autopilot integrates a precision IMU subsystem, magnetometer, barometer, and high-speed data interfaces, and also includes onboard microSD logging, USB-C connectivity for configuration/firmware updates, and CAN bus connectivity for DroneCAN devices.
The flight controller incorporates a dual-core STM32H757 processor, an ARM Cortex-M7 architecture, a barometer, a magnetic compass, and onboard microSD logging. It supports ArduPilot, PX4, Betaflight, and INAV. Integration interfaces include CAN connectivity, USB-C, UART, I²C, SPI, DroneCAN, and PWM control.
Specifications:
| Footprint | 36 × 36 mm |
|---|---|
| PWM Outputs | Up to 9 |
| Input Voltage | 4S to 12S |
| 5 V Output | 3.5 A |
| 10 V / 12 V Output | 3.5 A |
