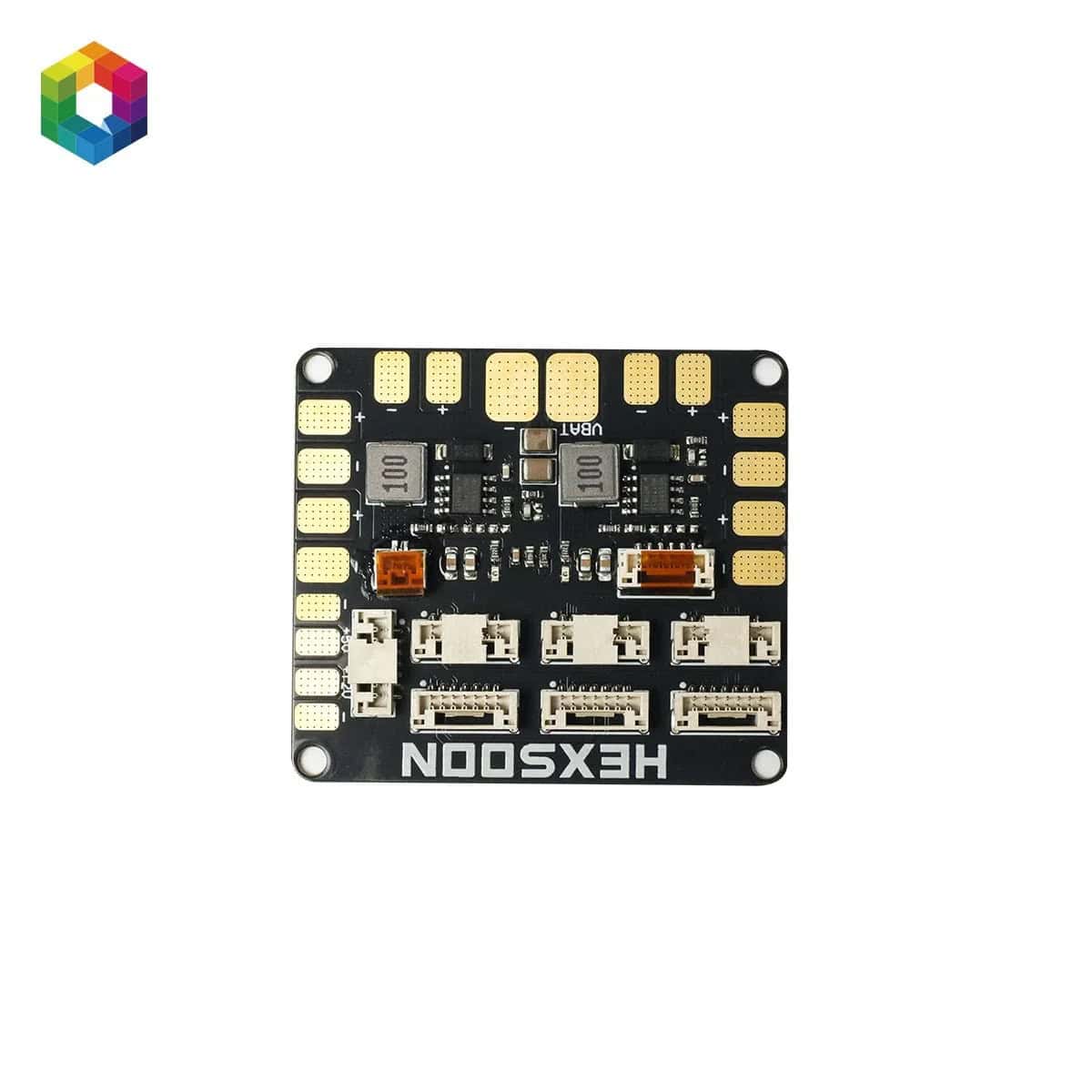

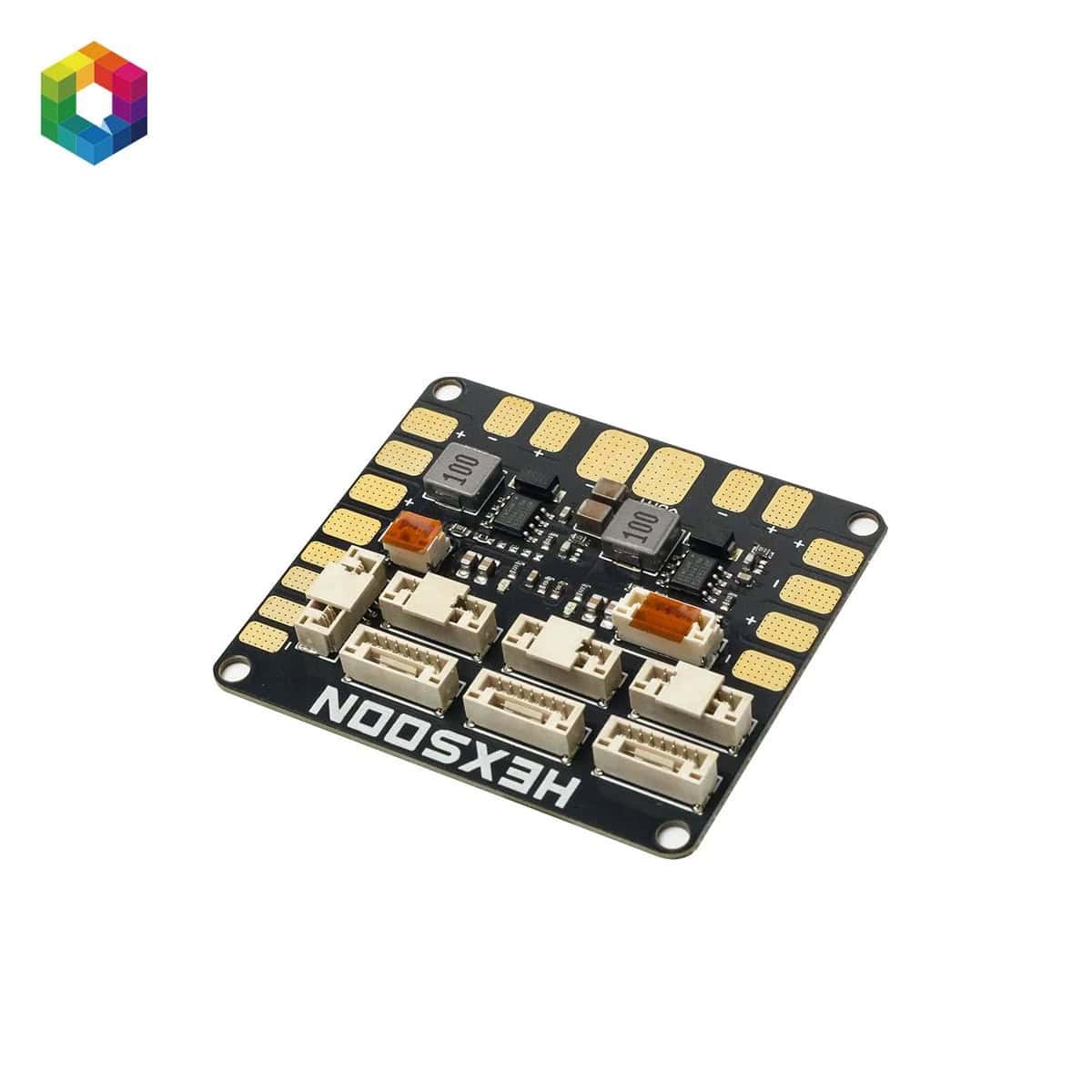

Hexsoon Power Distribution Board
Hexsoon's Power Distribution Board is a power distribution board for UAV electrical integration.
The board distributes LiPo power to six ESCs and provides regulated 5.3 V and 12 V outputs for flight controllers, receivers, servos, cameras, video transmitters, LEDs, and other onboard electronics. Its four-layer PCB uses 4 oz copper and six pairs of ESC solder tabs for H- or X-type frames. Separate 5 V and 12 V indicators show output status, and both regulator circuits are short-circuit tolerant within the stated duty limits. The module incorporates an integrated BEC.
The module accepts 9 to 26 V (3S to 6S). The module is rated for 40 A continuous and 50 A for 10 sec/min peak current.
Specifications:
| Input Voltage Range | 9 to 26 V (3S to 6S) |
|---|---|
| ESC Output Count | 6 |
| Continuous ESC Current | 40 A |
| Peak ESC Current | 50 A for 10 sec/min |
| 5 V BEC Output | 5.3 ± 0.1 V at 3 A |
| 5 V BEC Output Ripple | 40 mV at 16 V input and 2 A load |
| 12 V BEC Output | 12.0 ± 0.3 V at 2 A |
| Dimensions | 57.2 × 50.5 × 5.2 mm |
| Mounting Pattern | 52 × 45.3 mm |
| Weight | 14.5 g |
