Hargrave Technologies' NDAA-compliant microFLUX family provides configurable power conversion and monitoring for UAV avionics, servos, AI processors and edge-computing systems. All models accept 15 to 60 V input and support up to 22 A maximum input current.
Two-channel variants reduce cable, enclosure and system overhead, while four-channel models support a larger set of independently managed loads. LP and MP models provide enclosed integration formats, while the lighter LPi and MPi boards are intended for installation close to the connected equipment where space, airflow and cable mass are important.
Depending on the variant, outputs can be ordered in low- or high-voltage configurations or digitally selected between 3.3 and 28 V. DroneCAN connectivity provides configuration and power-system telemetry.
| Model | Channels / format | Output configuration | Dimensions | Weight |
| microFLUX 2 LP | 2; enclosed | 2 low, 2 high, or one of each | 21 x 70.4 x 56.85 mm | 83 g |
| microFLUX 2 MP | 2; enclosed | 32 selectable levels, 3.3-28 V | 21 x 103 x 56.85 mm | 118 g |

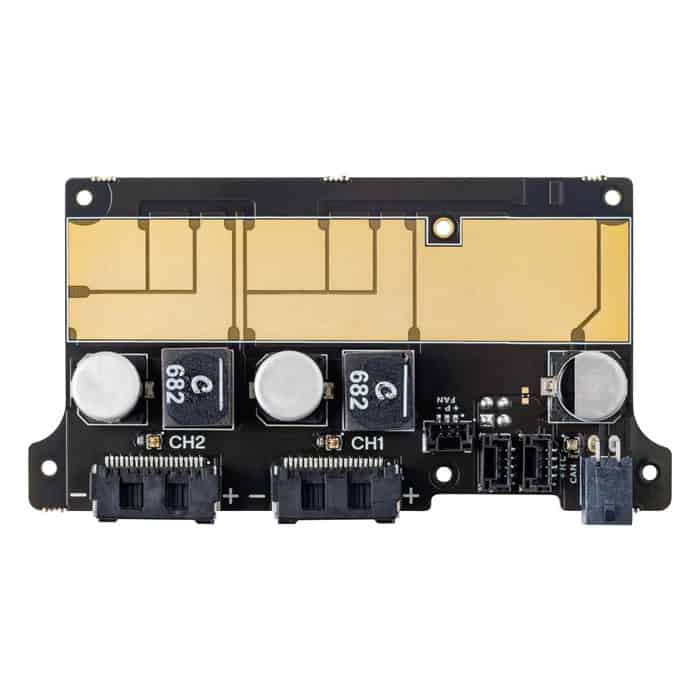

| microFLUX 2 MPi | 2; bare board | Two high-current outputs | 17.23 x 96.4 x 50 mm | 55 g |
| microFLUX 4 LP | 4; enclosed | 4 low, 4 high, or two of each | 21 x 103 x 56.85 mm | 113 g |

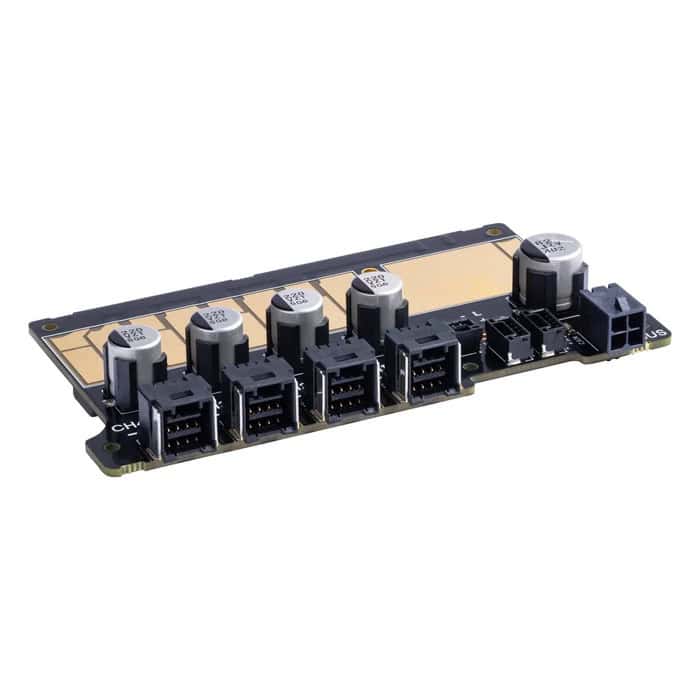

| microFLUX 4 LPi | 4; bare board | Software-selectable, 3.3-28 V | 15.2 x 96.4 x 52 mm | 42 g |
