Fat Shark (Unusual Machines) Aura Analog FPV VTX
Unusual Machines' NDAA-compliant Fat Shark Aura Analog FPV VTX is a Blue UAS Framework-listed 5.8 GHz analog FPV transmitter with up to 1 W output.
The transmitter provides eight Raceband channels and uses the Tramp protocol for remote configuration. Its integration kit includes an MMCX-to-SMA pigtail plus flight-controller, camera, and unpinned wiring harnesses. The unit measures 37 × 29 × 9 mm and weighs 13 g.
Specifications:
| Operating Frequency | 5.8 GHz |
|---|---|
| Selectable Output Power | 1, 25, 50, 100, 200, 500, or 1,000 mW |
| Input Voltage | 7 to 36 V |
| Output Voltage | 5 V |
| Power Draw | 1.2 A at 9 V |
| Channel Count | 8 |
| Mounting Pattern | 20 × 20 mm, M2 |

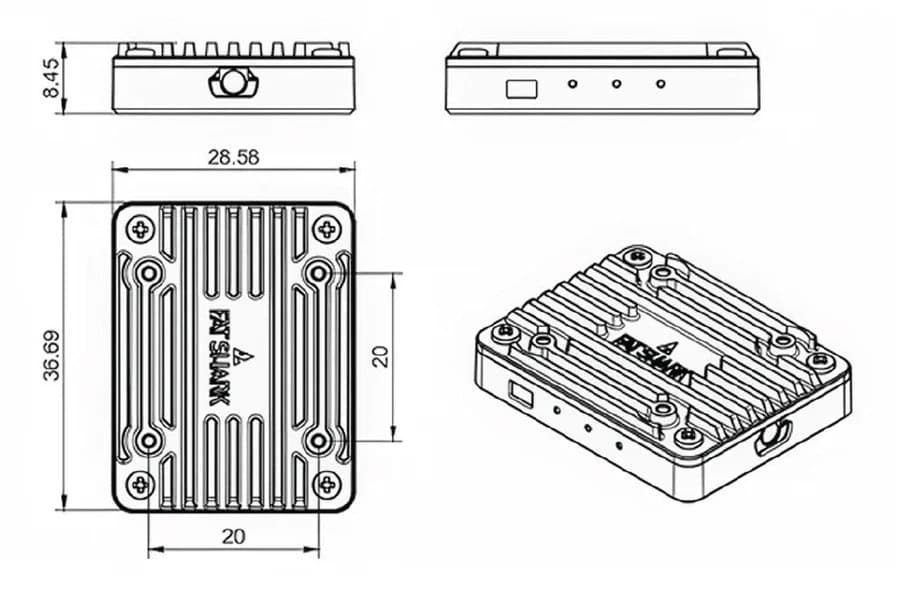

| Dimensions | 37 × 29 × 9 mm |
| Weight | 13 g |
