EchoUAS UBEC 60V Input 1CH Adjustable Output
EchoUAS' UBEC 60V Input 1CH Adjustable Output is a single-channel power converter for UAV electrical systems. It accepts up to 60 V input and provides an adjustable output range of 5 to 20 V or 20 to 28 V.
The channel delivers up to 240 W and 20 A at a 12 V output. A removable heatsink and cover are included, and the output voltage is set through a small potentiometer.

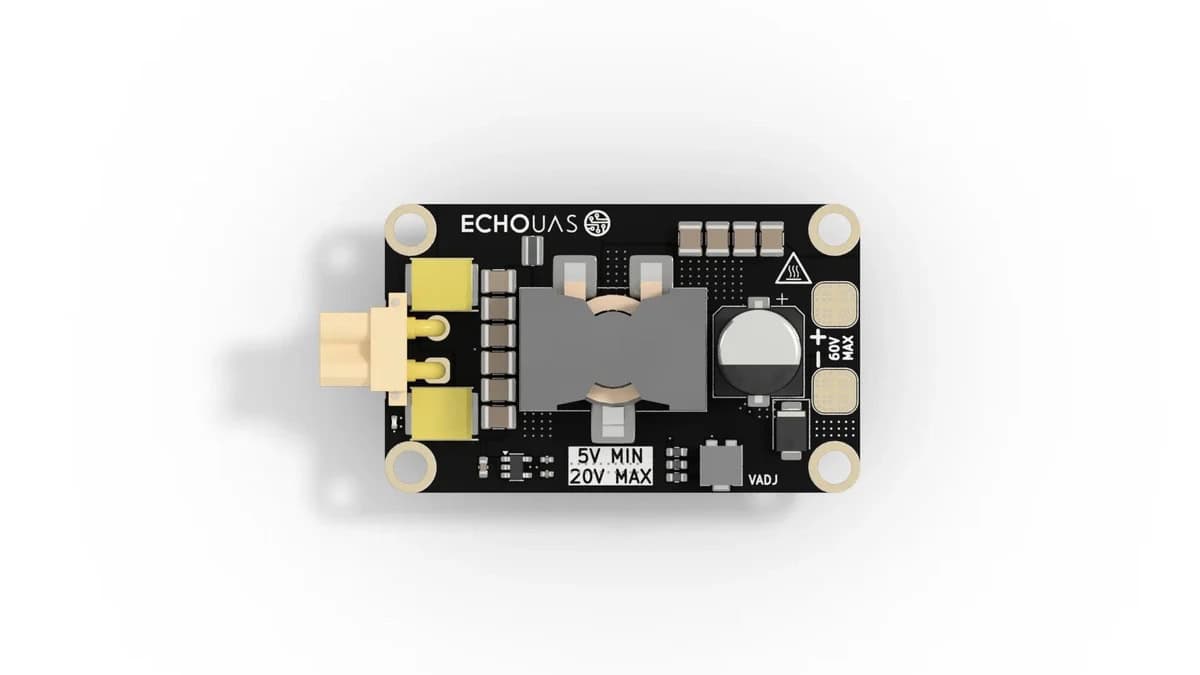

The board uses an XT60-compatible input and an XT30 output. It incorporates input-surge protection, reaches up to 96 percent efficiency, and can sustain full load for one minute without airflow when operated from a 12S LiPo supply.
Specifications:
| Maximum Output Power | 240 W |
|---|---|
| Maximum Output Current | 20 A at 12 V |
| Selectable Output Voltage Range | 5 to 20 V or 20 to 28 V |
| Maximum Input Voltage | 60 V (14S) |
| Maximum Efficiency | 96% |
| Dimensions | 56 × 34 × 12 mm |
| Full-Load Duration Without Airflow | 1 min at 12S |
