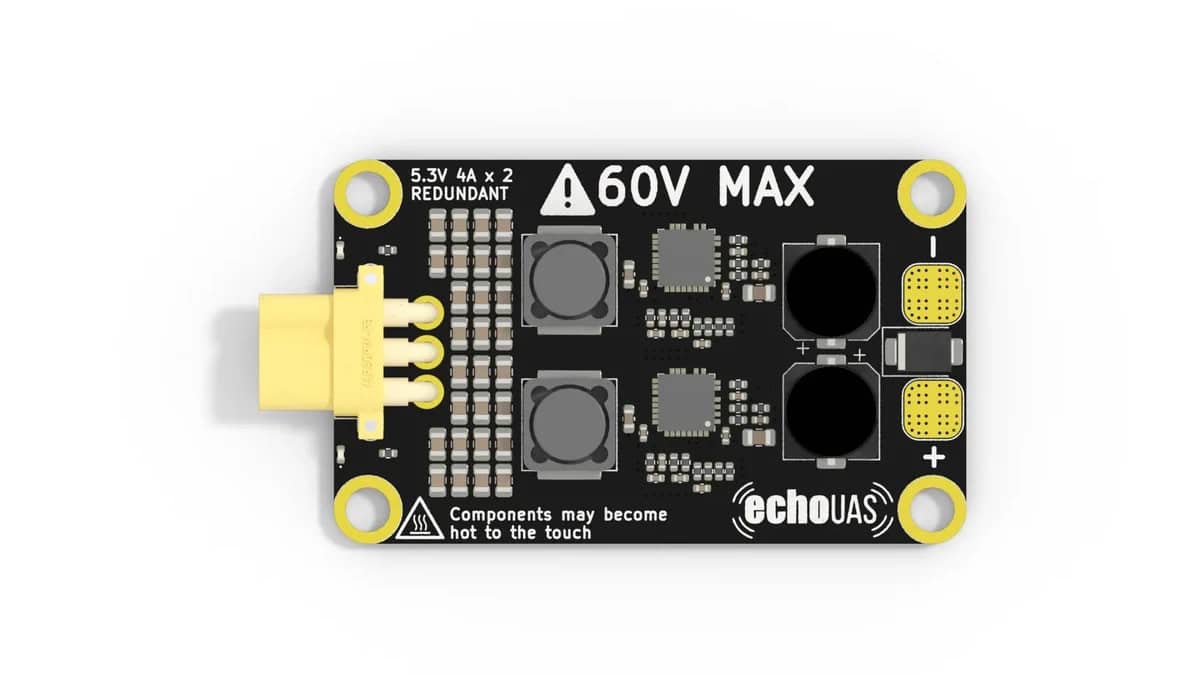

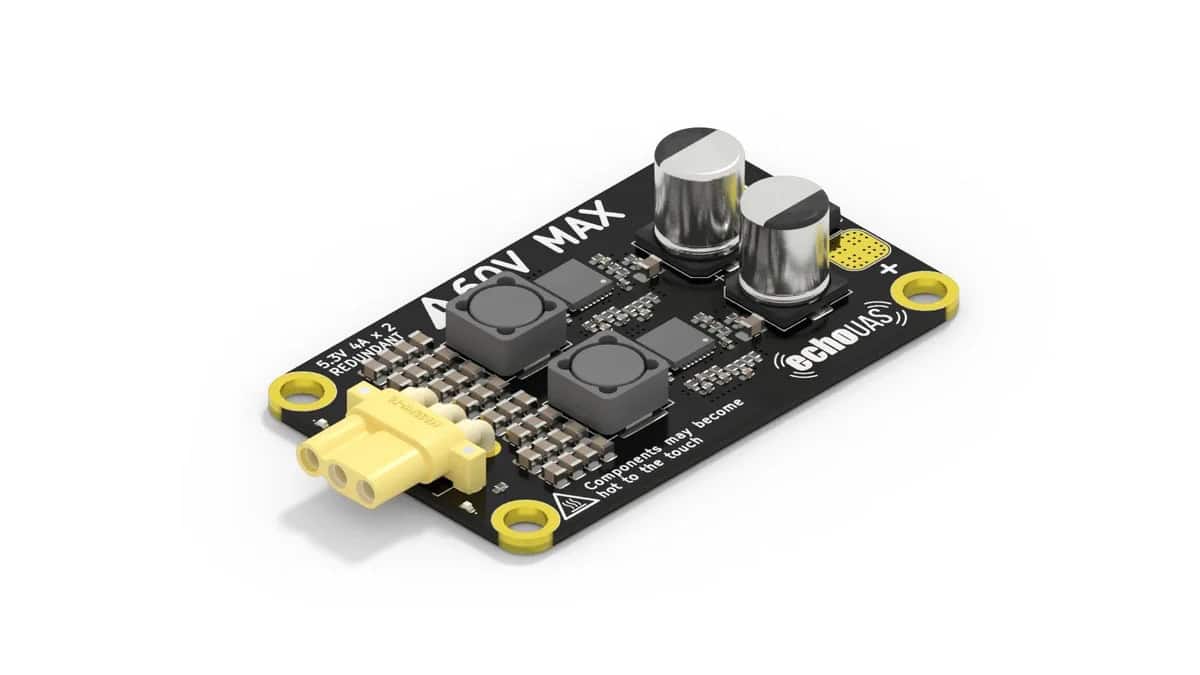

EchoUAS Power Management Board 60V 2CH 2x 5.3V
EchoUAS' Power Management Board 60V 2CH 2x 5.3V is a power-management component for UAV electrical systems. Two independent 5.3 V channels provide redundant power for Cube flight controllers and attached peripherals.
The board includes input spike suppression, active current limiting, overtemperature and short-circuit protection, status LEDs, and an MR30 output connection. The module is rated for 4.5 A per channel continuous current. The supplied cover has removable tabs for different mounting arrangements.
Specifications:
| Maximum Conversion Power | 500+ W |
|---|---|
| Channel Count | 2 |
| Output Voltage | 5.3 V per channel |
| Continuous Output Current | 4.5 A per channel |
| Active Current Limit | 5 A |
| Dimensions | 56 × 34 × 12 mm |
| Output Ripple | <2% (<0.1 V) |
