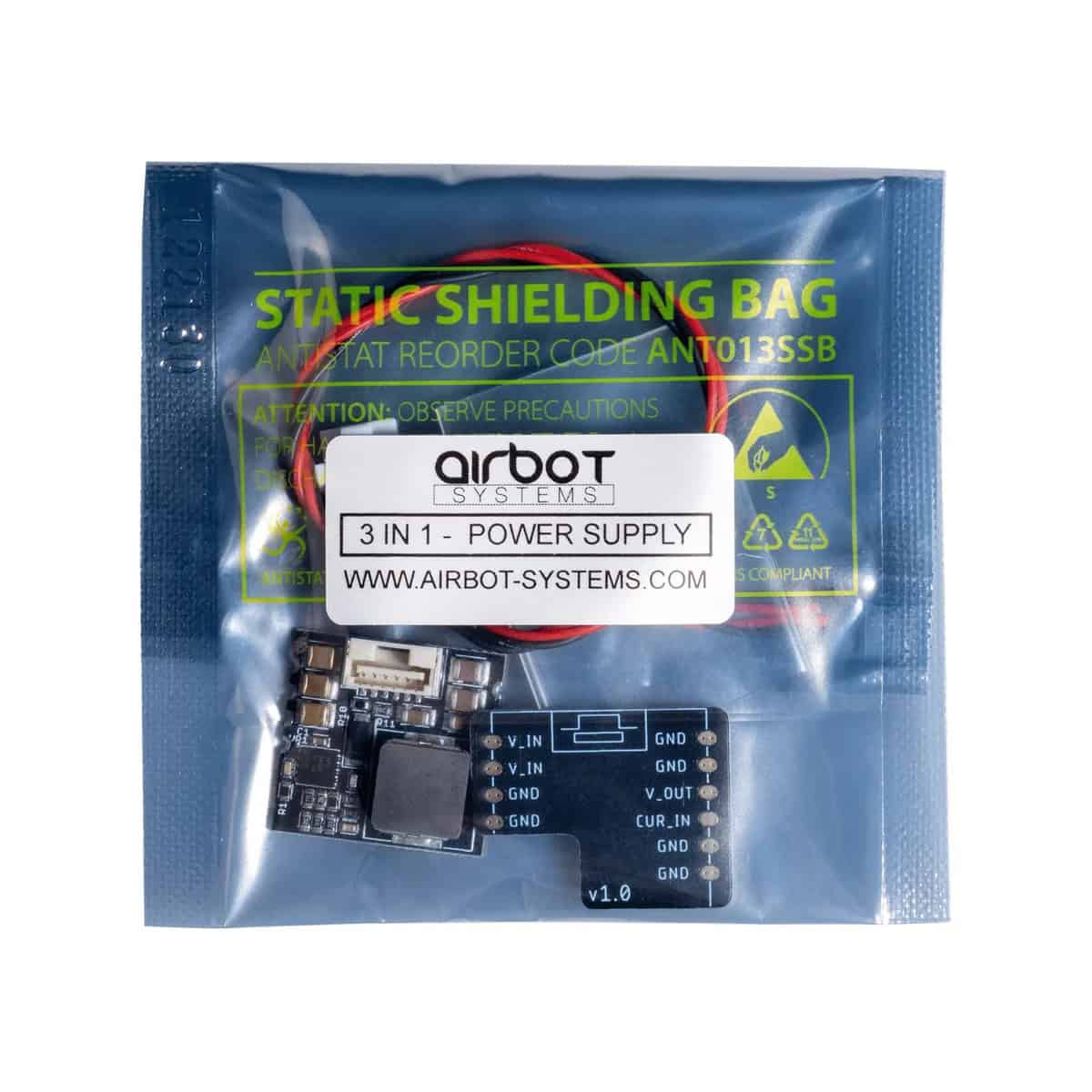

Airbot 3-in-1 Switching Power Supply
Airbot's 3-in-1 Switching Power Supply is a compact power module for drones, robots, and other electronic systems, providing a user-selectable output of 5 V, 5.3 V, or 12 V. It accepts inputs up to 50.4 V or 12S and delivers 3 A continuously, with tolerance for momentary peaks of 4 A.

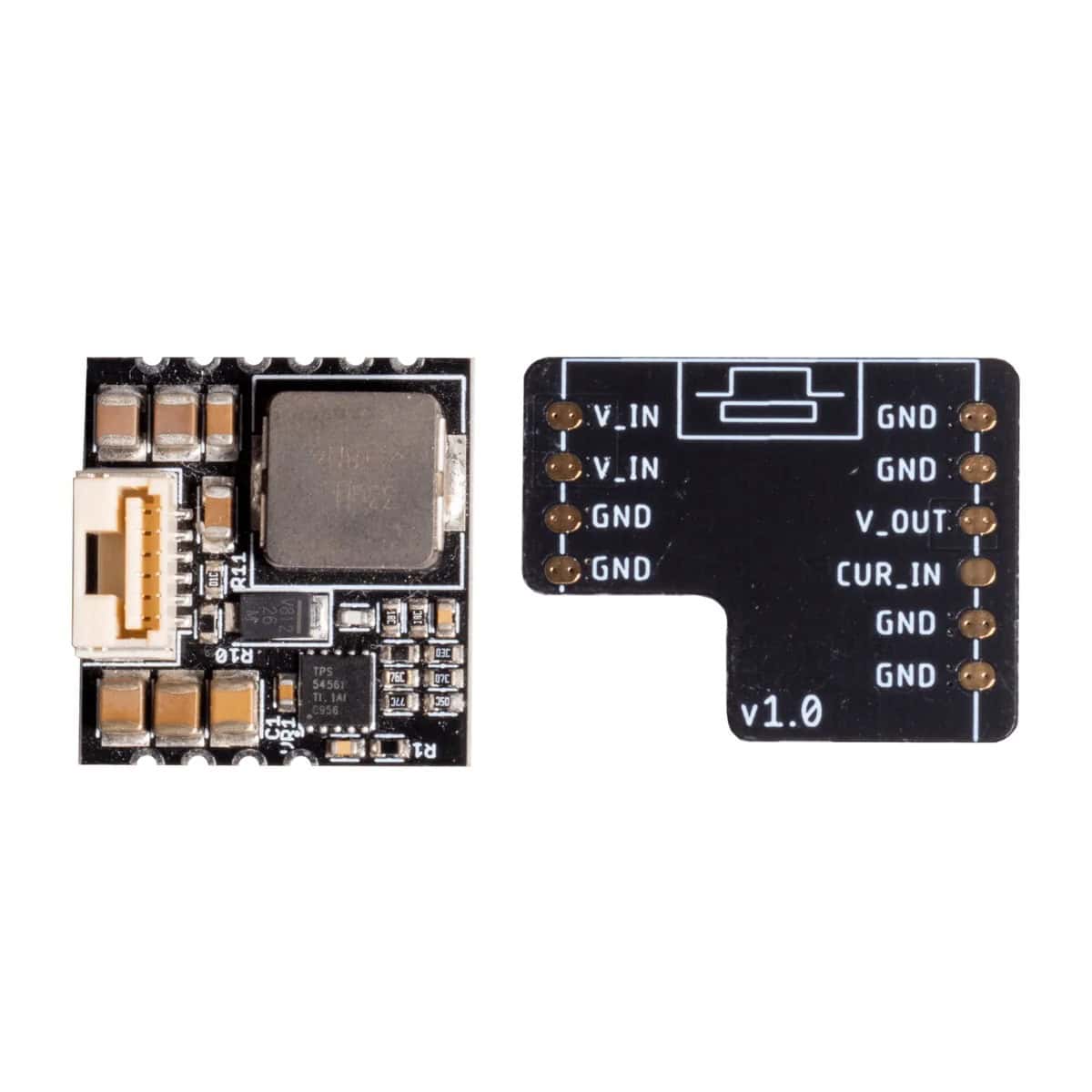

The module can be soldered directly into a stacked motherboard assembly or connected through the supplied auxiliary PCB, allowing it to be used with different installation layouts. An onboard voltage divider provides a measurement point for the input supply.
| Maximum Input Voltage | 50.4 V (12S) |
|---|---|
| Selectable Output Voltage | 5 V, 5.3 V, or 12 V |
| Continuous Output Current | 3 A |
| Peak Output Current | 4 A |
| Module Dimensions | 24 × 23 × 6.15 mm |
| Assembled Dimensions | 29 × 23 × 6.15 mm |
