North-Seeking Sensors
Micro-Magic's north-seeking sensors utilize advanced FOG and MEMS-based inertial sensing technologies to provide accurate determination of true north in environments where magnetic field issues make traditional magnetic compasses unusable. They are ideal for USV and UUV navigation and orientation, as well as alignment and direction-finding for equipment such as antenna platforms.
Specifications:

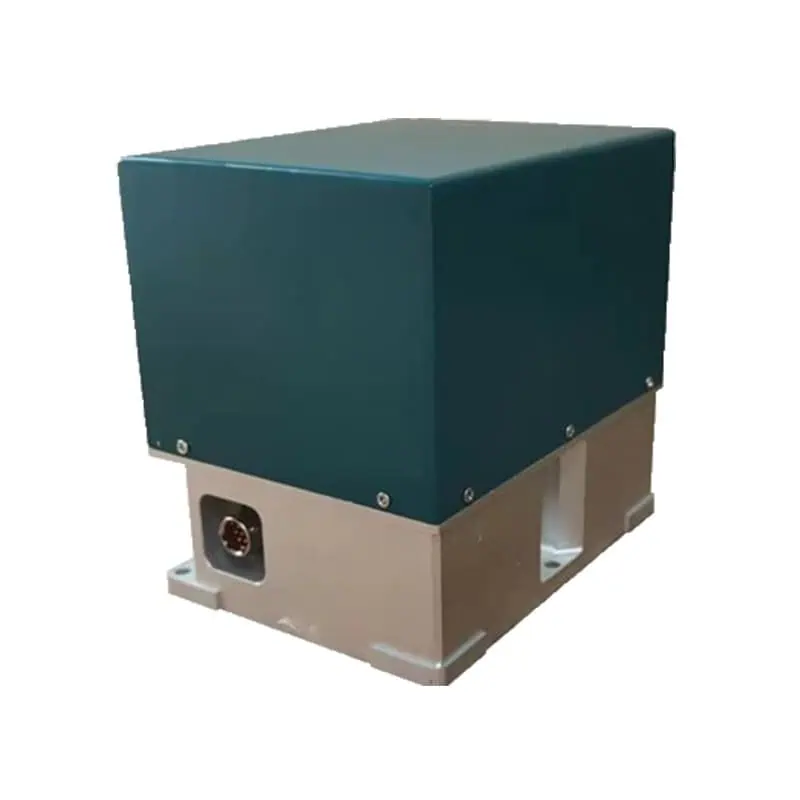

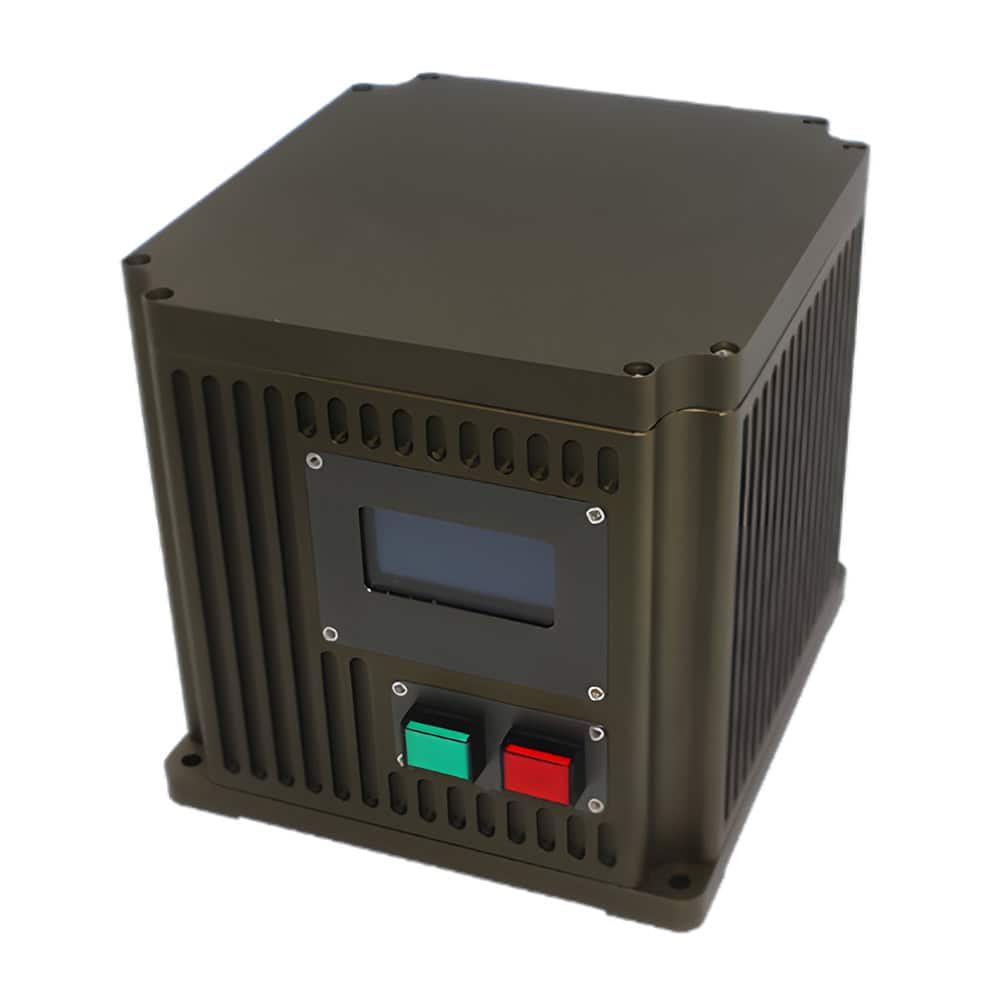

| Â | NF1000 | NF2000-A/B | NF3000-A/B/C |
| Dimensions: | Ф31.8 x 85 mm | 200 x 100 x 90 mm | 248 x 248 x 180 mm |
| Weight: | 400g | 2 kg | 20/18/15 kg |
| North-Finding Accuracy: | 1o sec lat | 1/0.5o sec lat | 0.02/0.06/0.1o sec lat |
| Heading Accuracy: | 0.5o/hr | 0.2o/hr | 0.01o/hr |
| Pitch/Roll Accuracy: | 0.2o/hr | 0.1/0.09o/hr | 0.02/0.06/0.1o/hr |
| Position Accuracy: | 0.8/1.2 nm/hr | 0.8/1.2/1.5 nm/hr |
