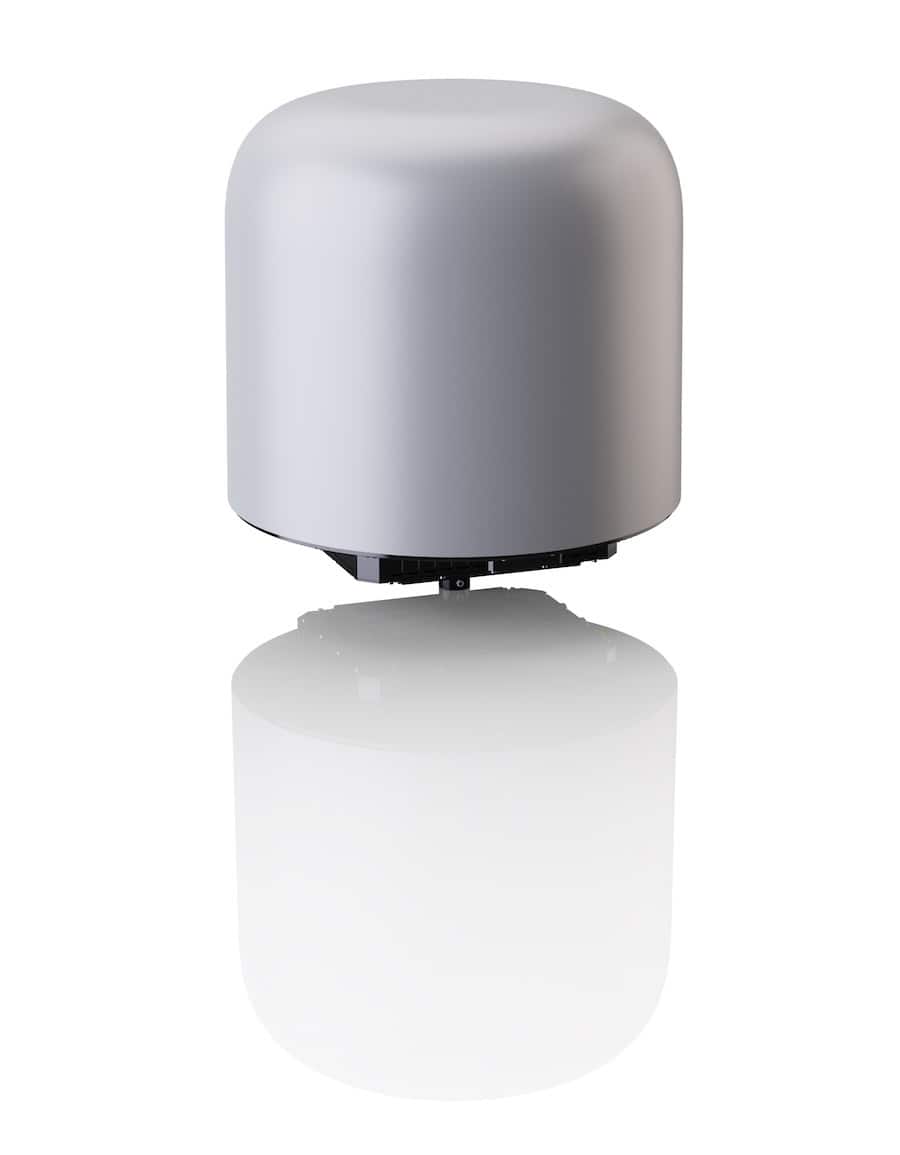

The DF10 Max is a fixed-installation drone detection, direction-finding, and identification system designed to provide continuous monitoring of low-altitude airspace in complex electromagnetic environments. Combining passive RF detection with full-band direction-finding capabilities, the system detects, identifies, and tracks both cooperative and non-cooperative UAVs without transmitting electromagnetic signals. Designed for mission-critical security applications, the DF10 Max supports real-time airspace awareness for critical infrastructure, government facilities, transportation hubs, industrial sites, and other protected locations.
Utilizing CRPC 2.0, Drone ID, and RID decoding technologies, the DF10 Max can distinguish individual drones of the same brand and model while assigning unique airframe identities for enhanced target classification. The system supports both single-station analytical positioning and multi-station AOA/TDOA networked positioning, enabling accurate localization and tracking of commercial drones, FPV platforms, and custom-built UAVs. Multi-array direction-finding antennas and AI-assisted processing provide reliable bearing determination in challenging RF conditions, while whitelist and blacklist management functions streamline the handling of authorized and unauthorized aircraft. Its integrated architecture delivers comprehensive drone detection and direction-finding capabilities within a single deployable solution.
Spefications:
| Dimensions: |
Detection Antenna: Ø550 mm × H500 mm Compute Enclosure: 500 mm × 450 mm × 240 mm |
| Weight: |
Detection Antenna: 20 kg Compute Enclosure: 40 kg |
| Detection Bands: | 100 MHz – 8 GHz |
| Detection Distance: | 0 – 8 km |
| Direction-Finding Bands: | 100 MHz – 6 GHz |
| Direction-Finding Distance: | 0 – 5 km |
| Direction-Finding Accuracy: | ≤ 5° (RMS) |
| Coverage: | 360° horizontal |
| Detection Quantity: | ≥ 35 drones simultaneously |
