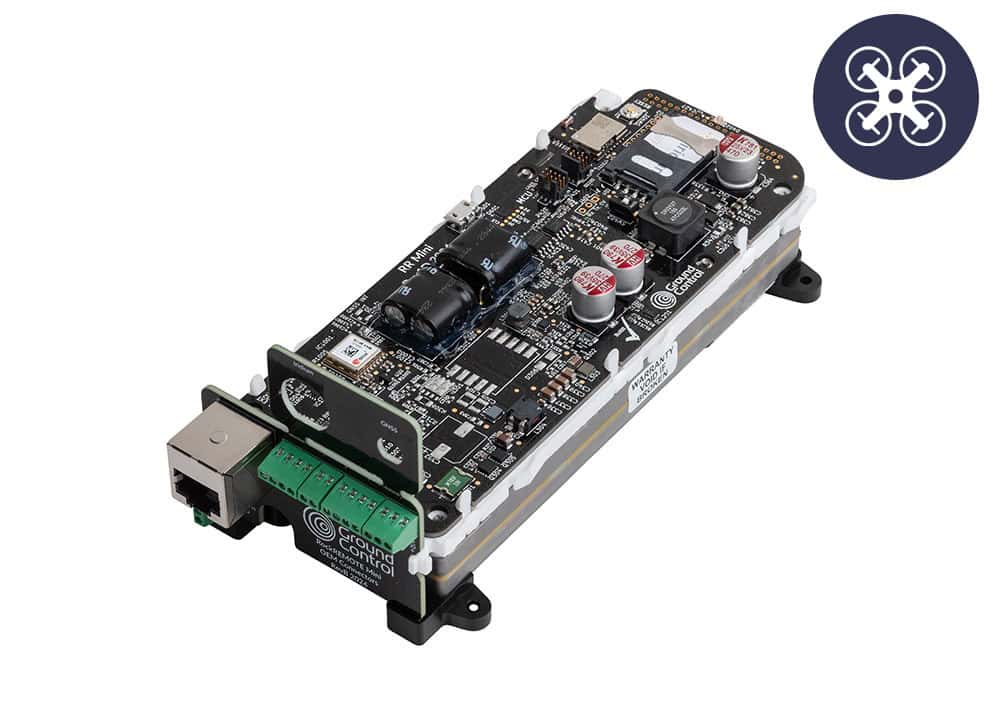

RockREMOTE UAV OEM provides UAV builders and operators with a predictable, always available global satellite link for BVLOS missions. It combines efficient message based telemetry for long endurance operations with IP connectivity to support continuous C2 where an uninterrupted command link is required.
The solution gives designers the flexibility to tailor their C2 and telemetry architecture to the mission, supporting applications ranging from industrial inspection, delivery, and environmental monitoring to higher end systems operating in controlled airspace or government programmes.
Optimised for small UAV platforms and compact airframes, RockREMOTE UAV OEM delivers a low SWaP solution for tightly constrained installations. Its compact form factor and low power operation support integration within enclosed fuselages and a wide range of UAV airframe designs.
Specifications:
| Dimensions: | 175 × 60 × 37 mm |
| Weight: | 287 g |
| Operating Temperature: | -40C to +70C, <95% RH |
| Power Consumption: |
<10 mW (sleep @ 12 V) 30 mW (sleep @ 24 V) <250 mW (idle / Rx) <1.66 A @ 12 V (peak) <833 mA @ 24 V (peak) |
| Input Voltage: | 10-30 V DC |
| Connectivity: |
Iridium Certus 100: IP (22/88 Kbps) Iridium Messaging Transport (100 KB per message) BLE 5.0 |
| Interfaces: |
30-way multiway pin header (power, serial, Ethernet, GPIO) Serial: RS-232 / RS-4xx, logic-level UART on PCB Digital I/O: 2-in / 2-out GPIO GNSS antenna: U.FL Certus 100 antenna: MMCX Standard 2FF SIM card slot |
