12V Supplementary Alternator Kit
Flygas provides a kit that enables UAV OEMs and systems integrators to install additional 12V alternators on board their platforms in order to meet demands for onboard power. Designed as standard for the Rotax 912-914 engines, the kit offer a lighter, more compact and cost-effective alternative to official solutions.
The kit is provided ready-to-install with no modification required, and can also be tailored towards unique customer requirements and specific engine models. The assembly is mounted directly on the engine shaft, with no need for belt-driving systems.
Power output options include:
- 180W, 16 Ah
- 300W, 24 Ah
- 350W, 28 Ah

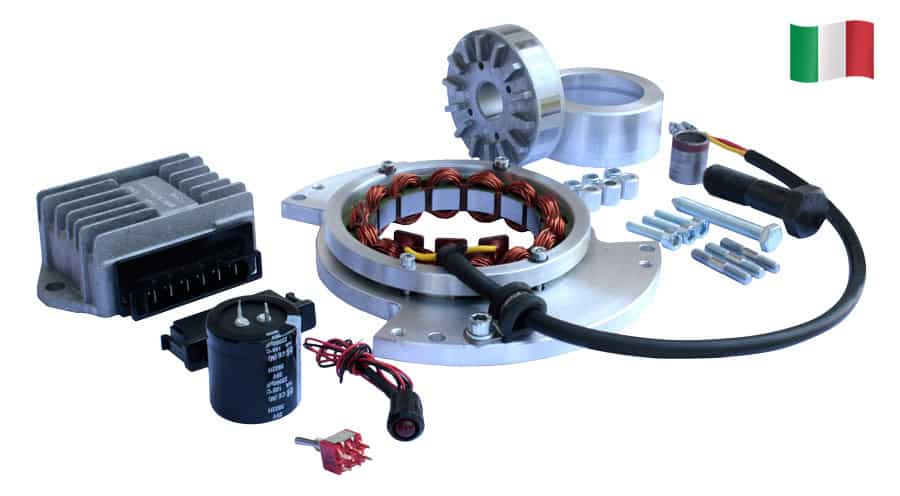

Kit components include:
- Ducati Rotor
- Ducati Stator
- Ducati Rectifier
- Stator plate
- Centering for rotor bushing
- Flange on stator
- 3x spacers for plastic cover
- Tube to center
- Nuts and bolts
