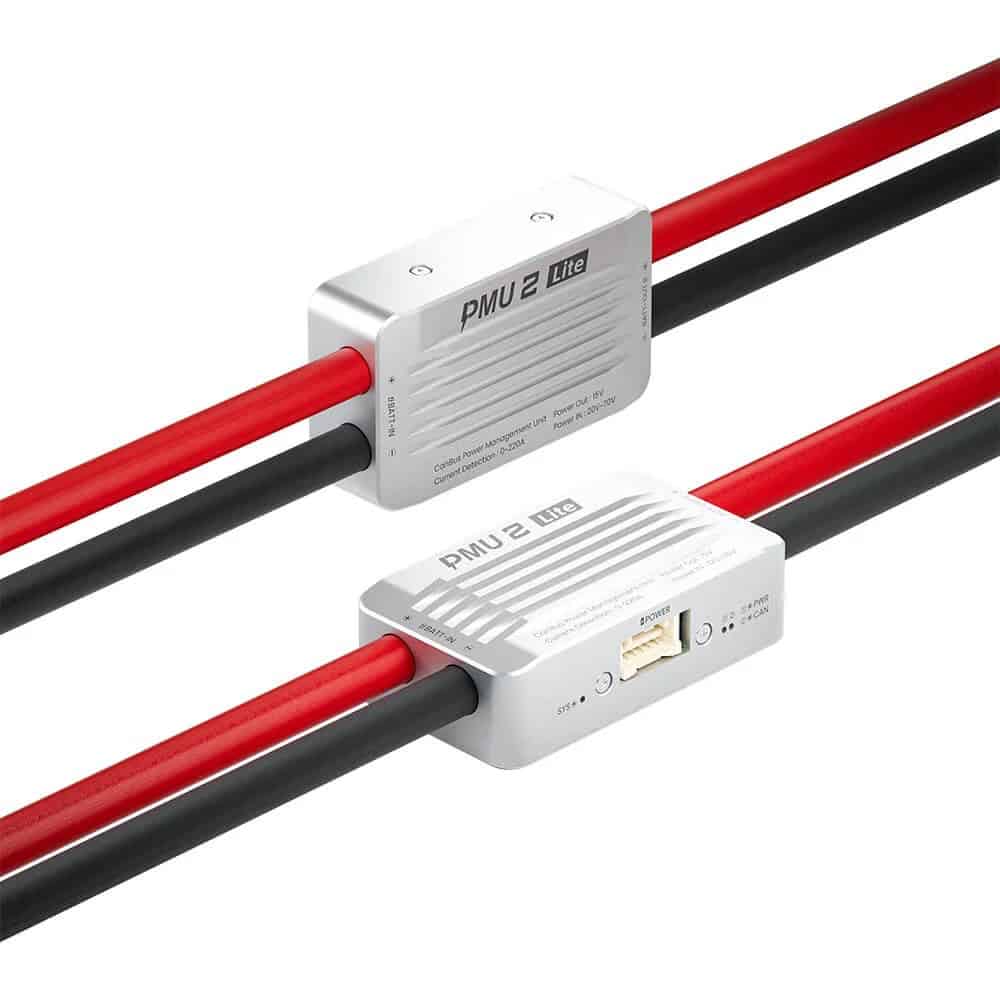

CUAV PMU 2 Lite
The CUAV PMU 2 Lite is an advanced power management unit for drones and robotics, offering instantaneous lossless current measurement of up to 220A in a compact and lightweight package. Supporting a wide input voltage range of 20 to 70V, it is compatible with 16S drone batteries, and provides either 15V or 5V stable output voltage.
The robust unit is enclosed within an aluminum alloy shell, and incorporates heat-conducting protrusions and conductive silicone for effective thermal management. It utilizes DroneCAN and is compatible with industry-standard flight controller platforms such as ArduPilot and PX4.
Specifications:
| Dimensions: | 57.25 x 32.25 x 17.5 mm |
| Weight: | 222g (incl. cables) |
| Input Voltage: | 5V version: 12V ~ 70V 15V version: 20V ~ 70V |
| Instantaneous Current: | 220A (120 sec) |
| Continuous Current: | 130A |
| Voltage Output: | 15V version: 15V, 6A 5V version: 5.2V, 7A |
| Voltage Accuracy: | ±0.05V |
| Current Accuracy: | ±0.1A |
