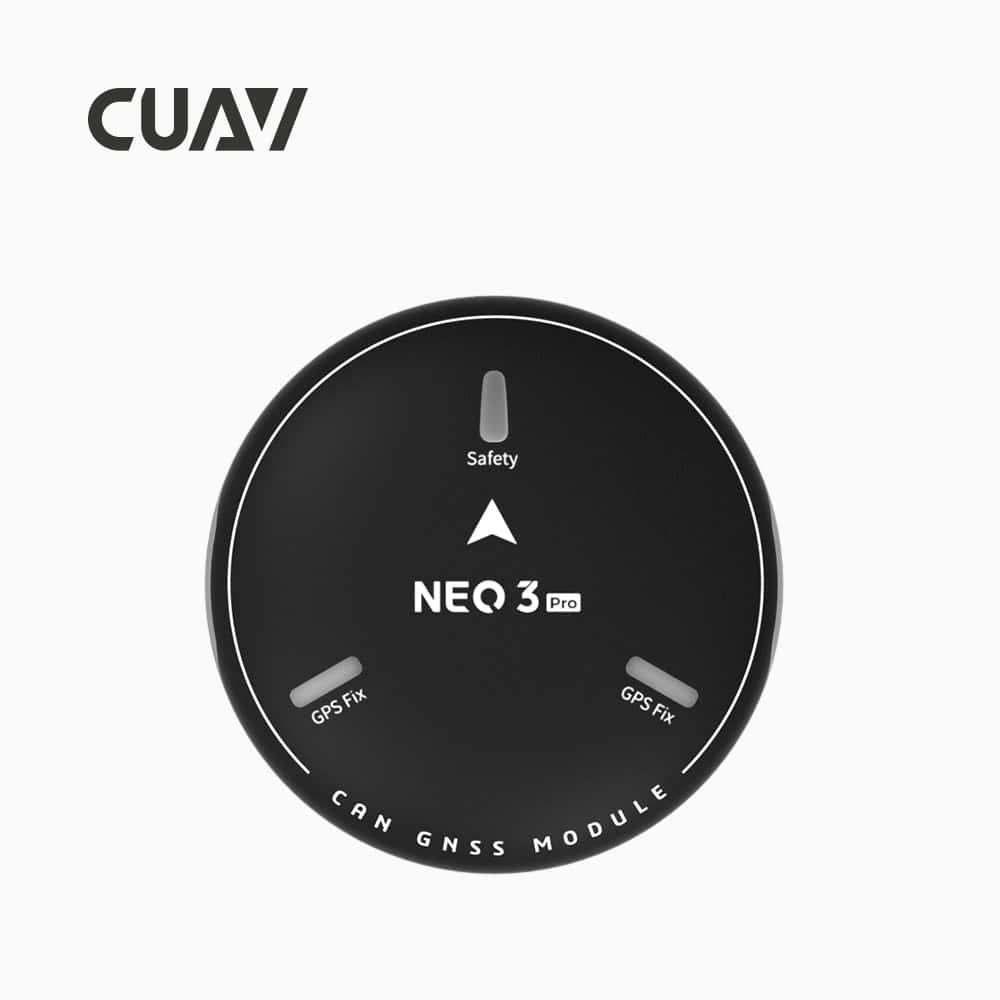

CUAV NEO 3 Pro GNSS Module
The CUAV NEO 3 Pro is a multi-constellation GNSS receiver based on the cutting-edge u-blox NEO-M9N module, delivering high-precision position, navigation and timing (PNT) capabilities for drones and robotic vehicles.
Compatible with Pixhawk-based autopilots, the lightweight and small form factor receiver incorporates an industrial-grade electronic compass with enhanced anti-interference capabilities, and can be easily installed into a variety of platforms via UAVCAN.
Specifications:
| Dimensions: | 60 x 60 x 15.8 mm |
| Weight: | 33g |
| Chipset: | U-blox NEO-M9N |
| Frequencies: | GPS L1 C/A GLONASS L1OF Beidou B1I Galileo E1B/C SBAS QZSS L1s (SAIF) |
| Update Rate: | Up to 25 Hz |
| Horizontal Position Accuracy: | Down to 0.7m |
| Velocity Accuracy: | 0.05 m/s |
