Veronte PCS Control Station

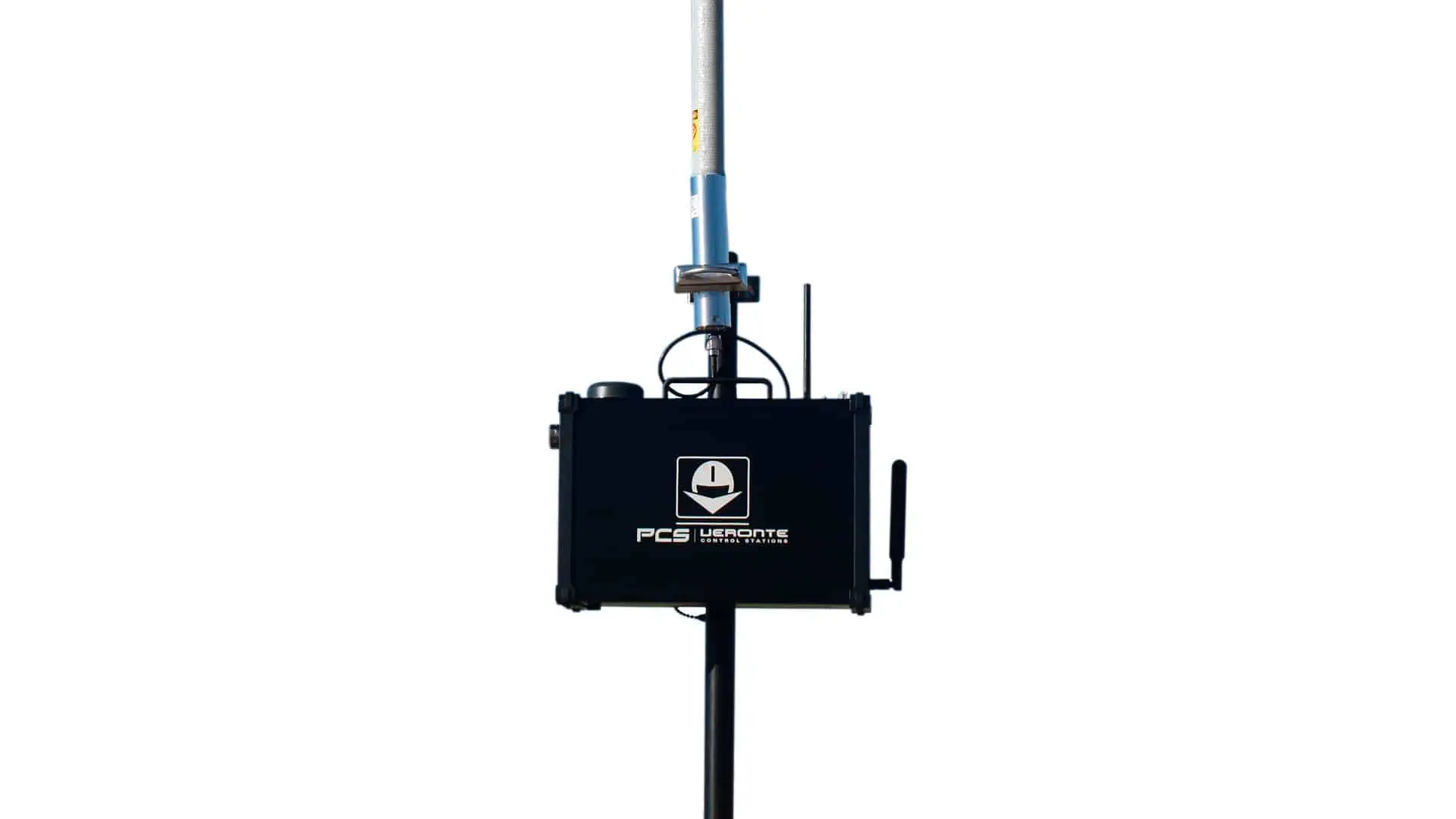

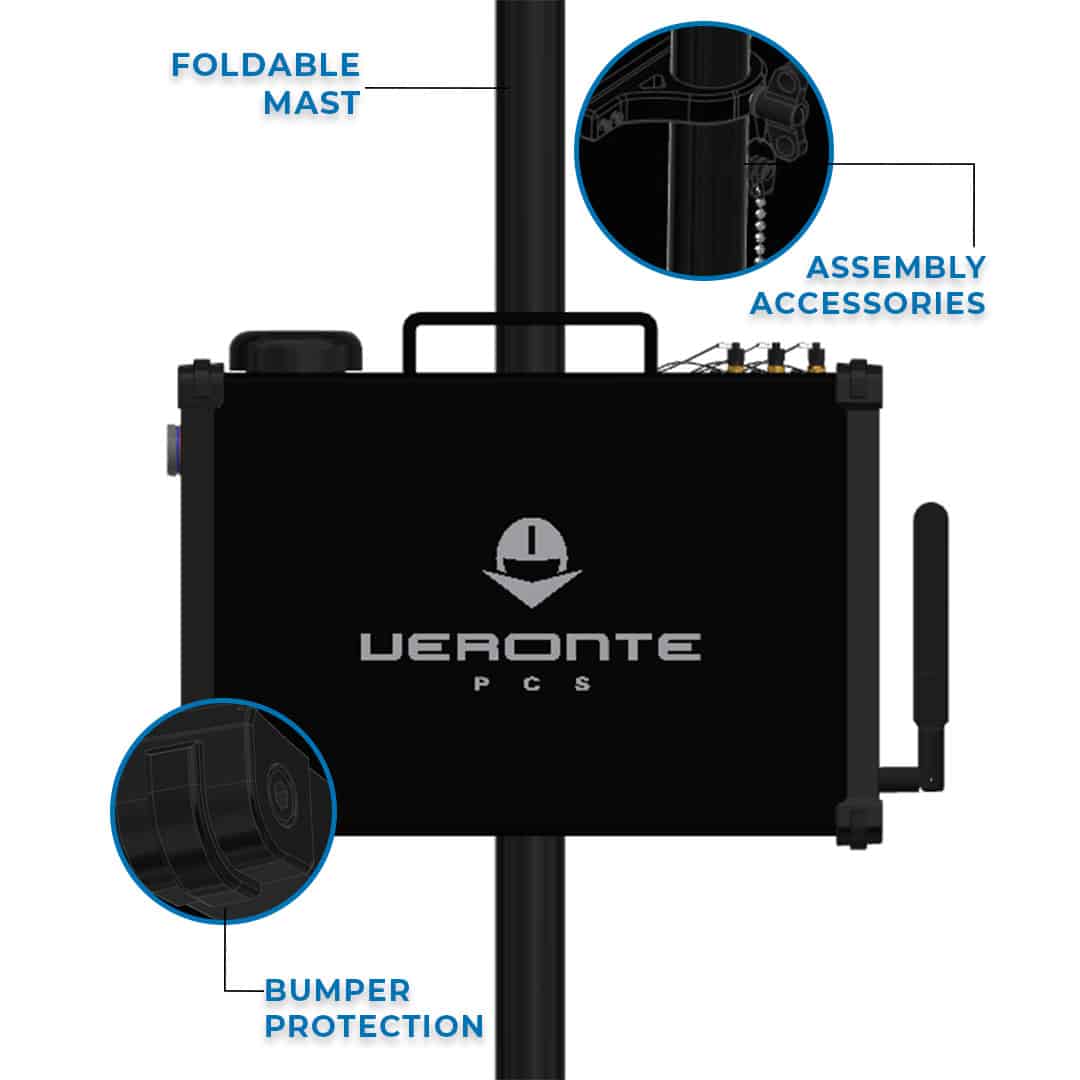

The Veronte PCS is a ground control system for unmanned vehicles powered by Veronte autopilots. The rugged system incorporates dual GNSS receivers and a robust datalink mounted on a telescopic 3-meter mast.

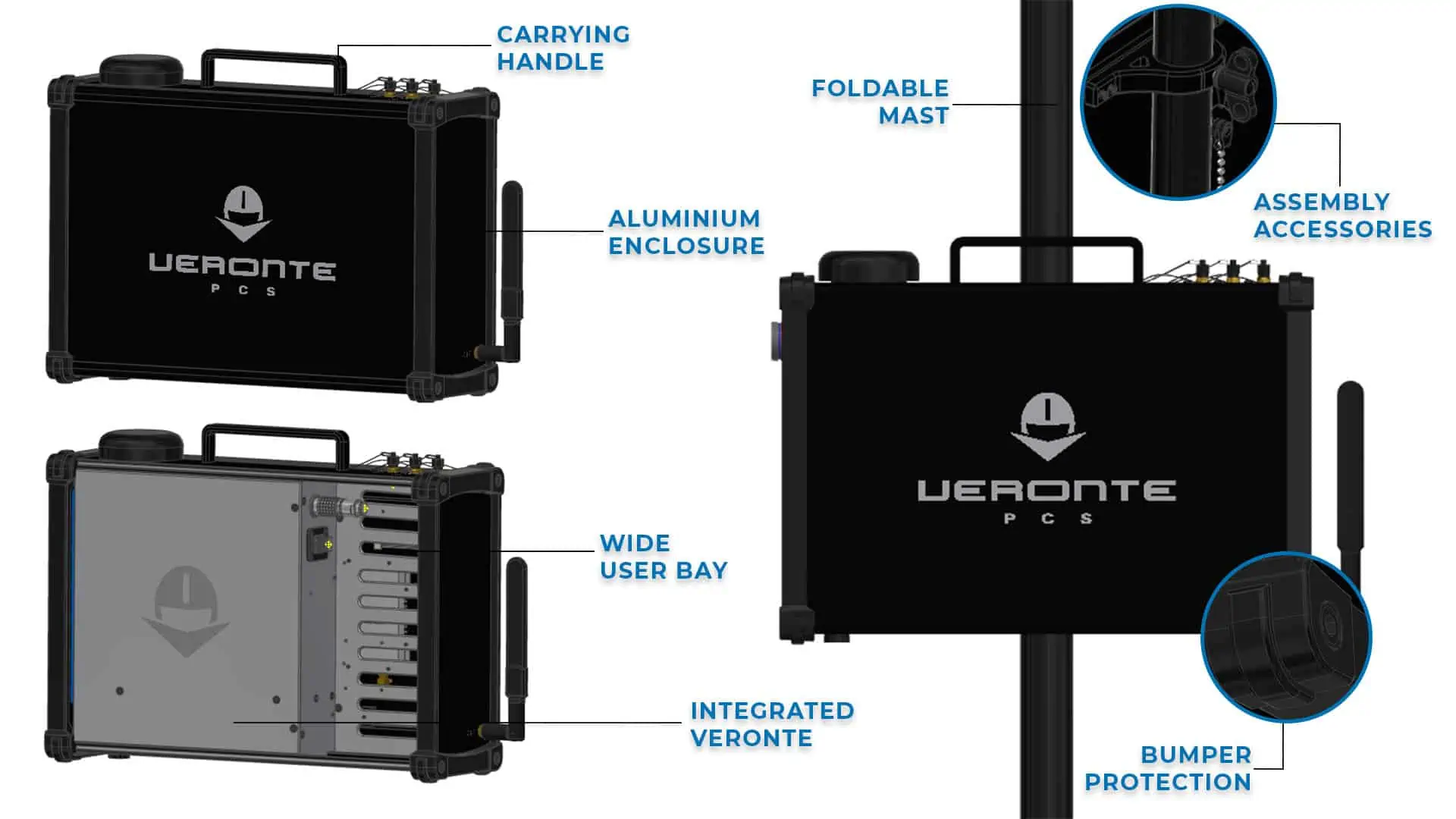

The embedded Veronte Autopilot BCS hardware provides reliable command and control without needing to rely on a commercial OS-powered PC. A customizable expansion bay allows users to install additional electronics such as video communication modules and joystick receivers.
|Dimensions||360 x 160 x 90 mm|
|Weight||5.2 kg (electronics) , 6.2 kg (mast)|
|Battery Life||3 hours|
|Power Input||18 – 24 V|
|Display||15.4” touchscreen, 1080p|
|Datalink Options||TM/TC: 400MHz, 900MHz, 2.4 GHz / TM/TC/video: 2.4 GHz|
|I/O Connector||PWM, RS232, RS485, Analog input, CAN, 12C, EQUEP|
