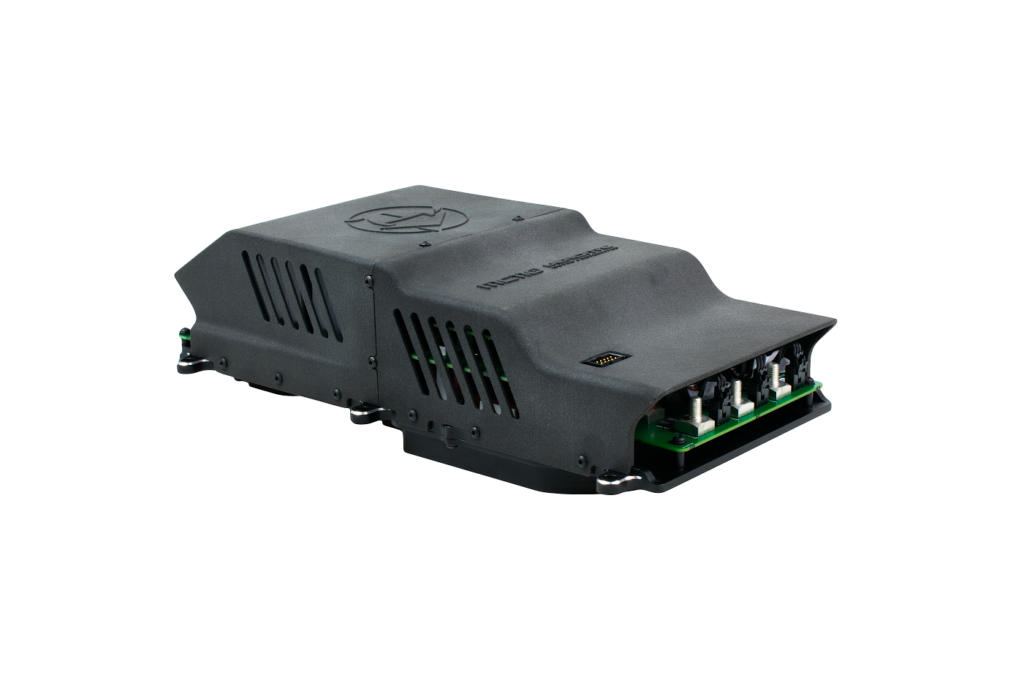

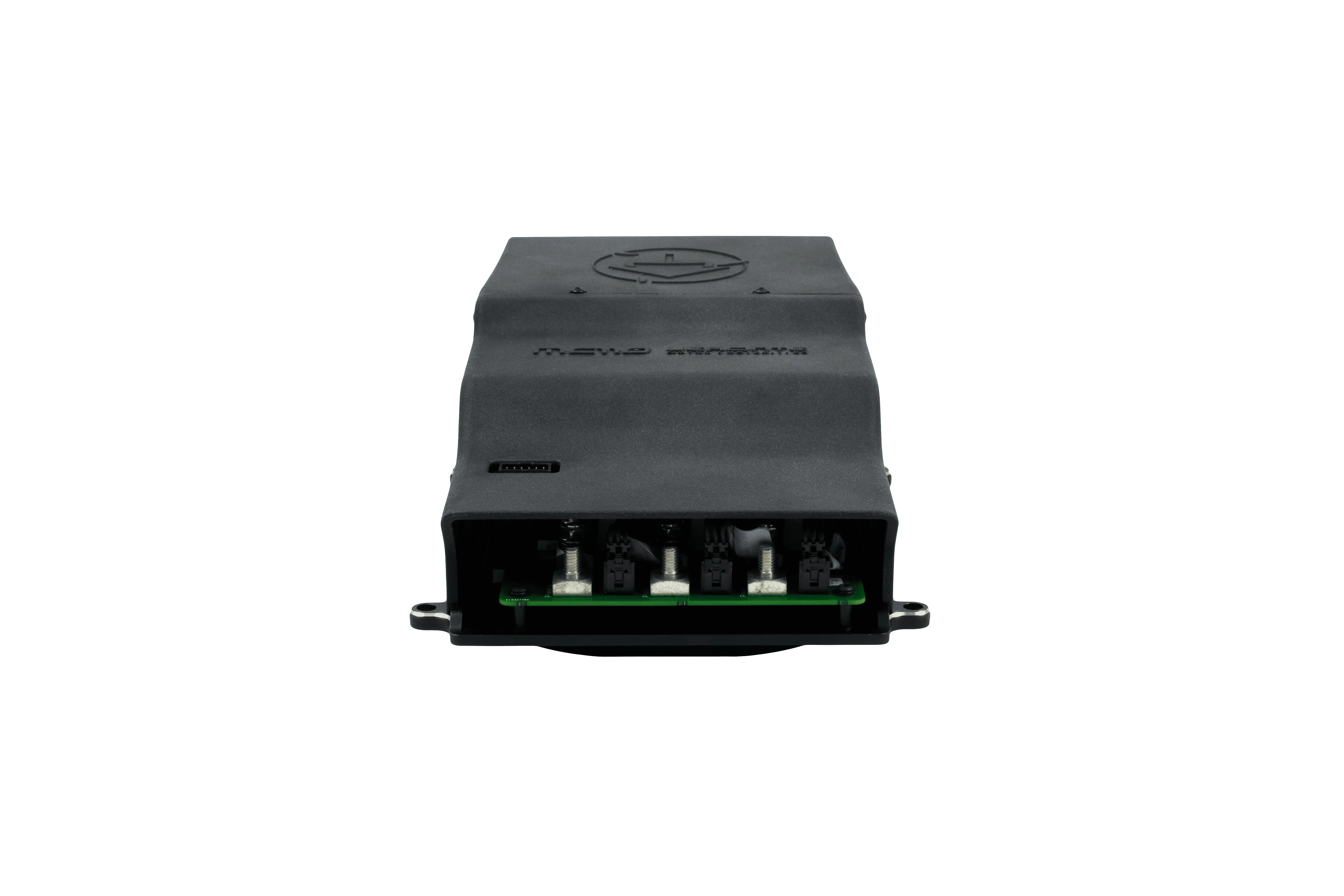

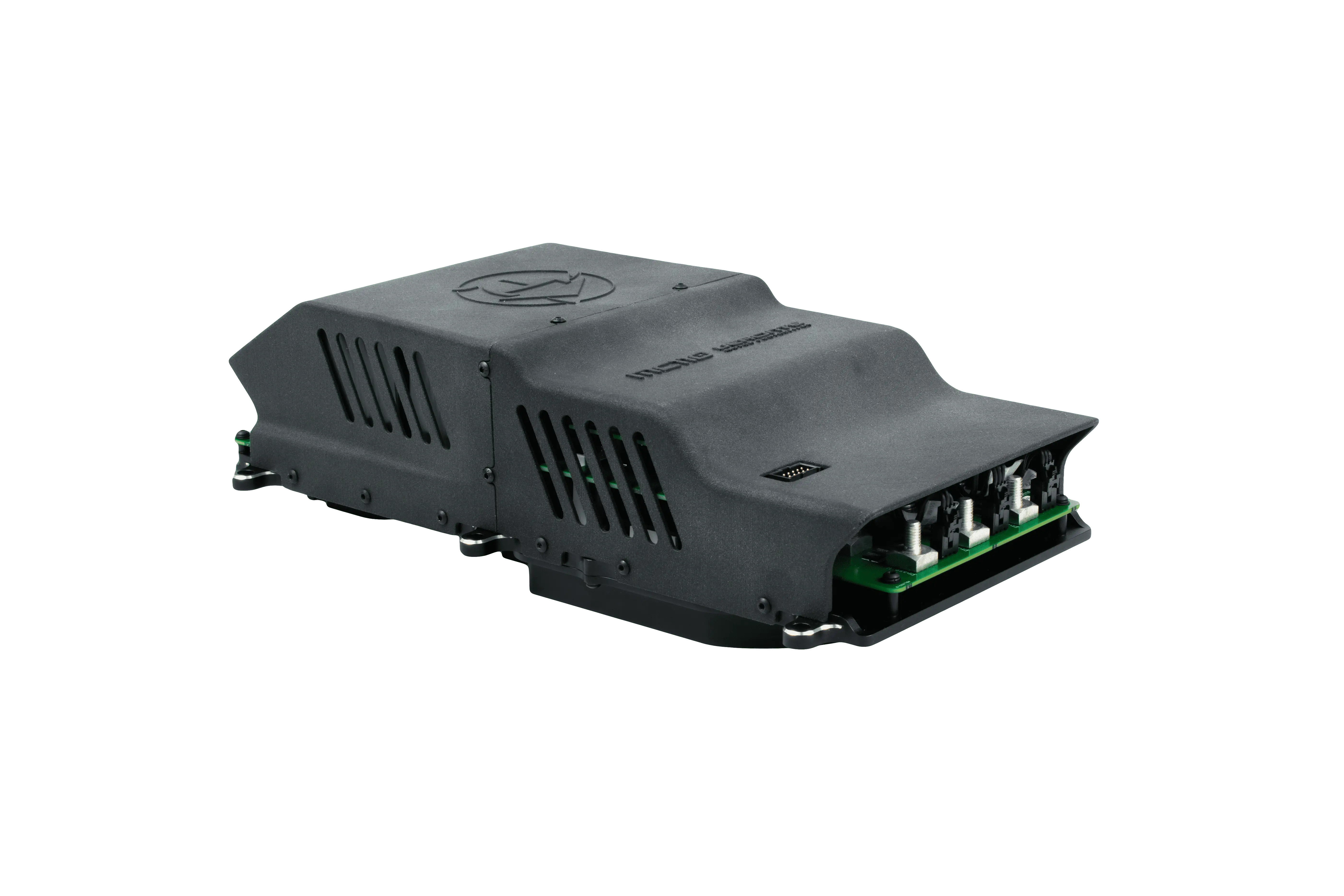

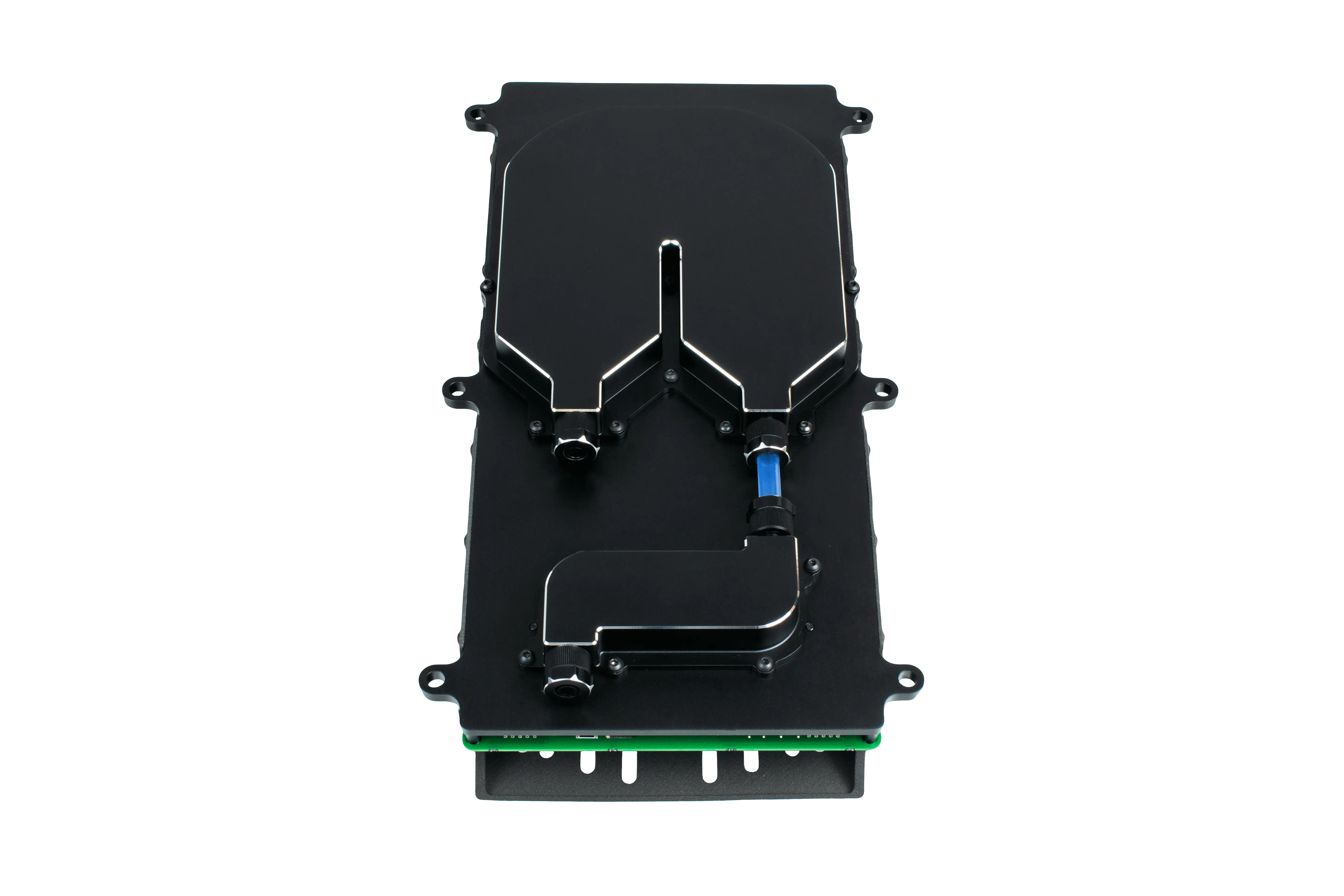

Motor Controller MC110
The Veronte eVTOL Motor Controller MC110 has been specifically designed for eVTOL aircrafts, seeking for long endurance flights with the highest levels of safety and reliability. The DO178C and DO254 compliance provides all the reliability evidence needed for certification and UAM (Urban Air Mobility) applications.
The short response time in electric motors and its efficiency makes it the best choice for eVTOL power systems. This Veronte eVTOL ESC is designed for high voltage operations up to 550V and currents up to 200A so eVTOL endurance can be optimized.
Dimensions | 270x260x80 mm |
Weight | 2700g |
Input Voltage | 100-550V |
Input Current (Cont) | 200A |
Input current (5s Peak) | 400A |
Communications | 2x Isolated CAN Bus, 3x PWM, 1x OPTO PWM, RS232, RS485, USB |
