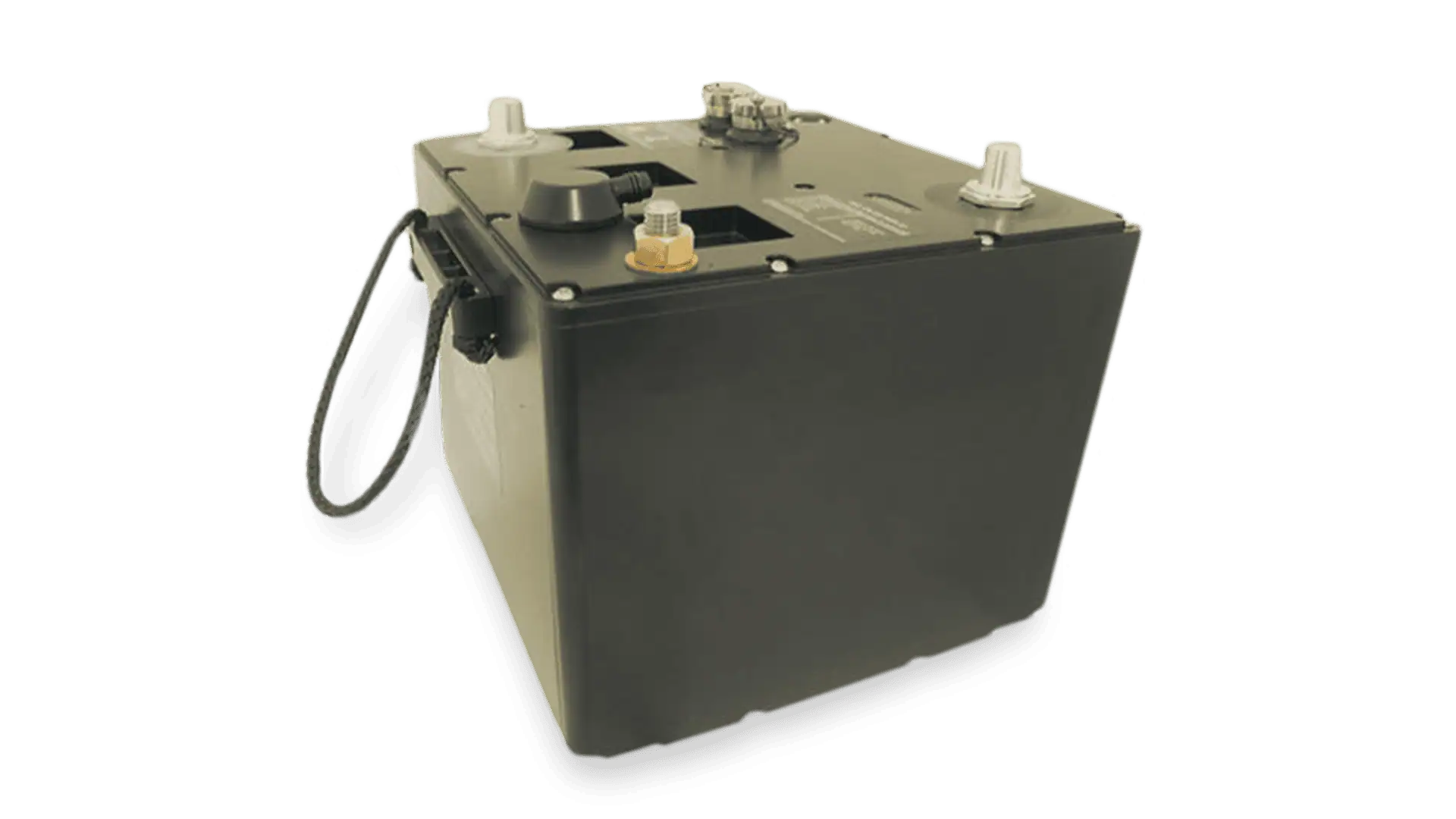

6T Lithium-Ion Battery
Originally designed for armored vehicles, the 6T battery is ideal for UGVs, utilizing cutting-edge high-power lithium-ion cells and a fully managed internal charger. The built-in heater enables operation at temperatures down to -40ËšC, without the need for a specialized cold start kit.
Providing communications via CAN Bus, the battery outputs state-of-charge and health indicator information. The unit's comprehensive battery management system ensures protection against over- and under-voltage, over-current, and over-temperature.
The 6T offers two charging modes - Integrated Charger, where the battery controls charging from a regulated current source, and Bypass Mode, where cells can be charged directly and rapidly.
Specifications:
| Dimensions (L x W x H): | 269 x 256 x 230 mm |
| Weight: | 25 kg |
| Nominal Capacity/Energy: | 85Ah (2.142kWh) |
| Nominal Voltage: | 25.2V |
| Discharge Voltage Range: | 21.0 – 28.7V |
| Charging Voltage Range: |
Integrated Charger: 29.5 - 35V Bypass mode: 21.0 - 28.7 V |
| Max Continuous Discharge Current: | 350A |
| Max Charge Rate: |
Integrated Charger: 45 A (Factory configured option) Bypass Mode: 270 A |
| Cycle Life: |
100% DoD: 3500 cycles 70% DoD: >4000 cycles |
