Laser Rangefinders

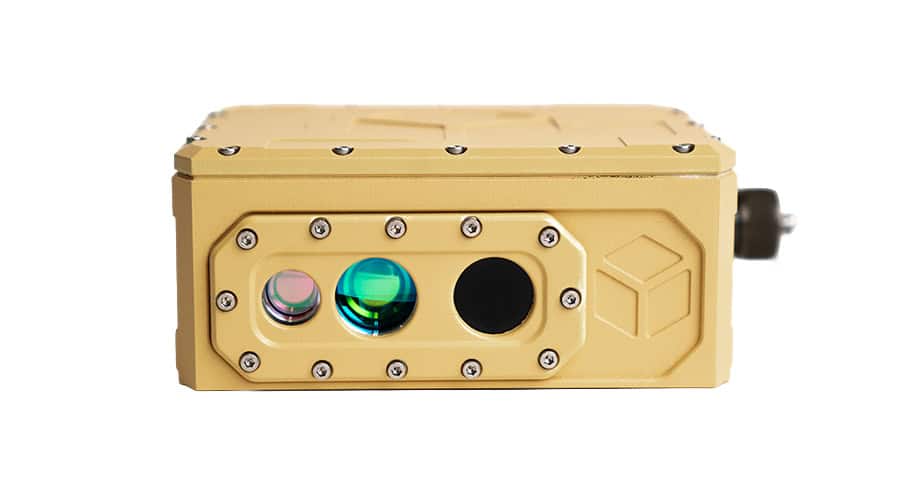

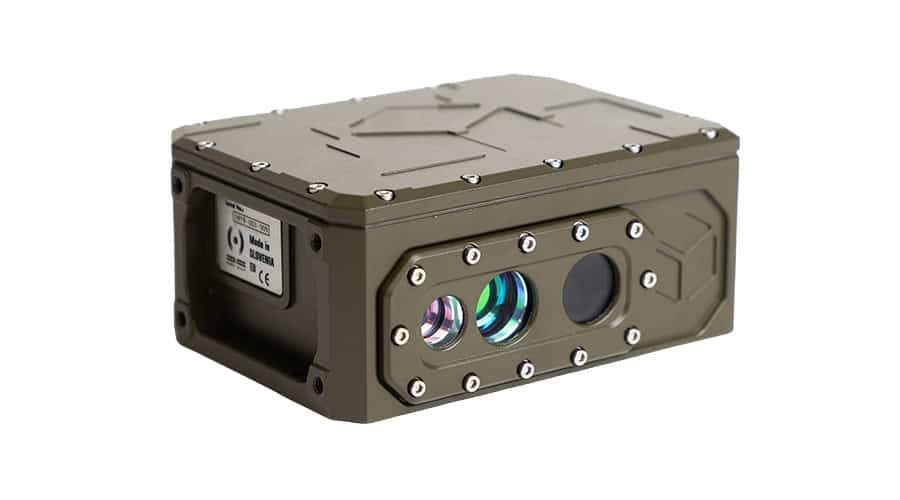

DAT-CON's LDC Series offers laser rangefinding capabilities at distances of up to 32km, with measurement rates of up to 40 per second at reduced ranges in single shot mode and up to 200 per second in burst mode.
The rugged units are IP67-rated and built to MIL-STD-810 specifications, and can be controlled via serial or Ethernet.
Specifications:
| LCD0/10 | LDC0/16 | |
| Dimensions: (with connector) |
172 x 151 x 75 mm | |
| Weight: | 2 kg | |
| Power Consumption: | 3W standby, 7W measuring | 4W standby, 7W measuring |
| Wavelength: | 1.54 µm | |
| Precision: | 00.5 – 1.5 m | 0.5 – 1.5 m |
| Measurement Range: | 50 – 32,000 m | |
| Ranges for Standard Target: (2.3 x 2.3 m) |
Visibility: 25 km Detection: 15 km, target reflectivity 30% |
Visibility: 16 km Detection: 20 km, target reflectivity 30% |
