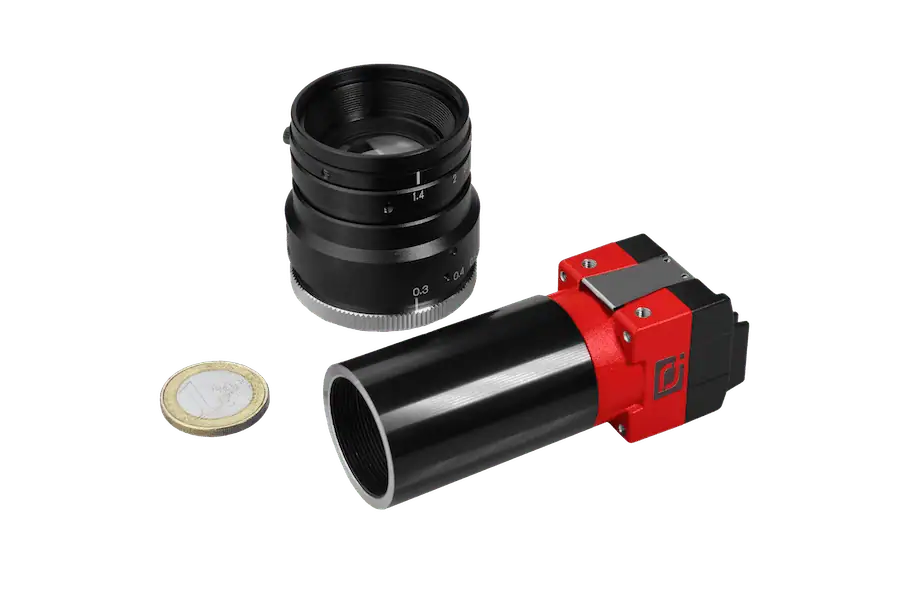

ULTRIS SWIR1
Cubert’s ULTRIS SWIR 1 is an innovative hyperspectral snapshot camera that covers the 980 to 1650 nm range and delivers impressive frame rates of up to 80 Hz, ensuring effective and thorough capture of highly dynamic scenes as well as real-time video output. With a compact and lightweight footprint, it is ideal for SWaP-limited drone platforms.
The versatile imaging solution allows lenses to be easily attached and swapped out thanks to a C-mount adapter. The SWIR range enables the camera to cover a range of different applications including moisture content mapping and soil analysis.
Specifications:
| Dimensions: | 30 x 30 x 85 mm (w/o lens) |
| Weight: | 140g (w/o lens) |
| Wavelength Range: | 980 - 1650 nm |
| Spatial Resolution: | 200 x 200 |
| Spectral Bands: | 38 |
| FOV: | Lens-dependent |
| Max Frame Rate: | 80 Hz |
| Data Depth: | 12 bit |
