Cube Orange+ Standard Set ADS-B NDAA-compliant & Blue UAS-listed ADS-B-equipped autopilot
UAV Autopilot Systems / CubePilot / Cube Orange+ Standard Set ADS-B
Cube Orange+ Standard Set ADS-B

NDAA-compliant & Blue UAS-listed ADS-B-equipped autopilot

Visit Website Contact
Saved
Save
Featured in:
Cube Orange+ Standard Set ADS-B

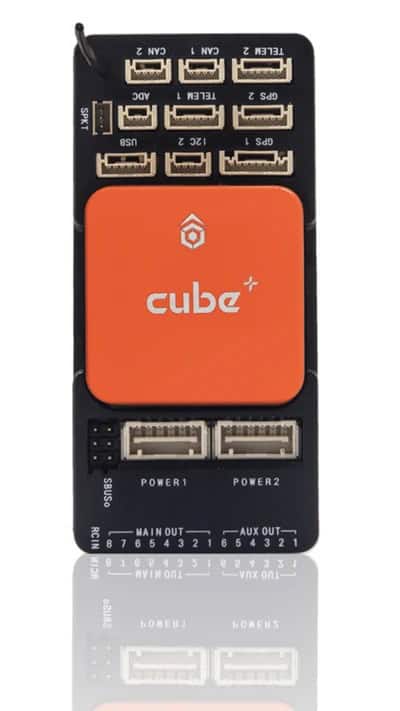

CubePilot's Cube Orange+ Standard Set ADS-B (Latest Version) is an NDAA compliant and Blue UAS Framework listed autopilot for UAV flight control and navigation.

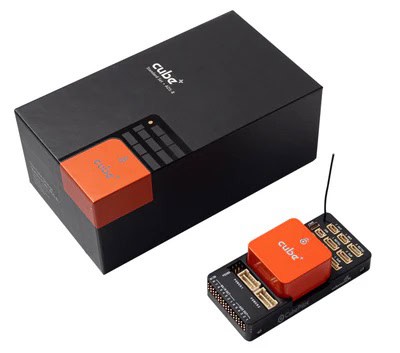

The STM32H757 dual-core M7/M4 processor provides 2 MB flash and 1 MB RAM. The controller also includes 16 KB SPI FRAM, an ICM20649 30G accelerometer and gyroscope, and an MS5611 barometer. The standard set adds an ADS-B carrier board, Power Brick Mini, I²C board, buzzer, and CAN, GPS, power, USB, and I²C cables. It supports ArduPilot and PX4. Integration interfaces include I²C and SPI.
