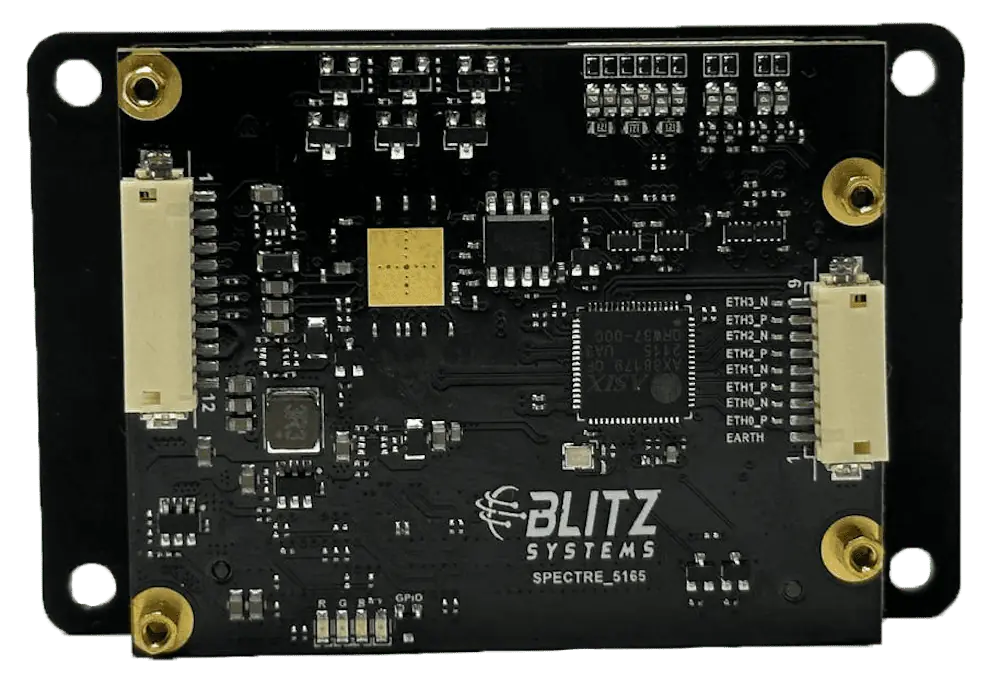

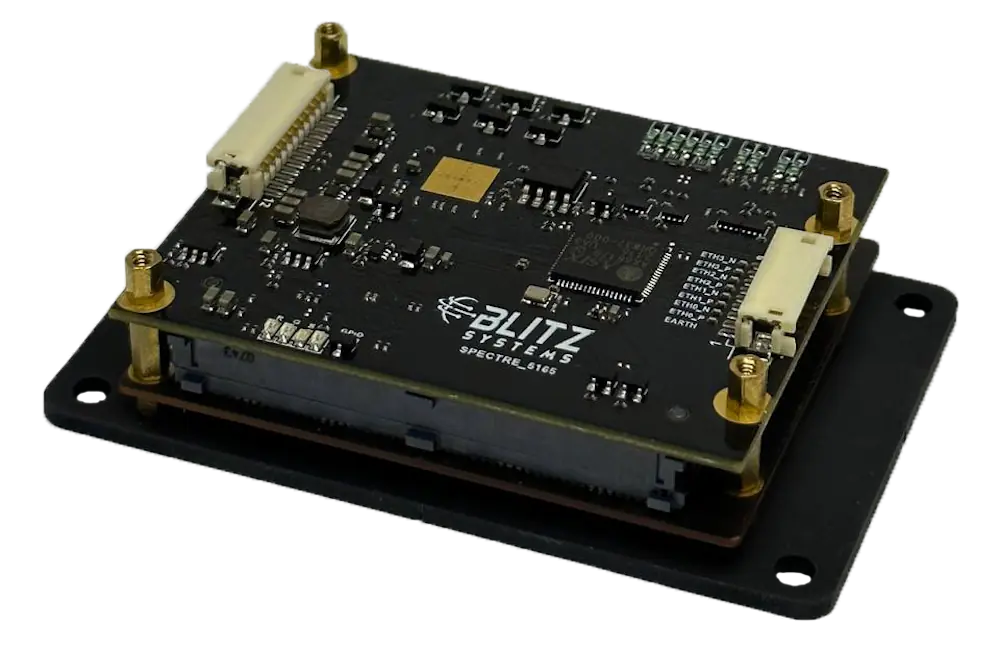

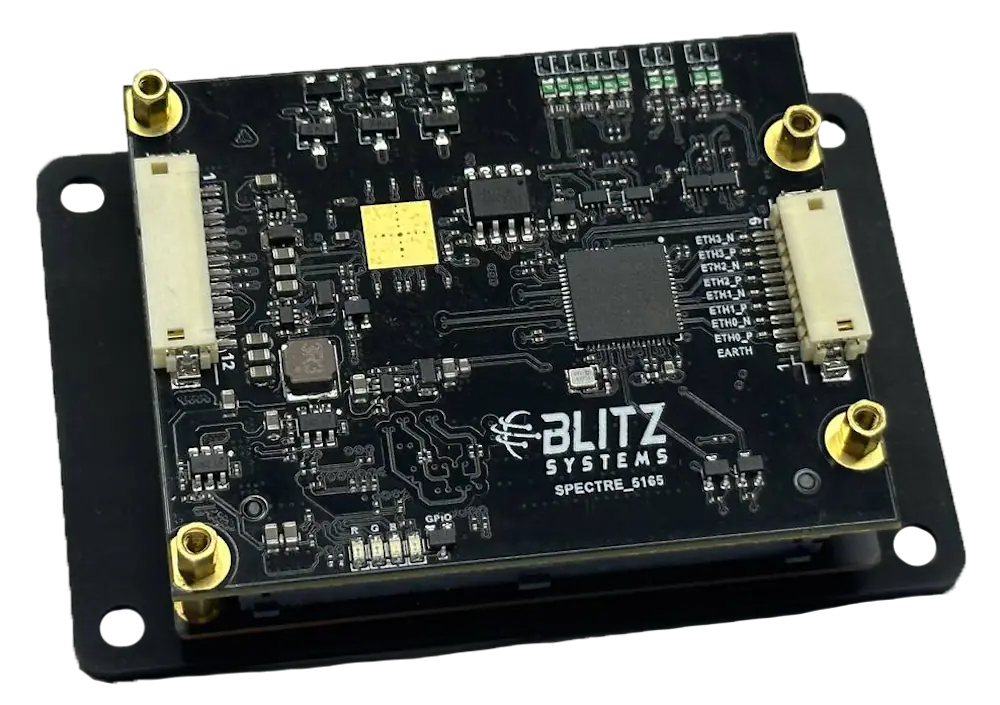

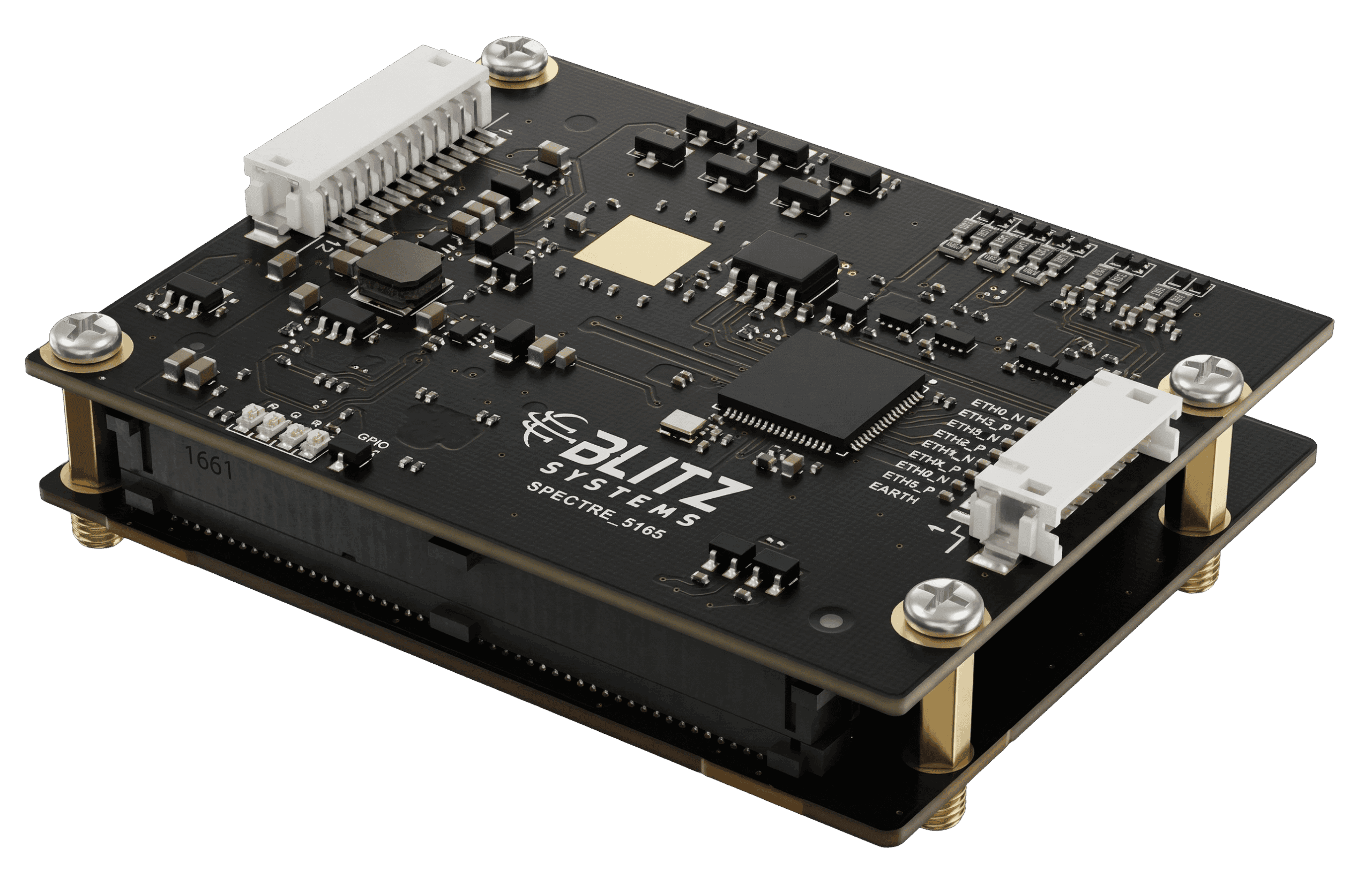

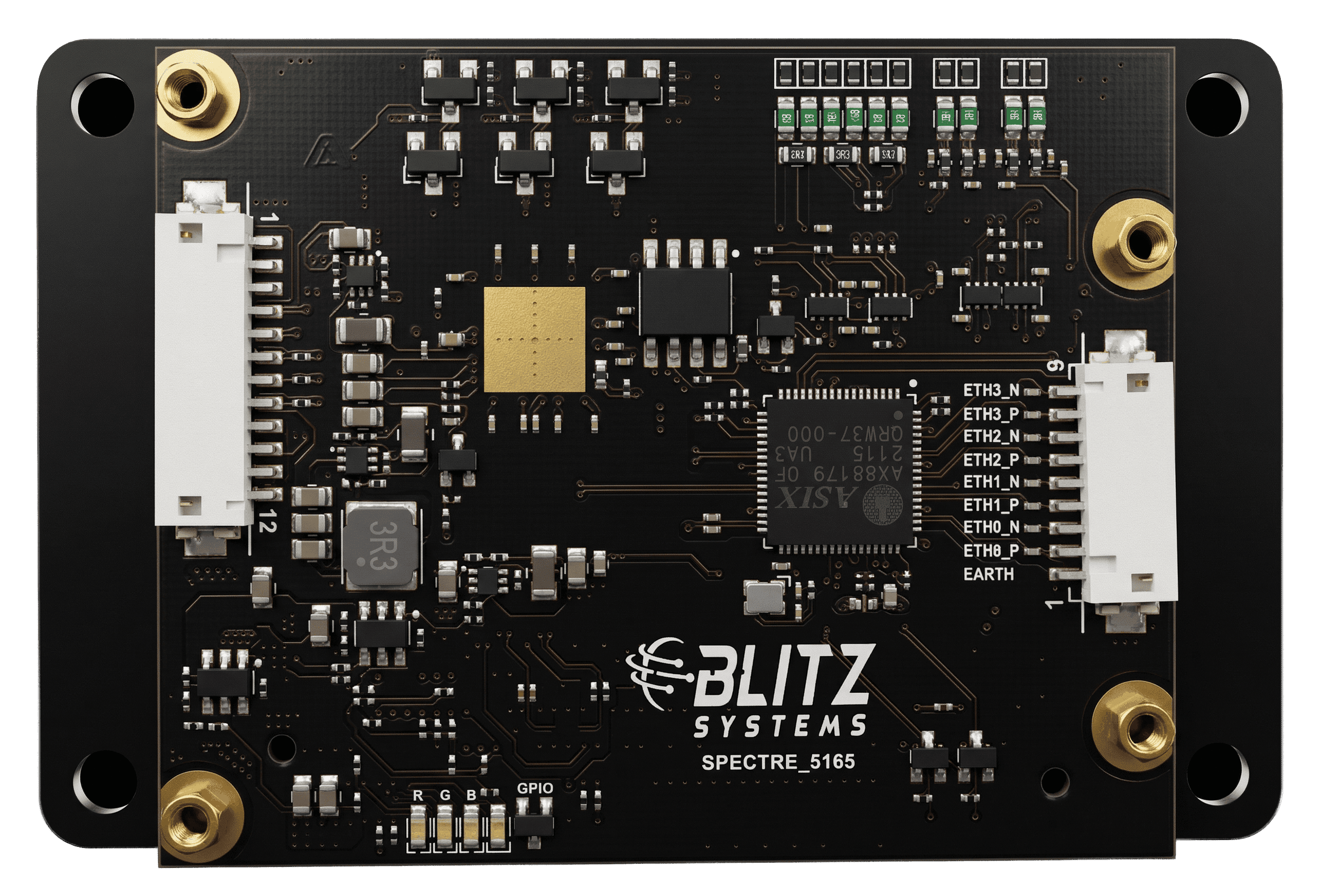

Spectre5165 is a cutting-edge video processor equipped with essential ISR (Intelligence, Surveillance, and Reconnaissance) software, setting new standards for excellence in the field. Widely trusted and integrated into all our Gimbal ISR solutions, it also stands as an exceptional standalone solution.

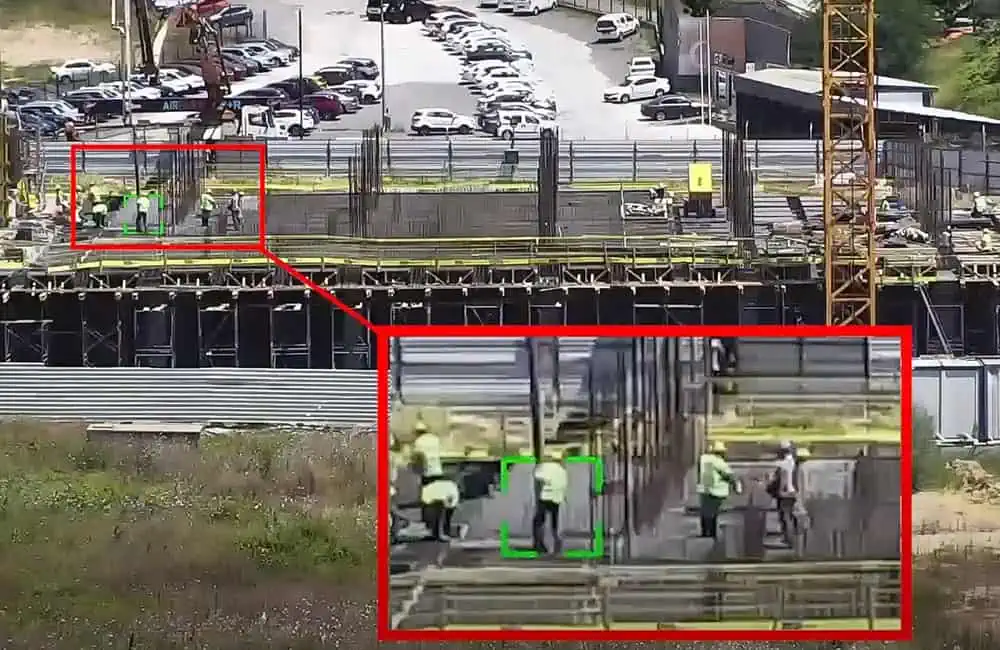

- Advanced Object Tracking
- Up to FULL HD Video Input and Output
- Dual Camera Support
- Picture-in-Picture
- On-Board Recording
- H.264/H.265 High-Definition Video Encoding
BLITZ TECHNOLOGY has also developed a user-friendly Graphical User Interface (GUI) to seamlessly control and harness the full potential of these advanced features. The GUI includes an online/offline moving map, tailored for the rigors of ISR missions providing the upper hand in navigating and interpreting mission-critical data. SPECTRE 5165 Video Processor's unmatched reliability, versatility, and performance elevate capabilities and safeguard success with state-of-the-art technology.
Technical Specifications:
| Multi Camera | Dual Processing optional with multi-camera display options: picture in picture and switching |
| Video Interface | LVDS - ANALOG - SDI |
| Serial Ports | 1 x RS232 - 1 x RS485 |
| Gigabit Ethernet | Video Stream - Control |
| Encoding | H.264 and H.265 Encoding |
| Recording | Onboard Video Recording@128Gb UFS |
| Power | 12V@1A, 12W |
| Size & Weight | 46x58x15mm, 35 grams |
| Environmental | -20°C to +70 °C Working Temperature |
