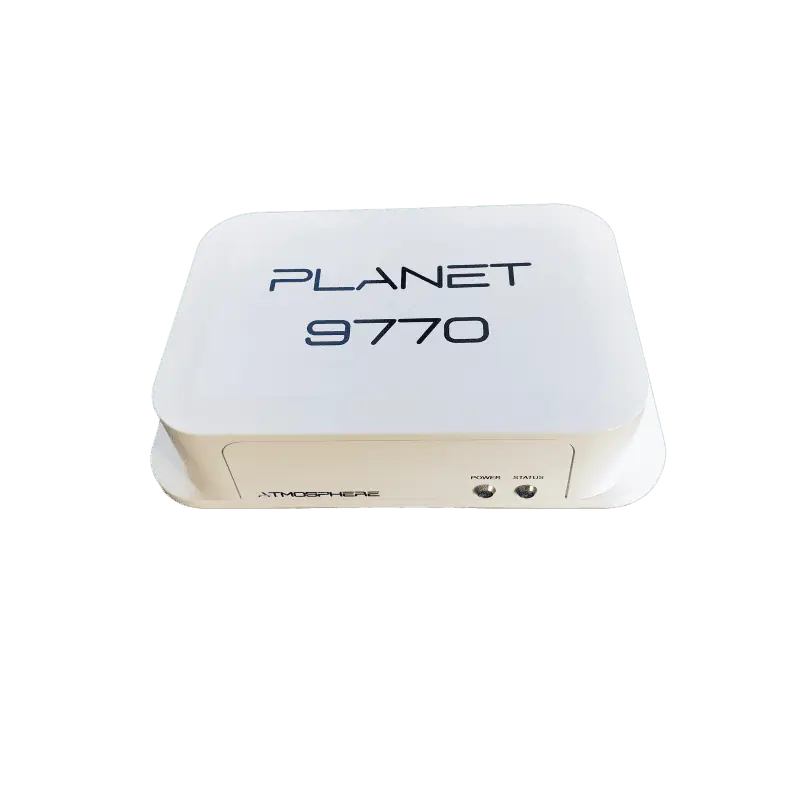

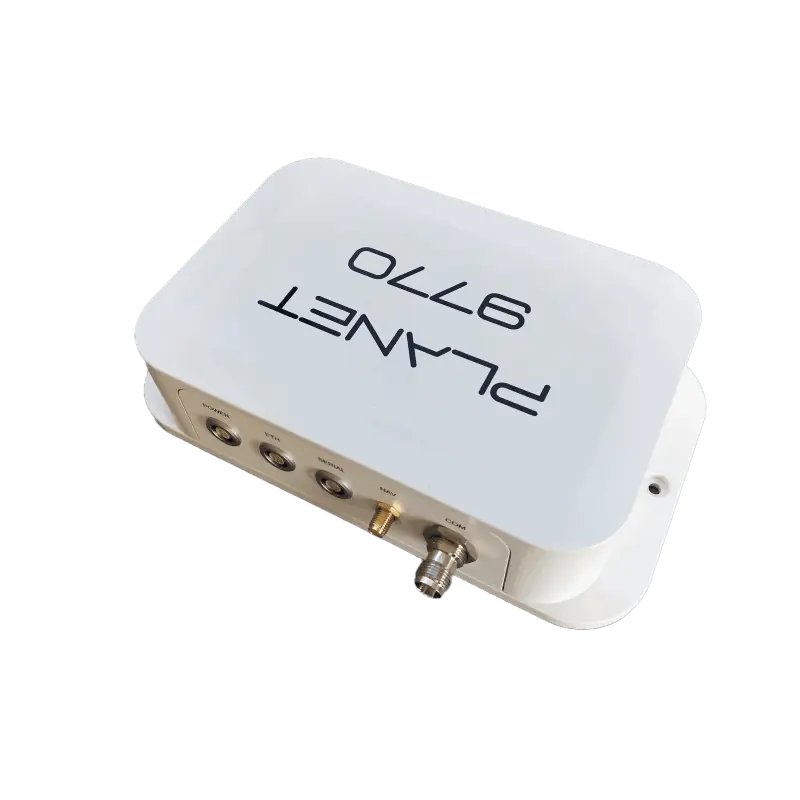

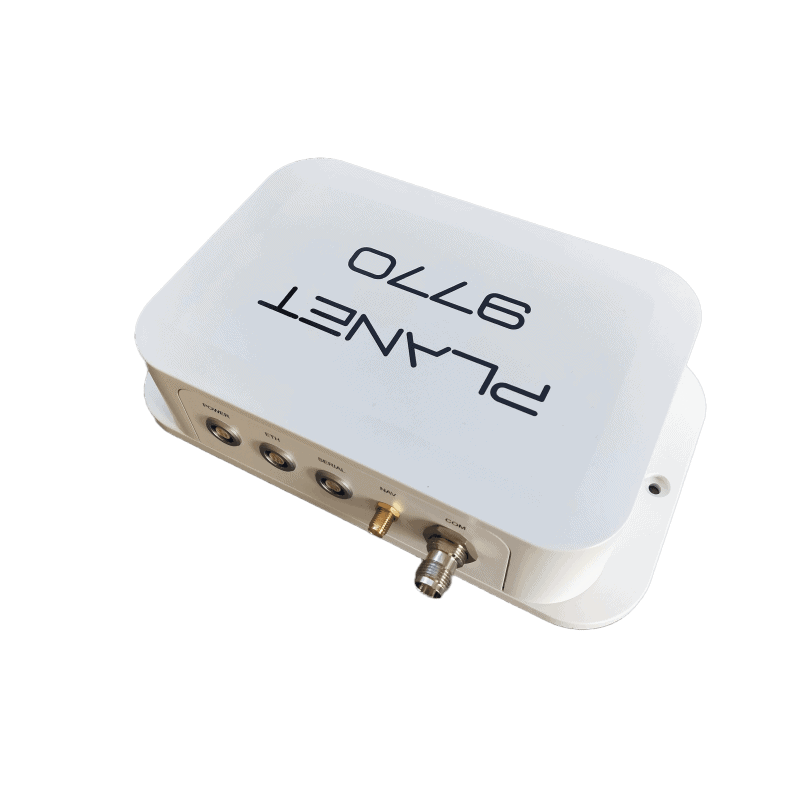

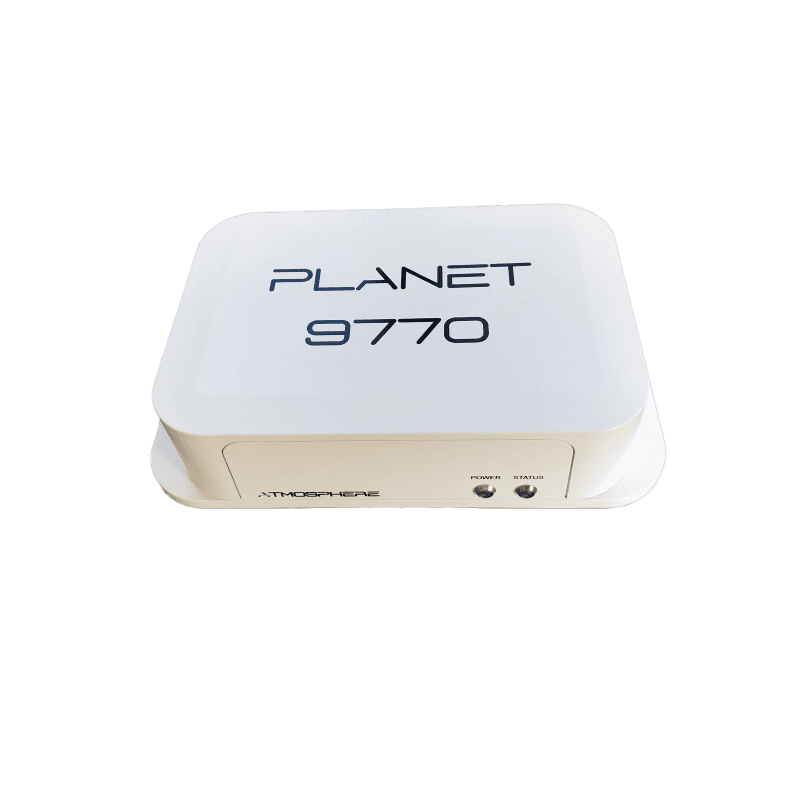

PLANET 9770 UAV-L Terminal
The PLANET 9770 UAV-L SATCOM terminal provides robust midband satellite connectivity for UAVs via the Iridium Certus 100 service, delivering native IP connectivity with up to 22 kbps throughput MO (from the aircraft) and 88 kbps MT (to the aircraft).

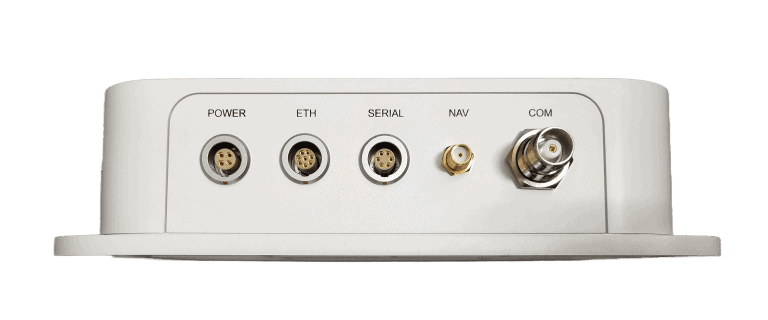

The low-SWaP unit includes one Ethernet and two serial interfaces as well as extensive SSD storage, and features an integrated GNSS receiver for autonomous location and timing. The terminal can be provided with a choice of low- or high-profile passive antenna, with no ground plane required for either.

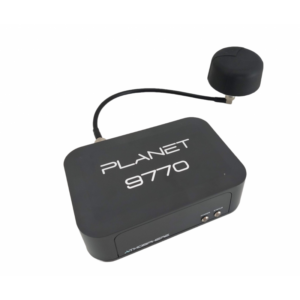

 PLANET 9770 UAV-L (low-profile)Download Datasheet |

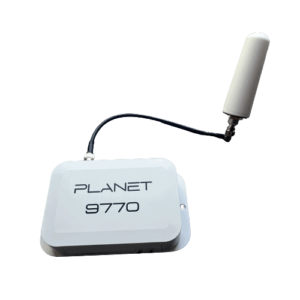

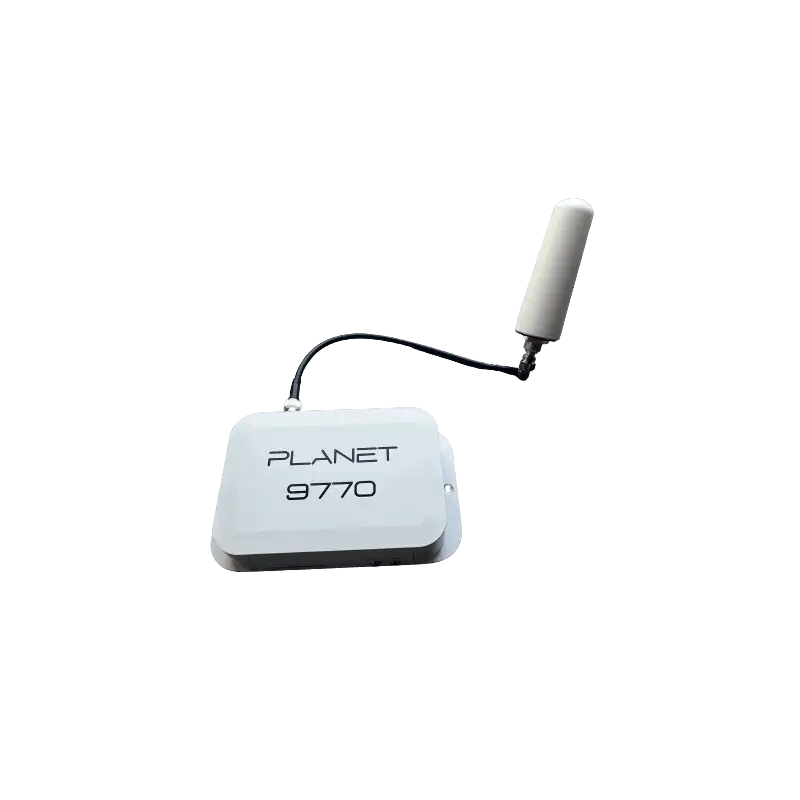

 PLANET 9770 UAV-L-HP (high-profile)Download Datasheet |
Specifications:
| Dimensions (W x D x H) | 170 x 125 x 50 mm |
| Weight | 759 g |
| Power Consumption | 10W average, 25W peak |
| Power Supply | 18 - 36VDC |
| Operating Temperature | 0° to +50°C |
