ULMAR 500-A is a long-range airborne maritime surveillance radar designed for fixed-wing UAVs. The AESA radar enables naval, ground and air surveillance and reconnaissance missions in day, night and all-weather conditions.
The system provides agile beam steering, digital beamforming, high-resolution 3D radar operation, air-to-air and air-to-ground tasks, sea search, ISAR imaging, GMTI, and high-resolution stripmap and spotlight SAR imaging. It also includes small target and short-range modes, weather detection, target classification and identification.

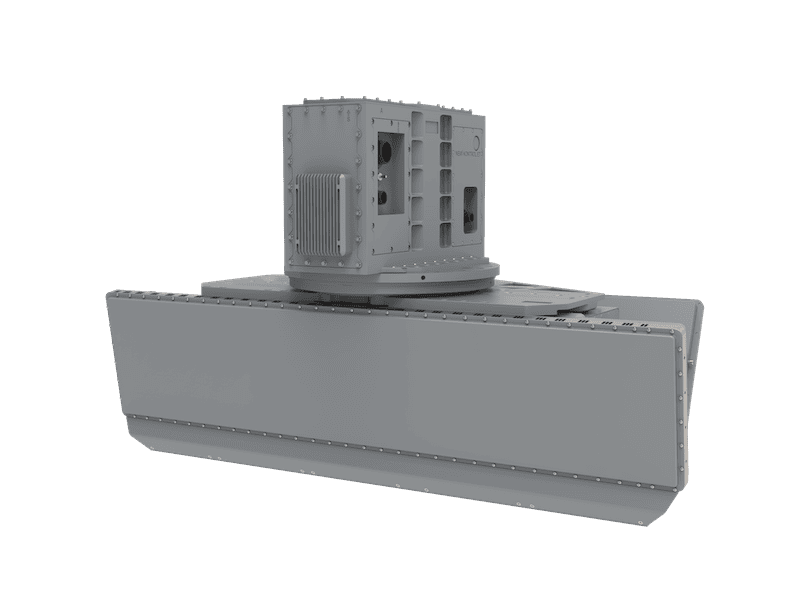

FULMAR 500-A is designed for under-belly integration and provides continuous 360-degree azimuth rotation. Its modular design enables faster platform integration, while network-centric data integration allows radar outputs to be shared with battle management systems.
Specifications:
| Operating frequency | X-band |
| Instrumented range | >320 NM |
| Integration | Under-the-belly integration |
| Azimuth | Continuous 360-degree rotation |
| Cooling | Air-cooled design |
| IFF | Optional integration |
| Radar modes | Sea search, ISAR, GMTI, SAR stripmap / spotlight, weather detection, small target and short-range modes |
