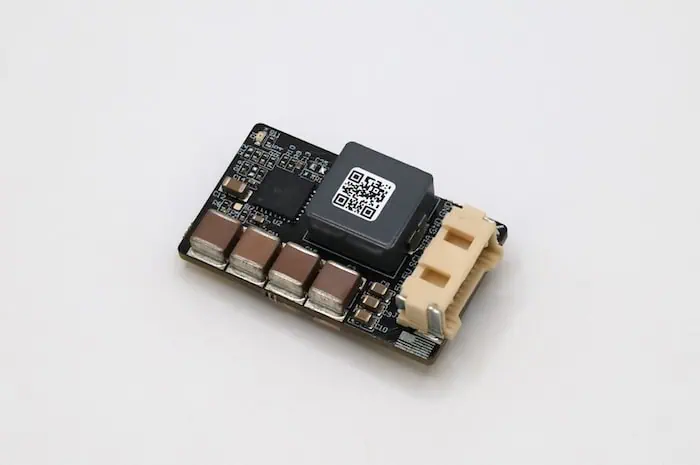

ARK PAB Power Modules
ARK Electronics' power supply and digital power monitor modules are designed for the Pixhawk Autopilot Bus Carrier boards and output up to 6A at 5V. The lightweight and compact modules are NDAA-compliant and are designed to ensure consistent performance and maximum system longevity in complex applications.
The module is available with or without connectors, and a special variant is also available for use with 12S batteries.
Specifications:
| Power Module |
Power Module (no connectors) |
12S Power Module | |
| Dimensions: | 4.75 x 3.43 x 1.15 cm | 4.75 x 3.43 x 0.86 cm | 3.7 x 2.2 x 1.3 cm |
| Weight: | 17.9 g | 9.5g | 15.5g |
| Max Input Voltage: | 33V | 33V | 66V |
| Mini Input Voltage: | 5.8V at 6A out | 5.8V at 6A out | 10V at 6A out |
