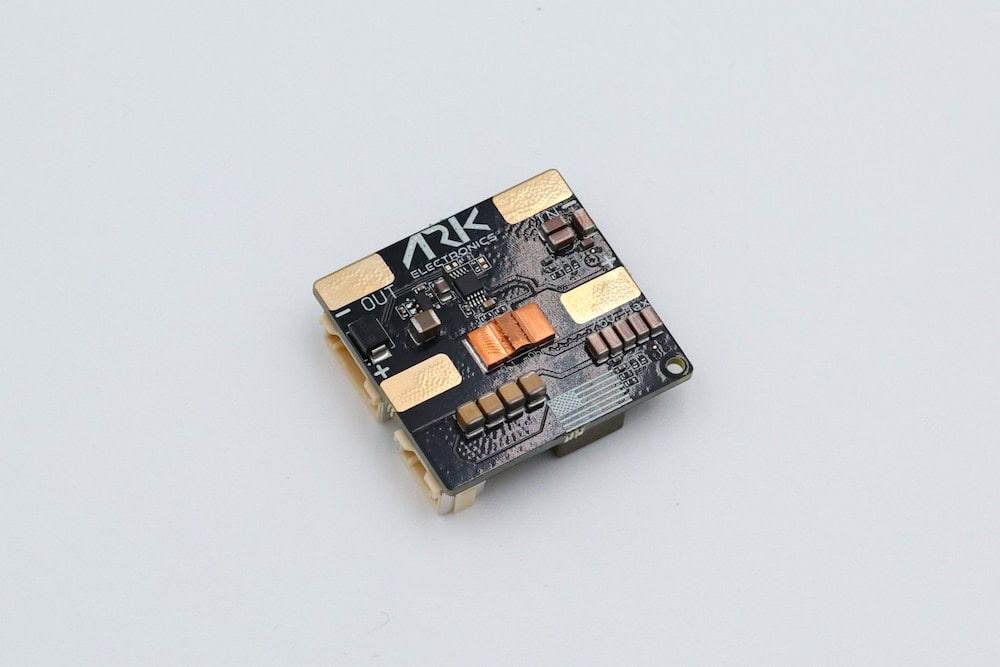

The ARK 12S Payload Power Module delivers robust dual-output power conversion and precise digital monitoring, tailored for systems built around Pixhawk Autopilot Bus (PAB) Carrier boards. Featuring independent 5.2V 6A and 12.0V 6A step-down regulators, it supports avionics and payload loads from 12S battery sources up to 75V, with over-current protection on both outputs. Designed to sustain 100A of continuous battery current at 20°C, the module is ideal for compact embedded platforms requiring efficient high-current distribution. For elevated loads, parallel operation and active cooling are recommended.
Integrated with a TI INA238 digital monitor and 0.1mΩ shunt, the unit delivers accurate voltage and current telemetry via I2C, enabling real-time power diagnostics. The form factor includes solder pad battery terminals and matched Molex CLIK-Mate connectors for streamlined compatibility with ARK PAB Carriers. Built in the USA and NDAA compliant, this module simplifies the power architecture for advanced uncrewed vehicles and embedded robotic applications.
Specifications:
| Weight: | 20.5 g |
| Dimensions: | 3.7 x 3.5 x 1.3 cm |
| Maximum Input Voltage: | 75V |
| 5.2V 6A Step-Down Regulator: | 10V Minimum Input Voltage at 6A Out |
| 12.0V 6A Step-Down Regulator: | 15V Minimum Input Voltage at 6A Out |
