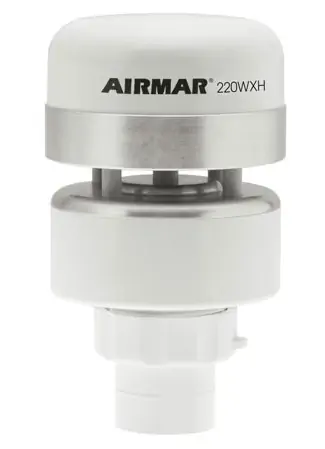

220WXH WeatherStation® Instrument
The 220WXH is an offshore weather station comprising a durable, feature-rich weather multisensor for land and marine vessels and platforms. Incorporating a thermostatically-controlled heating system for operation even in icy conditions, it features rugged IPX4 or IPX6 construction for excellent reliability in harsh environments.
The 220WXH calculates theoretical wind speed and direction based upon apparent wind as well as vessel speed and heading. The internal 10Hz GPS and three-axis electronic compass provide heading, position, speed over ground and course over ground functionality, and the three-axis gyro and accelerometer deliver high-accuracy rate of turn and pitch & roll measurement.
| Wind Speed Range | 0 – 40 m/s |
| Wind Direction Range | 0° to 359.9° |
| Air Temperature Range | -40° to 80°C |
| Barometric Pressure Range | 300 to 1100 hPa |
| Compass | 3-Axis: 0° to 359.9° |
| Pitch & Roll Range | 50° |
| GPS Position Accuracy | 3m (10 ft) CEP |
| Weight | 300g |
