New Embedded Graphics Systems for AI and Image Analysis

By Mike Ball / 18 Jul 2019

Smart Sourcing for Unmanned Systems

Discover cutting-edge solutions from leading global suppliers
SUPPLIER SPOTLIGHT
Follow UST

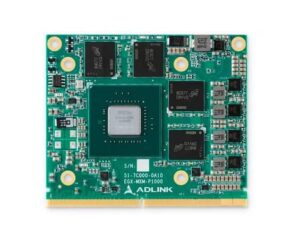

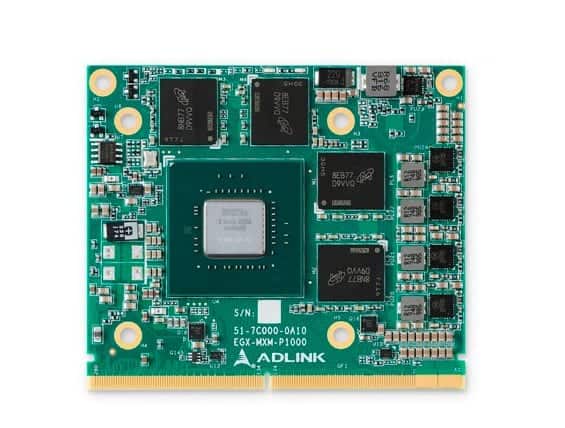

ADLINK Mobile PCI Express embedded graphics moduleADLINK Technology, a developer of computing solutions and an NVIDIA Quadro Embedded Partner, has announced the introduction of the latest additions to its new series of embedded graphics products for edge computing applications, the EGX-MXM-P1000 and EGX-MXM-P2000 Mobile PCI Express modules (MXMs). ADLINK’s MXM modules and PCI Express graphics (PEG) cards offer improved system responsiveness, extended product availability, power efficiency, and system robustness, thus significantly improving speed and efficiency for image processing and artificial intelligence (AI) computation for UAVs (unmanned aerial vehicles) and robotics.

The EGX-MXM-P1000 and EGX-MXM-P2000 feature advanced NVIDIA Quadro GPUs with NVIDIA Pascal Architecture technology in MXM 3.1 Type A form factor. The EGX-MXM-P1000 has 512 NVIDIA CUDA cores and a peak single-precision floating-point performance of 1.8 TFLOPS, and the EGX-MXM-P2000 has 768 NVIDIA CUDA cores and a peak single-precision floating-point performance of 2.3 TFLOPS. Both have 4GB of GDDR5 memory and support NVIDIA GPUDirect RDMA which helps increase data throughput by up to 80% and consequently system responsiveness by up to 60%*. Additionally, 4 FHD display outputs and an extended operating temperature range of -40°C to 85°C are supported. These embedded graphics products are suitable for mission-critical harsh-environment edge computing applications with size, weight, and power (SWaP) and network connectivity constraints.

“ADLINK is taking edge computing to the next level with GPU-accelerated heterogeneous computing platforms. As an NVIDIA Quadro Embedded Partner with extensive experience in embedded and edge applications, ADLINK is well-suited to bringing NVIDIA Quadro GPUs with custom firmware and longevity support to the edge, creating unlimited opportunities for ADLINK’s partners,” said Edgar Chen, managing director of Embedded Platforms & Modules Business Unit at ADLINK. “ADLINK sees applications such as clinical diagnostic imaging devices, rugged military laptops, imaging radar for aerospace and defense, and gaming slot machines as presenting considerable potential to benefit from embedded graphics add-on cards and modules.”

ADLINK offers a comprehensive lineup of embedded graphics products based on NVIDIA Quadro Embedded GPUs, comprising MXMs and PEG cards. The MXMs feature high performance-per-watt and extended operating temperature options, ideally suited to SWaP-constrained applications in demanding environments. The PEG cards maximize computing power and plug-and-play convenience to significantly boost performance of computing-intensive performance-critical applications. To address the needs of graphics processing and GPU-accelerated computing, long-term product availability and technical support are provided for edge computing and AI applications.
