Tersus Develops High-Precision GNSS Positioning Solutions for Unmanned Systems

By Mike Ball / 04 Jan 2017
Follow UST

Tersus GNSS, a provider of real-time high-precision GNSS positioning solutions for unmanned systems, has partnered with Unmanned Systems Technology (“UST”) to demonstrate their expertise in this field. The ‘Gold’ profile showcases how their centimeter-level accuracy GNSS technologies can be used to empower unmanned vehicles and robotics with greater accuracy, in applications such as surveying, mapping, precision agriculture, and unmanned aerial vehicles (UAVs).

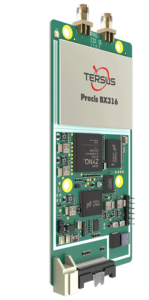

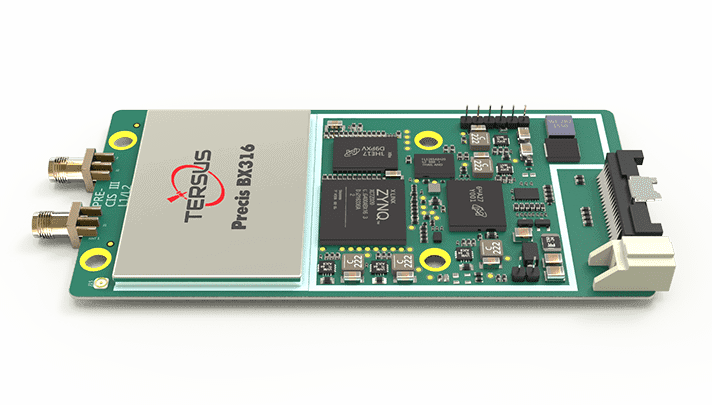

Precis-BX316 GNSS RTK BoardThe Precis-BX316 is a multi-GNSS dual antenna RTK board that provides real-time, precise positioning and heading capabilities for unmanned vehicles. Supporting GPS L1 & L2, BDS B1 & B2 and GLONASS G1 & G2, as well as GPS heading mode, it features 192 channels and a 20Hz maximum update rate. Weighing just 33 grams and easily interfaced with autopilots such as Pixhawk and with other host devices, the Precis-BX316 is ideal for integration into UAVs.

The Precis-BX305 is a multi-GNSS dual antenna RTK board that supports GPS L1 & L2, BDS B1 & B3 and GLONASS G1. It features 192 channels and a 20Hz maximum update rate, and supports logging of raw observation data.

The Precis-BX305 kit provides everything needed to quickly set up a low-power radio link of up to 100mW, allowing users to experience the functionality of the Precis-BX305 over distances of up to 1km. Radio modems and antennas are available in 915Mhz (US) and 433Mhz (European) frequencies.

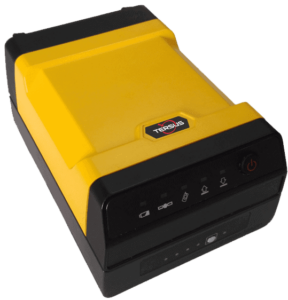

Precis-TX204 GNSS ReceiverThe Precis-TX204 is a lightweight and rugged multi-GNSS receiver designed to support fieldwork in demanding environments. The built-in battery provides up to 10 hours of operation and internal SD card storage enables up to 16GB of data logging. Supporting GPS L1 & L2 and BDS B1 & B2, with GSM/GPRS/EDGE connectivity, the Precis-TX204 also features 128 channels and a 1Hz update rate.

The AS3703 is a miniature GNSS antenna weighing less than 100 grams that has been designed for UAVs and other vehicle-mounted positioning applications. Capable of receiving GPS L1 & L2, GLONASS G1 & G2 and Beidou B1, B2 & B3 frequencies, the AS3703 provides 360° azimuth coverage.

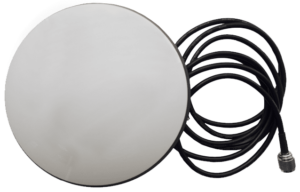

AX3702 GNSS ANTENNAThe AX3702 is a lightning-protected, sealed water- and dust-proof antenna designed for long-term outdoor surveying applications. It receives GPS L1 & L2, GLONASS L1 & L2 and BDS B1, B2 & B3 frequencies, with 360° azimuth coverage and a peak gain of 5.5 dBi. The antenna can be configured for GPS-only or dual constellation applications, and features state-of-the-art multi-path rejection technology to eliminate multi-path influenced measurement error.

The DL207 is an external data logger designed to provide greater storage capabilities for the Precis-BX305 and Precis-BX316 boards. It stores observation data on MicroSD cards and features a 115200bps serial connection as well as a Mini-USB flash disk mode. Logged binary data can be converted to RINEX format using the Tersus GNSS Center configuration software.

To find out more about Tersus GNSS, please visit their profile page:
