X-ES Introduces Intel Atom-Based Embedded PC for Rugged and Compact Applications

By Mike Ball / 13 Jul 2015
Follow UST

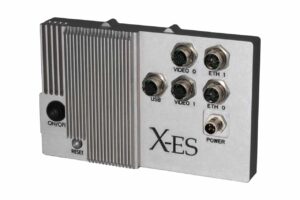

X-ES XPand6903 PCExtreme Engineering Solutions, Inc. (X-ES), a provider of embedded computing solutions, has announced the XPand6903, a rugged, sealed, compact, fanless, embedded box PC utilizing the Intel® Atom™ E3800 family processor. The XPand6903 provides a reliable, maintenance-free, cost-effective, computing platform ideally suited for environmentally challenging and space-constrained situations.

The XPand6903 is designed specifically for Industrial PC (IPC), Human Machine Interface (HMI), industrial automation, and transportation applications, as well as military applications such as unmanned systems. Additionally, the sealed, IP67-capable design makes it ideal for medical, industrial, and food-safe environments where exposure to high humidity, moisture, or harsh chemicals is a concern. The XPand6903 includes DIN rail mounting hardware to simplify installation.

The Intel® Atom™ E3800 family processor offers up to four cores at 1.91 GHz. Internal solid-state storage is included for the operating system and application. Each of the two VGA video connectors has a USB link that supports the connection of a touch screen with a single cable. The XPand6903 provides additional connectors for Gigabit Ethernet, USB, and RS-232/422 serial ports. Other I/O options for the XPand6903 also are available, such as WLAN, cellular, GPS, DVI-D, and CAN bus.

The XPand6903’s power input supports a wide range of input voltages, from 12 to 28 volts. Additional power input voltages also may be supported by request.

To learn more, contact Extreme Engineering Solutions, Inc: Visit Website Send Message View Supplier Profile
