Video Encoders
The Definitive Guide to Video Encoders for Drones & Unmanned Systems
Introduction to Video Encoders for Drones & Unmanned Systems
Video encoders for drones and unmanned systems are critical subsystems that convert high-bandwidth raw video from onboard sensors into a compressed digital format. This process is essential for making data manageable for transmission over wireless links, storage, or real-time edge processing. In modern operations where 4K video and multi-sensor payloads are becoming standard, the encoder reduces data volume while preserving the tactical details necessary for decision-making. Operating within a tightly integrated chain of mission computers and RF datalinks, the encoder directly impacts system-wide latency and the reliability of the intelligence derived from the feed.
Key Types of Video Encoders for Unmanned Platforms
Standalone Video Encoder Units

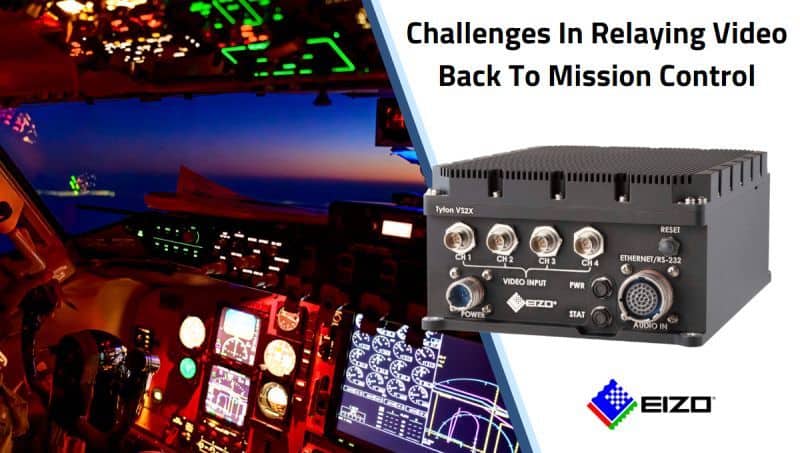

Tyton VS2X Rugged Video Encoder by EIZO
Standalone video encoders are self-contained devices designed for integration as discrete modules within a platform payload. These units typically include dedicated processing hardware, multiple interfaces, and onboard firmware optimized for deterministic performance. They are ideal for retrofit scenarios or modular architectures where rapid integration and physical protection are priorities.

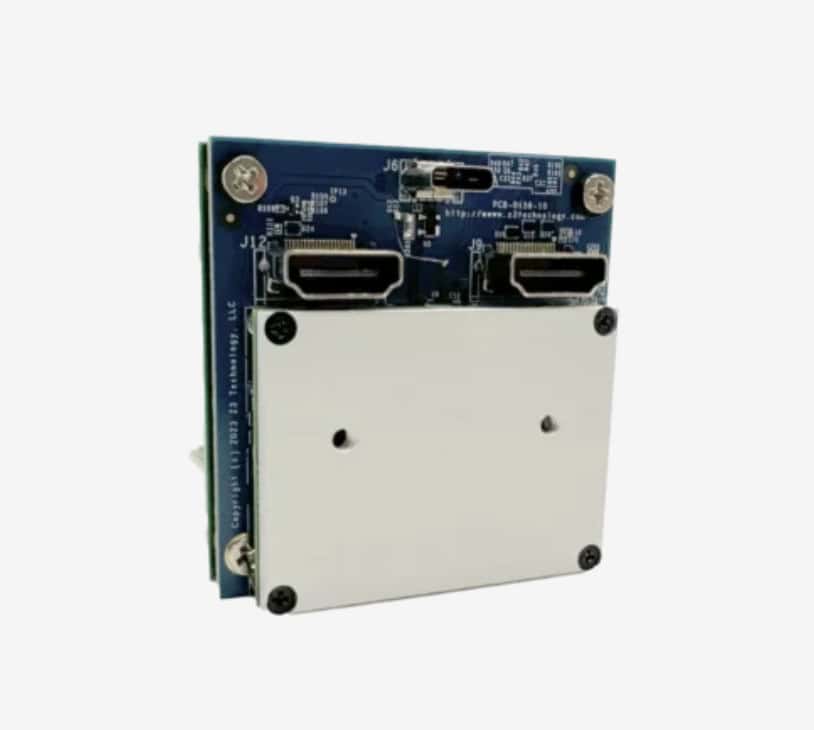

Embedded Video Encoder Boards
Embedded video encoder boards are designed to be integrated directly into a larger system such as a payload gimbal or processing chassis. These boards offer tight coupling with camera sensors, minimizing latency and reducing cabling complexity. Their compact footprint and low power consumption make them well-suited to SWaP-constrained platforms.
Software-Based Encoding Solutions
Software-based encoders run on general-purpose processors within onboard computing systems. While offering flexibility and ease of updates, they are dependent on available CPU or GPU resources shared with other mission tasks. This approach is common in platforms where video processing is combined with broader computational workloads.
Hybrid Encoder Systems
Hybrid solutions combine dedicated hardware acceleration with software control layers to balance efficiency and scalability. These systems leverage hardware engines for compression tasks while retaining software configurability for mission-specific protocols. This approach is particularly effective in complex systems with evolving requirements.
Applications of Video Encoders Across Unmanned Domains
UAV ISR (Intelligence, Surveillance, Reconnaissance)
FSDI-13A Dual Camera Full 3G-SDI Encoder by Z3 Technology
In ISR missions, drone encoders enable the continuous transmission of high-resolution imagery from airborne platforms to ground stations. Low-latency and efficient compression are essential to ensure that operators can identify and respond to targets in real-time. The feed must remain stable during high-speed maneuvers to ensure consistent situational awareness.
UGV Remote Operations and Teleoperation
For Unmanned Ground Vehicles (UGVs), rugged video encoders provide operators with the visual feedback required for navigation and manipulation. Teleoperation demands consistent frame delivery and minimal delay to maintain precise control in complex or obstructed terrain. Low lag is vital to prevent accidents when the vehicle is operating near obstacles.
Maritime and Subsea Vehicle Video Systems
Maritime and subsea platforms such as Unmanned Surface Vehicles (USVs) rely on high-performance encoders to transmit imagery through constrained channels. These environments require robust encoding strategies to cope with limited bandwidth and high-latency conditions during subsea inspections. Efficient data management ensures that clear imagery is available despite the challenges of underwater transmission.
Border Security and Persistent Surveillance
Fixed and mobile unmanned systems used in border security depend on encoded video streams for continuous monitoring of remote sectors. Efficient compression allows long-duration surveillance without overwhelming communication infrastructure or storage capacity. The encoder must maintain high detail levels to allow for accurate target identification over long distances.
Operational Requirements of Video Encoders in Unmanned Systems
Engineering unmanned systems requires a focus on several performance metrics that ensure the platform remains viable in the field.
- SWaP Constraints (Size, Weight, and Power): Performance UAV encoders must deliver UHD or 4K resolution without compromising platform endurance or thermal stability.
- Latency and Real-Time Performance: Tactical video encoding aims for glass-to-glass latency under 100 ms to avoid control issues during teleoperation.
- Bandwidth Limitations and Optimization: Encoders utilize sophisticated rate control algorithms to maintain a stable stream over volatile wireless links.
- Reliability in Contested and Harsh Environments: Hardware must maintain consistent performance despite vibration, temperature extremes, and electromagnetic interference.
These requirements dictate the physical and logical design of any encoding solution intended for professional use.
Core Video Encoding Technologies
Compression Standards (H.264, H.265/HEVC, H.266/VVC, MJPEG)
Modern 4K encoders rely on standardized algorithms to reduce data rates for efficient wireless transmission. H.264 remains widely deployed for its compatibility, while H.265/HEVC and emerging H.266/VVC offer superior compression at the cost of higher processing demand. Selecting the right standard involves balancing platform power against the available bandwidth of the communication link.
Intra-frame vs Inter-frame Encoding
Intra-frame encoding compresses frames independently, offering lower latency and higher resilience to packet loss. Inter-frame encoding exploits temporal redundancy to achieve higher compression efficiency, which is ideal for saving bandwidth on limited links. Engineers should decide if their priority is absolute stream stability or maximum data efficiency.
Bitrate Control (CBR vs VBR)
Constant Bitrate (CBR) encoding ensures predictable bandwidth usage, which is critical for fixed-capacity tactical RF radios. Variable Bitrate (VBR) encoding adapts to scene complexity to improve quality, though it requires more careful bandwidth management to avoid link saturation. Most live unmanned operations utilize CBR to ensure the feed never exceeds link capacity.
Resolution and Frame Rate Considerations
Higher resolutions and frame rates improve situational awareness but significantly increase the data rates required. Encoding systems must balance these parameters based on mission requirements, often scaling resolution dynamically as the platform moves. A mission may prioritize 4K resolution for identification or higher frame rates for smooth navigation feedback.
Hardware Architectures for Video Encoding
The underlying hardware architecture defines how efficiently an encoder can process high-resolution data while remaining within power limits.
- CPU-Based Encoding: This provides maximum flexibility for software updates but is generally less efficient for high-resolution applications compared to dedicated hardware.
- GPU-Accelerated Encoding: Parallel processing allows GPUs to handle high-resolution or multi-stream tasks while supporting additional image processing workloads.
- FPGA-Based Encoding Solutions: These offer deterministic, low-latency performance and are suited to defense-grade systems where precise timing is required.
- ASIC and Dedicated Encoder Modules: These circuits provide the highest levels of power efficiency for high-volume or mission-critical applications where space is at a premium.
- Edge AI and Smart Encoding Capabilities: Newer architectures integrate AI to prioritize regions of interest, applying higher bitrates to targets while compressing static backgrounds more heavily.
Selecting the appropriate architecture depends on the specific computational and power budget of the unmanned platform.
Interfaces & System Integration
Sensor and Camera Interfaces (HD-SDI, HDMI, MIPI CSI, Ethernet)
Video encoders support a range of input interfaces to accommodate different sensor types found in modern payloads. High-bandwidth digital video encoder interfaces such as HD-SDI and MIPI CSI are common in professional gimbals, ensuring raw data reaches the encoder with zero signal degradation. Proper selection ensures the payload remains lightweight while maintaining high signal integrity.
Network Interfaces and Protocols (RTP, RTSP, UDP, SRT)
Encoded video is transmitted using protocols that determine how data is packetized and handled across the wireless link. While RTSP is common, SRT (Secure Reliable Transport) is now preferred for unmanned systems because it maintains integrity over lossy networks. These protocols allow the system to handle network congestion while keeping the video feed viewable.
Integration with Mission Computers and Payload Systems
Video encoders are often integrated with onboard processing systems that manage sensor fusion and complex mission logic. This ensures efficient data flow and allows the mission computer to adjust encoder settings based on real-time environmental feedback. Centralized architecture helps the platform manage its limited energy and computational resources more effectively.
Interoperability with Data Links and Ground Control Stations
Encoded video must be compatible with the platform communication links and ground infrastructure to ensure users can view the feed. This requires adherence to standards like MISB and KLV metadata injection, which synchronize telemetry data with the video frames. This interoperability allows the system to work seamlessly within a broader tactical network.
Encoding for RF & SATCOM Transmission
Effective transmission over long distances requires the encoder to act as an active participant in managing the communication link.
- Optimizing Video for Low-Bandwidth Links: Parameters must adjust dynamically to maintain usable quality as signal strength fluctuates over SATCOM channels.
- Error Resilience and Packet Loss Mitigation: Systems use specific mechanisms to minimize visual degradation and prevent the stream from breaking when packets are lost.
- Forward Error Correction (FEC) and Adaptive Streaming: FEC adds redundancy to allow recovery from packet loss, while adaptive video streaming modifies resolution in real-time.
- Encryption and Secure Video Transmission: Hardware-based encryption ensures that intercepted data cannot be exploited, safeguarding the integrity of the mission.
Robust transmission strategies ensure that the video remains a reliable tool for operators even in challenging link environments.
Cybersecurity in Video Encoding Systems
Secure Boot and Firmware Integrity
Video encoders must ensure that only trusted firmware is executed, preventing unauthorized modification of hardware behavior. By verifying digital signatures during the boot process, the system protects itself from malicious actors attempting to gain control. This foundational security measure is essential for maintaining trust in sensitive industrial and defense operations.
Data Encryption and Secure Streams
End-to-end encryption protects video streams during transmission, safeguarding operational data through AES-128 or 256 standards. This process occurs within the encoder hardware to ensure data is protected from the moment of compression until it reaches the ground station. Without encryption, a video feed could be intercepted, compromising mission security.
Protection Against Signal Interception and Spoofing
Systems implement authentication and anti-spoofing mechanisms to ensure the integrity of both video data and control signals. These features prevent attackers from injecting false video feeds or hijacking the sensor control link. As unmanned systems take on high-stakes roles, these cybersecurity measures have become as vital as encoding performance.
Emerging Trends in Video Encoding Solutions
The evolution of unmanned systems is driving the development of more intelligent and responsive encoding technologies.
- AI-Enhanced Compression and Analytics: Machine learning identifies critical visual information to reduce unnecessary data transmission while keeping targets clear.
- Low-Latency Video Encoders: New transport protocols and optimized pipelines are reducing delay for more responsive platform control.
- Edge Processing and Onboard Analytics: Encoders are becoming intelligent nodes that perform analytics locally, only sending alerts to the ground to save bandwidth.
- 5G and Beyond Line-of-Sight (BLOS) Video Transmission: Advanced communication networks are enabling high-quality video over much longer distances for complex, distributed operations.
- Ultra-Low-SWaP Designs: Miniature UAV encoders allow for high-performance encoding hardware to be integrated into the smallest platforms without impacting flight duration or thermal management.
These trends indicate a shift toward autonomous, data-centric video pipelines that provide more than just a visual feed.
