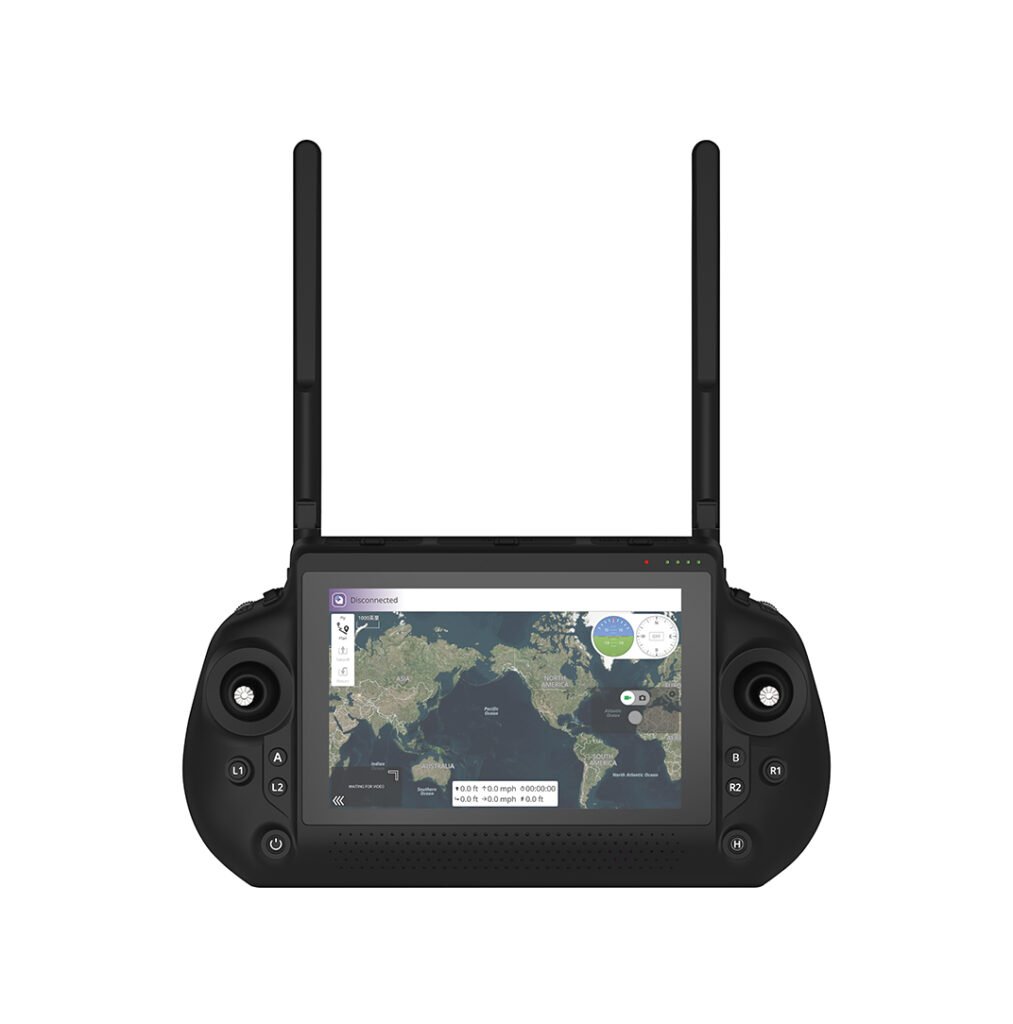

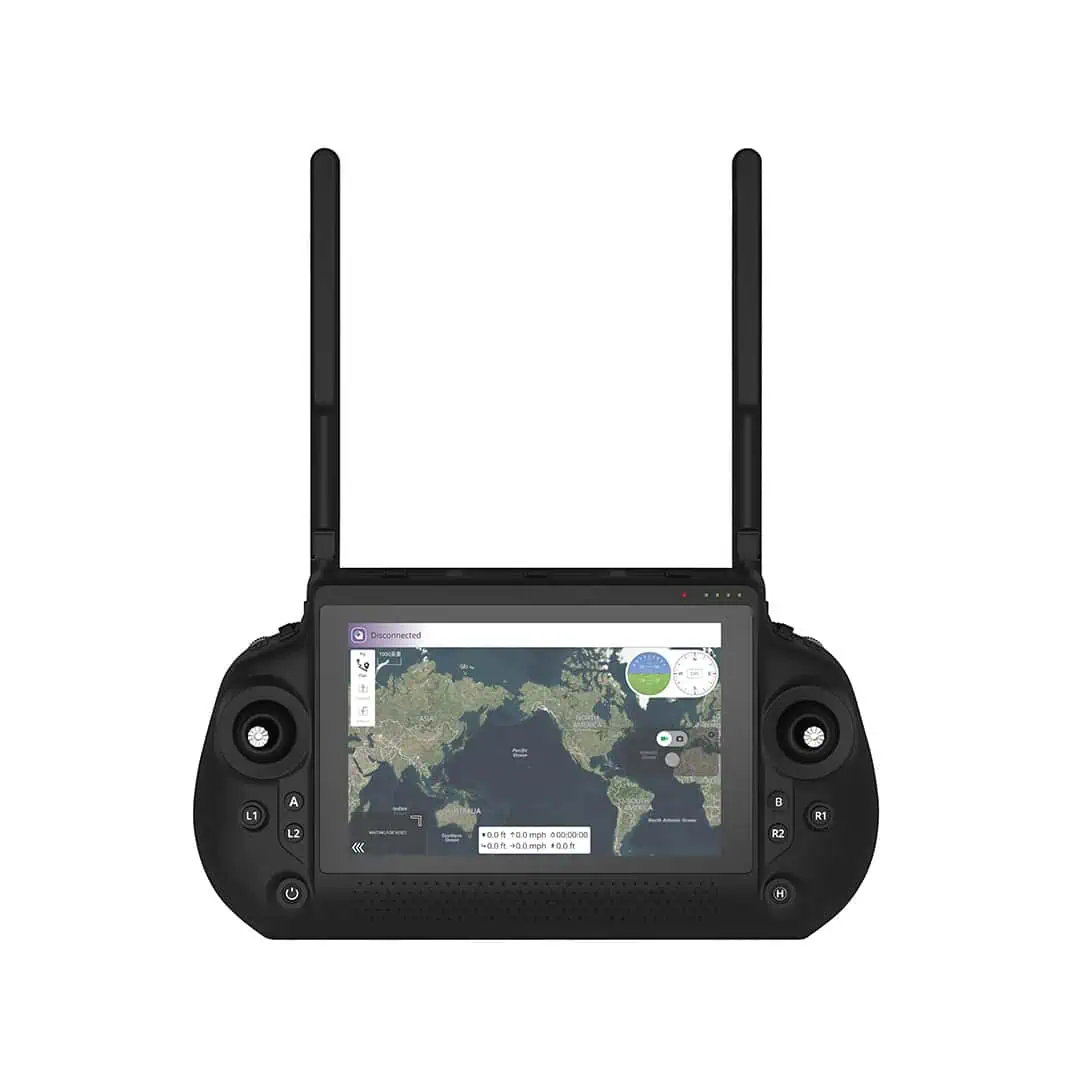

The ViuRC7-N is an NDAA-compliant remote control solution designed for command, video, and telemetry connectivity across uncrewed platforms. Its bidirectional TDD link operates on 2.4 GHz and 5.8 GHz bands, with adaptive frequency hopping supporting resilient wireless operation. Communication range exceeds 15 km with standard antennas and can reach up to 30 km when paired with a patch antenna. A daylight-readable, high-sensitivity 7-inch touchscreen provides 1080p resolution and 1,200-nit brightness, giving operators a clear interface for field deployment.
The controller provides 21 channels together with customizable buttons for adaptable vehicle control. Integrated USB, microSD, Ethernet, and HDMI interfaces support peripheral, networking, storage, and display connections, while PTMP network topology capability enables broader communications architectures. The Android-based platform is offered with Android 9.0 or 13.0, delivers up to six hours of operation, and is rated for working temperatures from -20°C to +55°C.
| Frequency: | 2.4 GHz / 5.8 GHz |
| Transmission power: | 26 dBm @ 2.4 GHz; 24 dBm @ 5.8 GHz |
| Channels: | 21 |
| Display: | 7-inch, 1080p, 1,200-nit LCD touchscreen |
| Operating system: | Android 9.0 / 13.0 |
| Operating duration: | 6 hours |
| Working temperature: | -20°C to +55°C |
| Interfaces: | USB, microSD, Ethernet, HDMI |
| Communication distance: | 15 km+ with standard antennas; up to 30 km with patch antenna |
| Wireless link: | TDD bidirectional link for video, telemetry, and remote control |
| Network capability: | PTMP topology |
