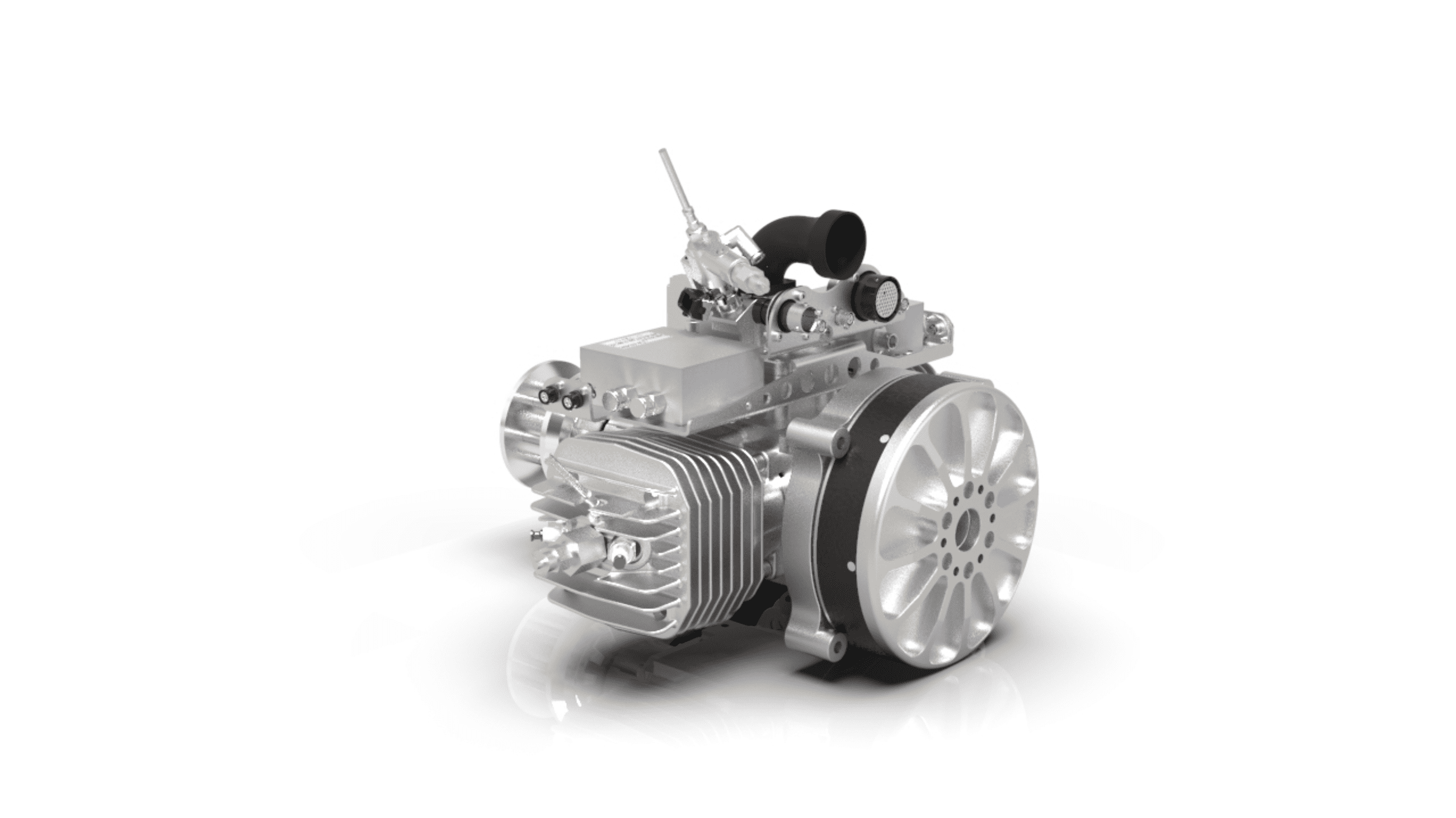

SP-210 FI TS ROS 2-Stroke Engine
The SP-210 FI TS ROS is a fuel injected two-stroke engine with twin spark and rear output shaft suitable for a variety of UAV and UAS applications.
The 2-stroke dual cylinder SP-210 engine with 210ccm is the most popular dual in the propulsion portfolio, positioned in the 60~100kg UAS tier. Current operational conditions include maritime and desert environments with 1000s hours achieved to date. The SP-210 FI TS ROS engine comes with dual spark for redundancy and a rear output shaft for user flexibility.
The following additional configurations can be offered:
- Generator and Controller
- Starter Generator and Controller
| Type | 2-Cylinder Gas Engine |
| Capacity | 210 ccm / 12.81 cu in |
| Power | 14.9 HP / 11.0 KW @ 5500 RPM |
| Speed Range | 1500 – 7000 RPM |
| Weight | without subcomponents 20.7 lbs (9.4 kg) |
| Crankshaft | 4 ball bearings |
| Oil/Gasoline ratio | 1:50 / 2% mix |
| Operating Voltage | 12 – 15 V DC |
| Bore diameter | 2.16 inch (55.00 mm) |
| Stroke | 1.77 inch (45.00 mm) |
| Torque | 21.00 Nm @ 4500 RPM |
