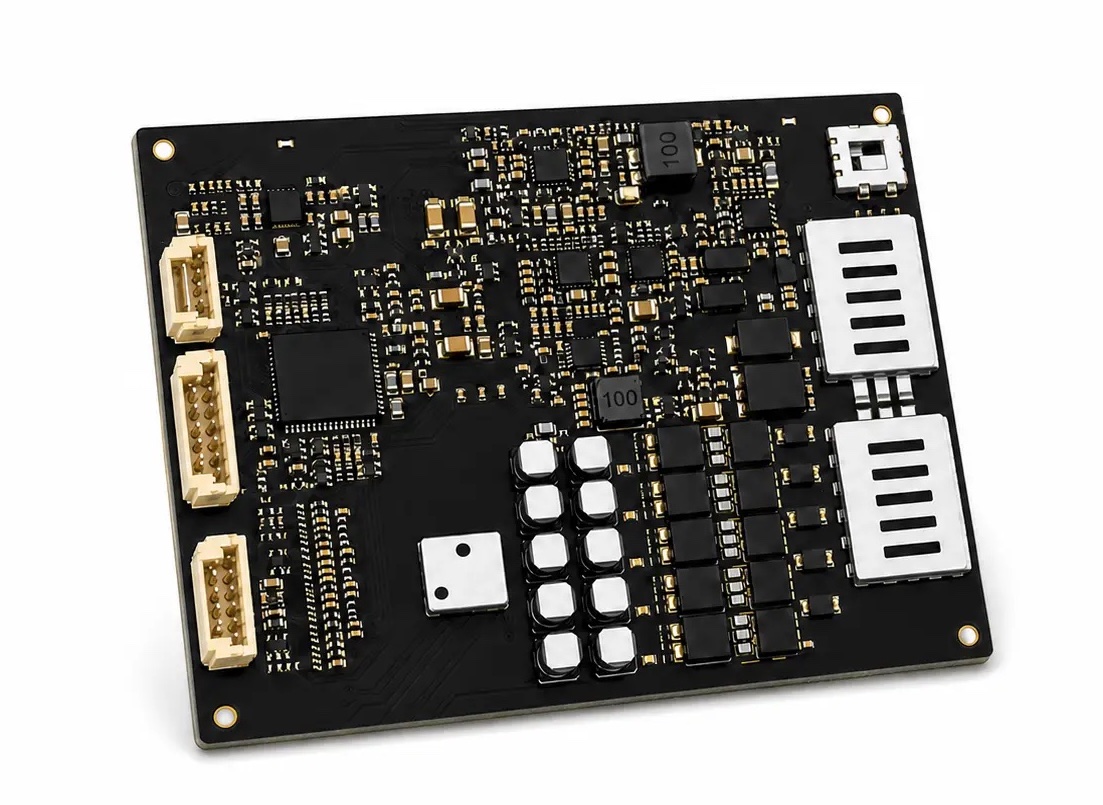

The EF-012 from Ayaa UAV Power is a compact smart Battery Management System (BMS) for 6S UAV battery packs with 80A continuous discharge. Designed for training, light-route, inspection, and other professional drone applications, it combines cell, pack, and temperature monitoring with passive balancing, configurable protection functions, and battery-state estimation. These capabilities give integrators access to key battery information while supporting active supervision of the pack during operation.
For connection to compatible aircraft systems, the EF-012 supports DroneCAN (UAVCAN/Cyphal), PX4, JIYIUAV, VKCAN, SKYRCCAN, and BOYINGCAN. Its communication and host-access capabilities can be used for telemetry, diagnostics, parameter management, and review of battery operating data. The BMS has a compact footprint of 71 × 63.8 × 15 mm and weighs 35 g.
Specifications:
| Supported Cell Configuration: | 6S |
| Continuous Discharge: | 80A |
| Communication: | DroneCAN (UAVCAN/Cyphal), PX4, JIYIUAV, VKCAN, SKYRCCAN, BOYINGCAN |
| Dimensions: | 71 × 63.8 × 15 mm |
| Weight: | 35 g |
