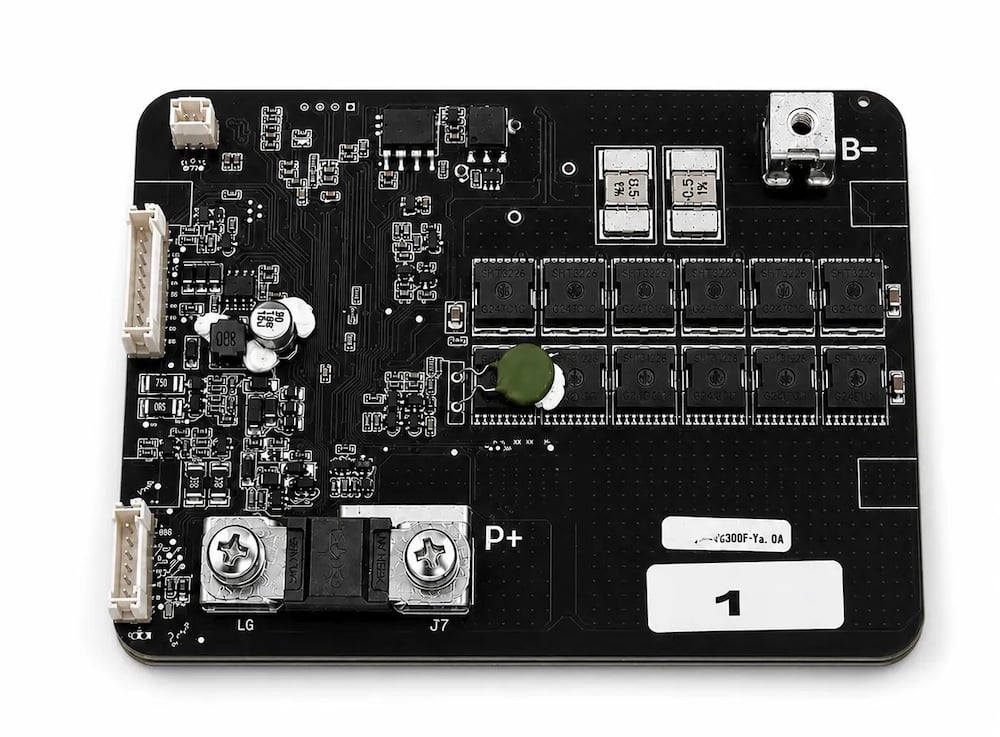

The EF-006 from Ayaa UAV Power is a smart UAV Battery Management System (BMS) for 12S battery packs with 81A continuous discharge. It combines cell, current, and temperature monitoring with passive balancing, battery-history access, configurable protection behavior, and in-flight alerting for abnormal battery conditions. These functions support inspection, detection, training, and other professional UAV platforms where battery status needs to remain visible throughout operation.
For flight-control and system integration, the EF-006 supports DroneCAN (UAVCAN/Cyphal), PX4, JIYIUAV, VKCAN, SKYRCCAN, and BOYINGCAN. It can provide battery information to compatible onboard and engineering systems, while additional connectivity enables local access to pack data and operating history. The BMS measures 120 × 94 × 20 mm and weighs 95 g.
Specifications:
| Supported Cell Configuration: | 12S |
| Continuous Discharge: | 81A |
| Communication: | DroneCAN (UAVCAN/Cyphal), PX4, JIYIUAV, VKCAN, SKYRCCAN, BOYINGCAN |
| Dimensions: | 120 × 94 × 20 mm |
| Weight: | 95 g |
