MAXL-OL-2015 is a state-of-the-art inertial sensor based on a unique MEMS device, designed to provide high stability and low noise measurement.
Accelerometer’s one year bias repeatability of 2 mg and one year scale factor repeatability of 600 ppm enable excellent measurement accuracy for inertial navigation applications.
A specially developed ASIC utilized in MAXL-OL-2015 produces a differential analog voltage output proportional to acceleration along with a temperature – proportional voltage output that can be used for system needs. The output voltage range is ± 1.2 V.

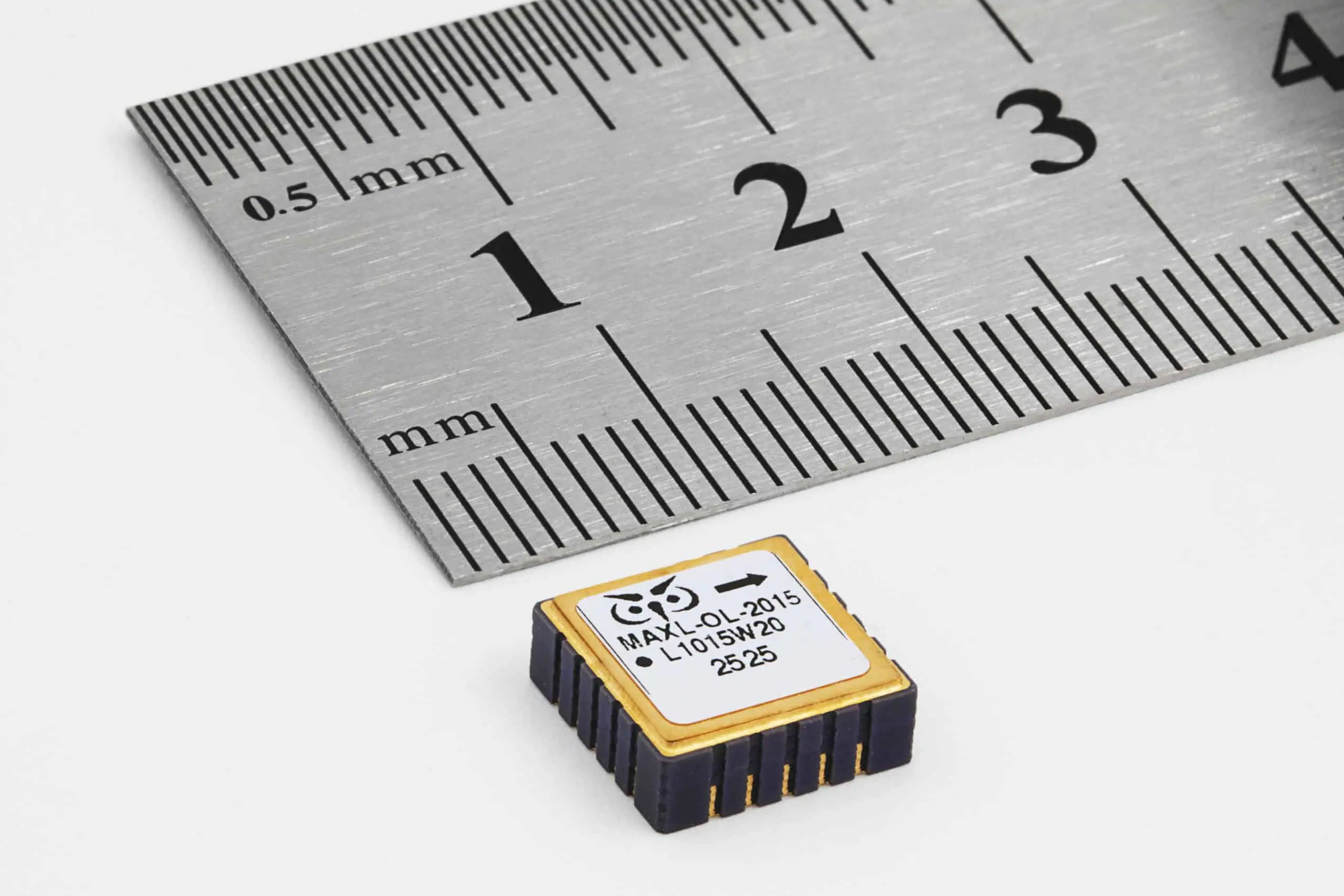

A highly advanced device, the MAXL-OL-2015 provides a sensing range of ± 15 g, it operates from a single power supply voltage of 3.3 V with <13 mA current consumption. The sensor is packaged in a hermetically sealed LCC20 ceramic package.
** Also available as export control free products - MAXL-OL-2015C (Operating temperature range tested @ -10⁰C to +60⁰C)
