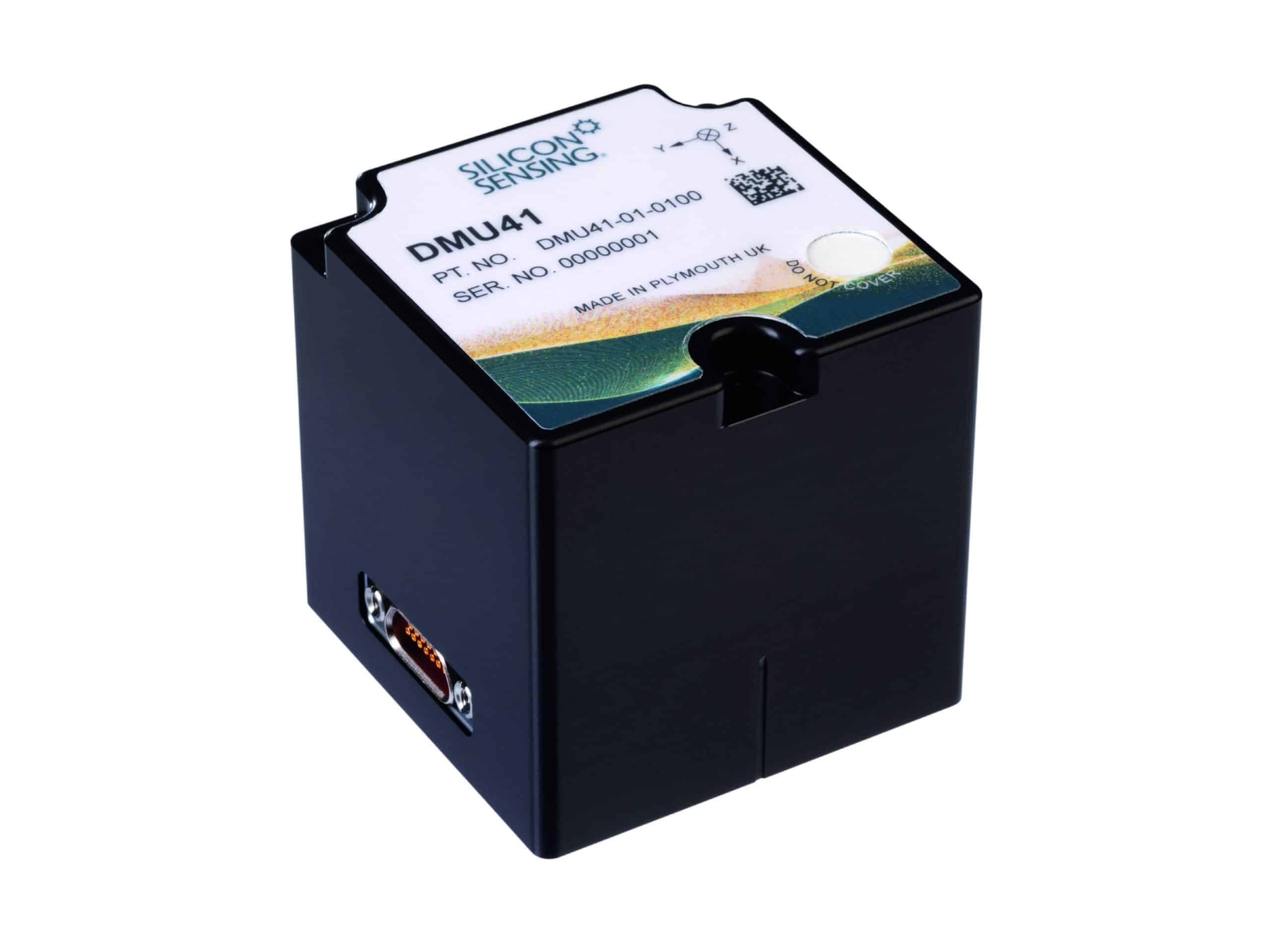

DMU41
An affordable non-ITAR MEMS IMU alternative to 'FOG-Grade' IMUs for use in exacting motion sensing applications.
The latest of a family of High Performance IMUs (HPIMUs), DMU41 is another ground-breaking, non-ITAR, MEMS IMU for use in applications ranging from unmanned vehicle navigation to surveying and mapping.
Dimensions | 50 x 50 x 50 mm |
Weight | 200g |
Dynamic Range | ±490°/s, ±10g |
Bias Instability | 0.1°/hr, 0.015mg |
Bias over Temperature | ±7°/hr, ±1.7mg |
Current Consumption | 125 mA @ 12V |
Baud Rate | 460800 baud |
