Compact & Lightweight AUVs for Scientific, Commercial & Defense Applications
ecoSUBm5 Power+ AUV 500 metre-rated AUV with enhanced power & payload capabilities
ecoSUBm5 Power+ AUV

500 metre-rated AUV with enhanced power & payload capabilities

Visit Website Contact
Saved
Save

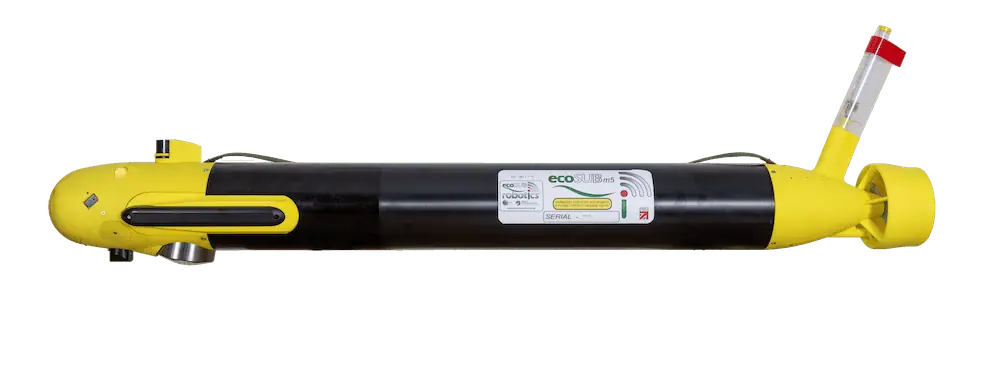

ecoSUBm5 Power+ AUV

The ecoSUBm5 Power+ is a special configuration of ecoSUB Robotics' ecoSUBm AUV that provides extra space for sensors and payloads, as well as a second set of batteries that can be used to power additional equipment or enhance the vehicle’s endurance. Even with this additional capability, the ecoSUBm5 Power+ is still one-person portable, weighing just 17 kg.

The versatile platform can be used to field a wide variety of sensors and equipment, including scientific and environmental sensors, side scan sonars, high-resolution cameras, DVLs and USBLs. It can also be equipped with the NVIDIA Jetson Orin Nano platform for advanced edge computing and machine learning, and multiple units can be networked together for swarm operations.

Specifications:

Diameter 146 mm
Length 1450 mm (dependent on payload)
Weight in Air 17kg (with NiMH batteries, no payload or ballast)
Depth Rating 500m
Maximum Endurance 30 hrs
Communications Surface: Iridium SBD, Wi-Fi
Submerged: Acoustic, USBL (optional)
