Cambridge Pixel is a leading developer of radar software, sensor processing, and display solutions for USVs (unmanned surface vessels).

Our state-of-the-art solutions have been used to support military and commercial unmanned maritime platforms all around the world. Our technologies can be interfaced with a wide variety of maritime radars, as well as other sensors including cameras, AIS, GPS/GNSS, and motion reference units (MRUs).

USV tracking software

SPx Tracking Server – Radar Processing Software

Extract Radar Data and Track Targets

spx server Radar Traxcking System

SPx Server is a COTS radar data extractor and target tracker for USVs that can be interfaced directly to vessel hardware or work with radar video sent over a network. The system processes polar format primary or IFF radar video to identify targets, correlating from scan to scan to provide positional and motion updates.

spx server Radar data extractor

The system software includes the SPx Processing library, which provides a comprehensive range of radar processing capabilities, including:

  • Gain control
  • Area-based video removal (masking)
  • CFAR thresholding
  • Interference suppression
  • and many other functions

spx server Radar Tracking

User-defined processes may be incorporated into the processing workflow, allowing for custom solutions that use SPx as the integrating framework.

A variety of parameters can be configured to fine-tune the performance of the tracker, including:

  • Minimum/maximum target speed
  • Fixed or adaptive gain
  • Expected target dynamics
  • Measurement noise estimates
  • Target size limitations

SPx Fusion Server – Sensor Data Fusion Software

Fuse multiple sensors into a single correlated data stream

SPx Fusion Server software fuses observations from multiple independent sensors into a single stream of correlated reports that can be broadcast over a network with no additional development required.Sensor Data Fusion Software diagram

It can take in data from primary radar videos (using SPx Server) and also from secondary sources, such as AIS.

The SPx Fusion software allows users to assign a priority and a score to each sensor, giving more weight to sensors which are known to be more accurate.

Radar Data Integration

The radar software correlates the input source reports and generates a single set of output reports without duplicates. It can handle sensors that have an overlapping coverage region(s), e.g. an S-band and X-band radar, providing handover support as targets move from one sensor to the next.

SPx Fusion Server Radar processing

SPx Fusion of Overlapping / Co-located Sensors


More information: SPx Fusion Server – Sensor Data Fusion Software

HPx 346 – Radar Data Converter Hardware

Interface to a maritime or specialist radar

The HPx-346 is a small form factor interface and distribution unit that digitises analogue data from radars and distributes it as UDP packets over Ethernet. Available as an enclosed unit or as an OEM card for system integrators, the unit features a low-power ARM/FPGA-based System on Chip (SoC) that boots up in less than ten seconds and consumes less than 5W of peak power. So far we’ve interfaced to 80+ radars.  View all supported radars here

HPX 346 interface Radar signal processing

HPx-346 boxed unit (single network)

HPX 346 interface Model-based tracking

HPx-346 rack-mount unit

How does it work?

The unit accepts radar video, trigger and azimuth (ACP/ARP) signals as inputs, and can be configured to handle a wide range of signal types, including differential and single-ended with signals up to 60V, allowing it to interface with a wide range of different radar models.

HPX 346 Radar interface

The HPx-346 can be configured, controlled and monitored by a convenient and intuitive web interface, accessed via a standard web browser with no additional programming required.

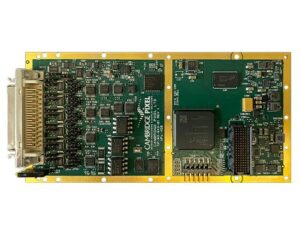

HPx 450 – Radar Interface Card

Connect up to two analogue or digital radars

Radar Interface CardThe HPx-450 is a versatile radar interface card that can operate in single- or dual-stream mode and can be connected to a wide range of analogue and digital radars for high-resolution data capture. Designed with an XMC Switched Mezzanine format, it is compatible with VME, VPX and Compact PCI processor cards, and features a four-lane PCI Express interface with data transfers of over 500 MB/sec.

The card supports a wide range of different radar signal types, including single-ended, differential, open-collector, and opto-isolated. Radar video, trigger and azimuth signals are accepted in the form of ACP/ARP or parallel data, and software alarms can be set for loss of triggers or azimuth data.

The flexible solution allows dual-stream functionality to be used in a number of different ways:

  • Dual sampling of one radar video at different rates – for example, higher sampling at short ranges for maximum close-in detail, and additional lower sampling across the full radar range for maximum coverage
  • Dual redundant mode – provides software-controlled automatic failover from one input channel to the other in case of loss of trigger, ACP or ARP signal
  • Dual independent mode – simultaneous and independent capture of data from two separate radars

The HPx-450 is ideal for use in rugged embedded systems and is available in commercial and extended temperature variants.

Maritime Display Framework Visualization Software

Develop custom transponder & radar data user interfaces

The Maritime Display Framework is a software development package that allows users to create custom Windows .NET-based user interfaces for the display of primary maritime radar data and secondary transponder information.

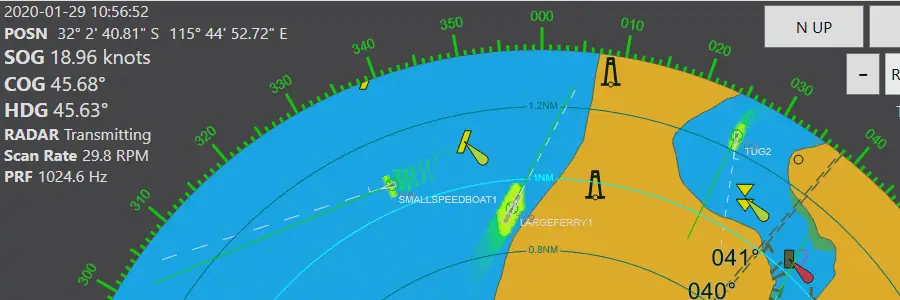

Maritime Display processing

Radar Data Visualization

The user interface can be customized to display scan-converted primary radar video, video track information, electronic charts, secondary transponder information, and camera video. Multiple camera windows with various input formats are supported, including H.264 via RTSP stream.

Maritime Display Framework - Radar tracking

The software development package provides various tools for processing of information commonly required for maritime displays, such as generation of predictive vectors, calculation of a tracked object’s closest point of approach (CPA), and time to CPA (TCPA), providing warning of collision with other vessels. A comprehensive range of alarms can be built into displays, including target track alarm type and target dependence (such as hazardous cargo status provided in AIS).

USV – Toolkit

Data Recording, Camera Control, Tracking and Video Distribution, Simulation

Designed to be used in conjunction with SPx Server, a variety of our technology components can be used for USV navigation and development. Our customers can choose any combination of technologies to suit their needs – including a comprehensive development library, interfacing solutions to a range of maritime and specialist radars for target tracking and radar control, track correlation from multiple sources, camera control including the ability to follow a selected radar track automatically, mission data recording and replay, remote monitoring applications, inspection tools including AIS, radar simulation and training, and protection against GPS signal loss.

Cambridge Pixels’ USV toolkit technology ecosystem

USV Radar tracking software

More information: USV Toolkit
