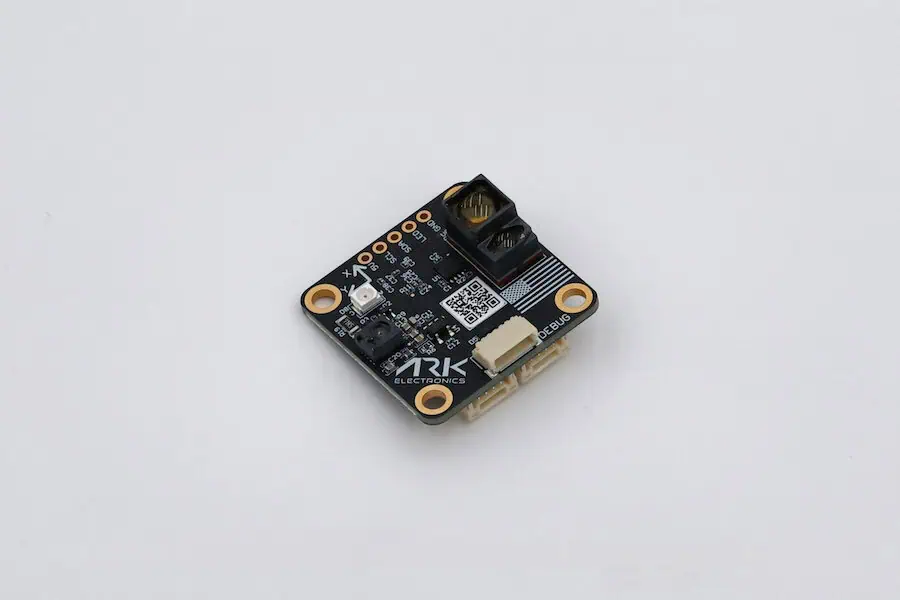

ARK Flow MR
The ARK Flow MR is an NDAA-compliant drop-in upgrade module for the ARK Flow optical flow and distance sensor module, providing enhanced navigation and positioning capabilities for unmanned aerial vehicles and ensuring stable flight performance even under GNSS-denied conditions such as inside buildings, tunnels and urban canyons.
The miniature module features an upgraded optical flow module and time-of-flight distance sensor, and extends the distance sensing range of the ARK Flow up to 50 meters while adding just 5 grams to the system weight.
The sensor runs PX4 open-source firmware and supports updates over DroneCAN. It also provides support for ROS2.
Specifications:
| Dimensions: | 3 x 3 x 1.4 cm |
| Weight: | 5g |
| Power: | 5V 86 mA average, 90 mA max |
| Optical Flow Sensor: | PixArt PAA3905 Wide working distance from 80mm to infinity No focal length calibration required Auto detection of challenging conditions, such as checker boards, stripes, glossy surface and yawing Automatic switching of Operation Mode 40mW IR LED built onto board for improved low light operation |
| Distance Sensor: | Broadcom AFBR-S50LX85D Typical distance range up to 50m Operation of up to 200k Lux ambient light Laser Opening Angle of 2° x 2° |
