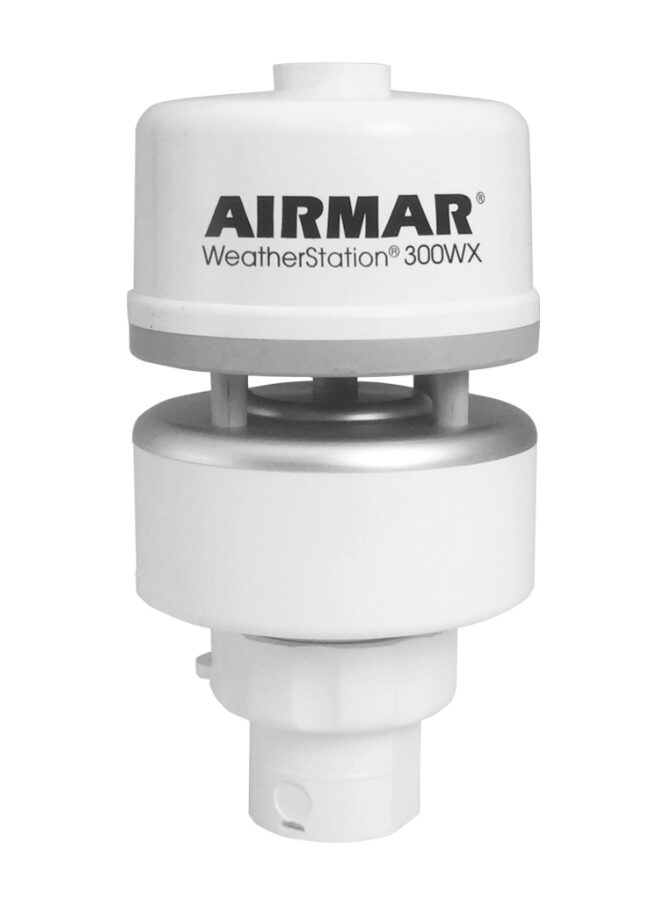

300WX-IP67 WeatherStation® Instrument
The 300WX-IP67 is a marine weather station and offshore weather multisensor designed to provide accurate data to enable operational decision-making for USVs, ASVs and other dynamic offshore applications. No moving parts and proven IP67-rated construction enable reliable operation even in harsh sea conditions.
The 300WX-IP67 calculates theoretical wind speed and direction based upon apparent wind as well as vessel speed and heading. In addition, it also features an integrated compass, GNSS, three-axis gyro and accelerometer for high-accuracy rate of turn and pitch & roll measurement.
| Dimensions | 72 x 131 mm |
| Weight | 300g |
| Power | 9-40 VDC <0.9W @ 12V |
| Wind Speed | Range: 0-40 m/s Accuracy: 1.5 knots RMS @ 20 knots Resolution: 0.1 m/s |
| Wind Direction | Range: 0° to 359.9° Accuracy: 2.5° RMS @ 20 knots Resolution: 0.1° |
| Air Temperature | Range: -25° to 55°C Accuracy: ±1.1°C @ 20°C Resolution: 0.1° |
| Barometric Pressure | Range: 700 mbar to 1100 mbar (20.5 inHg to 32.5 inHg, 700-1100 hPa) Accuracy: ±1 hPa @ 25°C (or better) Resolution: 0.1 hPa |
| Three Axis Compass | Range: 0 to 359.9° Accuracy: 1° static heading accuracy; 2° dynamic heading accuracy Resolution: 0.1° |
| Pitch & Roll | Measurement Type: MEMS Range: ±45° Accuracy: ±1° in range of ±30° Resolution: 0.1° |
| GNSS Position Accuracy | 2.5 m (8’) CEP ‡ |
