First Hybrid & Multidimensional Quantum Inertial Sensor Developed

This development represents an important step towards the development of a drift-free inertial navigation system exploiting the quantum advantage By Caroline Rees / 22 Nov 2022
Follow UST

Exail, formerly iXblue, has demonstrated its three-axis quantum inertial sensor, developed within the iXAtom joint laboratory, a research team shared with the LP2N lab1 in Bordeaux.

Exail believes such an instrument will enable users to continuously track and measure the acceleration in three dimensions and within any orientation – an important step towards the development of a drift-free inertial navigation system exploiting the quantum advantage.

According to Exail, an inertial navigation sensor must provide continuous signals at high rates and maintain its accuracy and sensitivity over long periods of time. If current navigation sensors offer high performance, they drift over a certain period of time. Quantum sensors are extremely accurate and robust, but they have inherent dead time during measurements and have a reduced operating dynamic. By combining these two technologies – and the respective expertise of the two academic and industrial partners – the iXAtom team has developed this first hybrid and multidimensional quantum inertial sensor.

The iXAtom team claims this sensor provides a continuous signal at the rate (bandwidth) of the classical sensor, but with an accuracy 50 times better, thanks to an in situ and real time calibration provided by the quantum measurement.

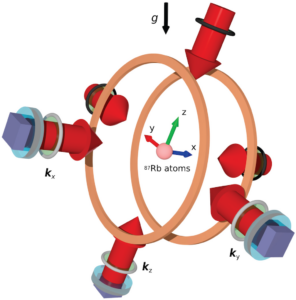

Design concept and geometry of the hybrid quantum inertial sensor_Exail-iXAtom

To develop this sensor, the team used atoms cooled to a few millionths of degrees in free fall within a vacuum chamber. These atoms form an inertial reference that is compared, by atomic interferometry, to the movement of three reference mirrors that define the three orthogonal directions of a triad of laser beams used for the measurement. On each mirror, a mechanical accelerometer is rigidly fixed to realize the hybridization. It is the first quantum sensor that does not require a precise alignment according to a predefined measurement direction, since it determines the direction of the measured acceleration by itself.

The architecture is based on a minimum number of laser beams, compactness being a key parameter for future deployments of these sensors in real conditions.

Exail believes this is an important step forward in the development of inertial navigation systems using quantum technologies, that could completely overcome the need for navigation systems to recalibrate using external signals such as GNSS.

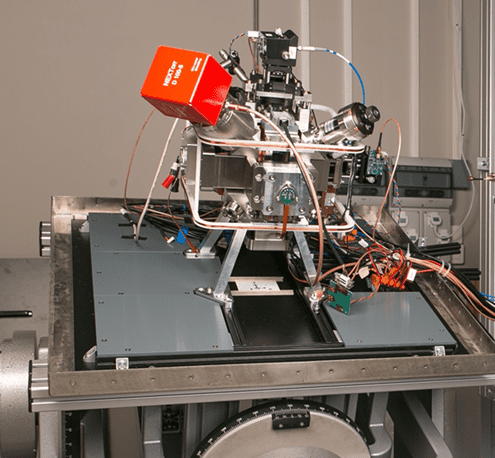

Picture_sensor_Exail-iXAtom
On each of the three measurement axes, a mechanical accelerometer is fixed on the reference mirror of the atom interferometer, forming the classical/quantum hybridization which allows a continuous bias-free measurement of the acceleration. The three components allow to measure the vector “acceleration” along an arbitrary direction. The sensor is fixed on a rotating platform allowing the demonstration of the measurement for different angles.
