The XPedite7770 single board computer (SBC) from developer Extreme Engineering Solutions (X-ES) delivers secure, high-performance computing, leveraging the Intel® Xeon® D-1700 series (formerly Ice Lake-D) processors.
Engineered for drones and robotics that require robust data protection, this 3U VPX-REDI module integrates SecureCOTS™ technology with a Microsemi® PolarFire™ System-on-Chip (SoC) FPGA. This combination ensures data integrity by preventing unauthorized modifications or observations, making it an ideal solution for environments with stringent security requirements.

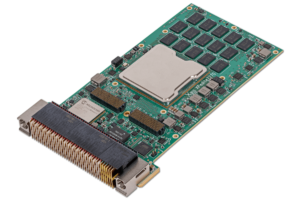

XPedite7770 SBC
Advanced Networking & Storage Capabilities
The high-speed XPedite7770 features 100GBASE-KR4, 10GBASE-KR, and 10/100/1000BASE-T Ethernet ports. It supports up to 48 GB of DDR4 ECC SDRAM across three channels and provides up to 256 GB of onboard NAND flash.
Additional connectivity options include USB 2.0, PCI Express, and RS-232/422/485 serial interfaces through the backplane connectors. The integrated XMC site expands functionality, offering a x8 PCI Express connection to the Intel® Xeon® D processor and X12d I/O mapped directly to VPX backplane connectors.
SOSA-Aligned & Highly Configurable
With a SOSA-aligned pinout, the XPedite7770 is compatible with backplane slot profile 1F1F2U1TU1T1U1T-14.2.16. The AMPS profile is MODA3-16.2.15-1-F2C-(E8)(P3F)(2E7-E3)(N-N-N-N-M3/M4/M5-N)<N>, subject to specific limitations.

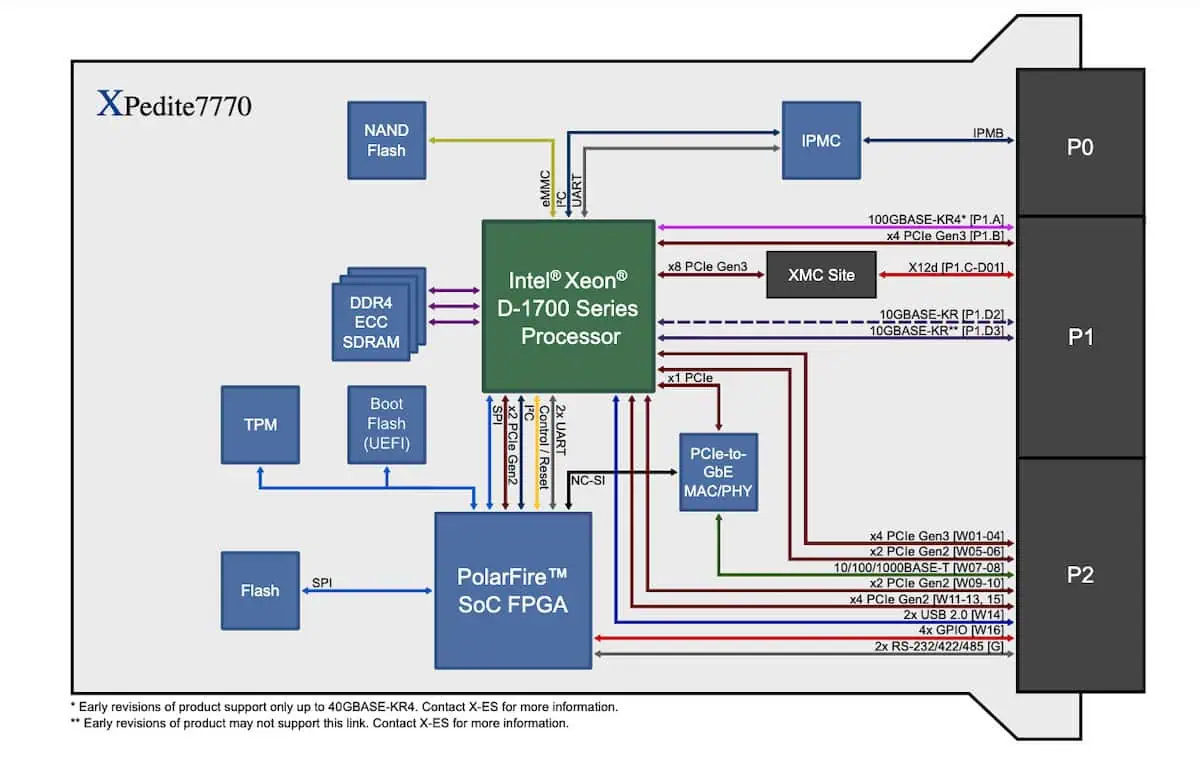

Block Diagram
Comprehensive Software Support
The XPedite7770 supports Wind River VxWorks and X-ES Enterprise Linux (XEL) Board Support Packages (BSPs), ensuring seamless integration with various applications.
The XPedite7770 provides an optimal combination of security, speed, and expandability, making it a reliable choice for mission-critical applications requiring high-performance computing and data protection.
View the full specifications here, or visit the X-ES website for more information.Â
