XPedite7670 3U VPX-REDI SBC Intel Xeon D-1500 Processor-Based SBC with Dual 10 Gigabit Ethernet
XPedite7670 3U VPX-REDI SBC

Intel Xeon D-1500 Processor-Based SBC with Dual 10 Gigabit Ethernet

Visit Website Send Message
Saved
Save
XPedite7670 3U VPX-REDI SBC

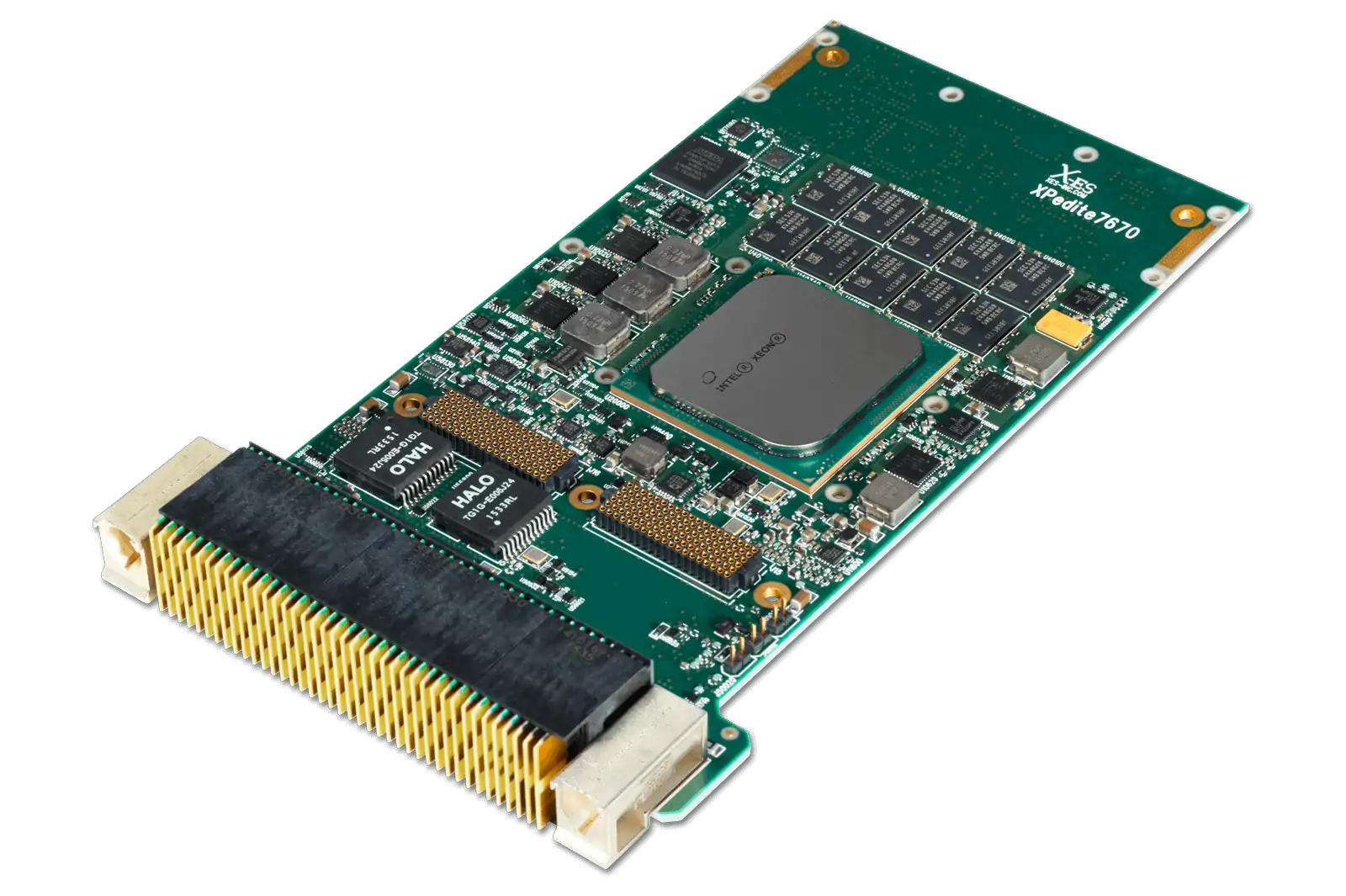

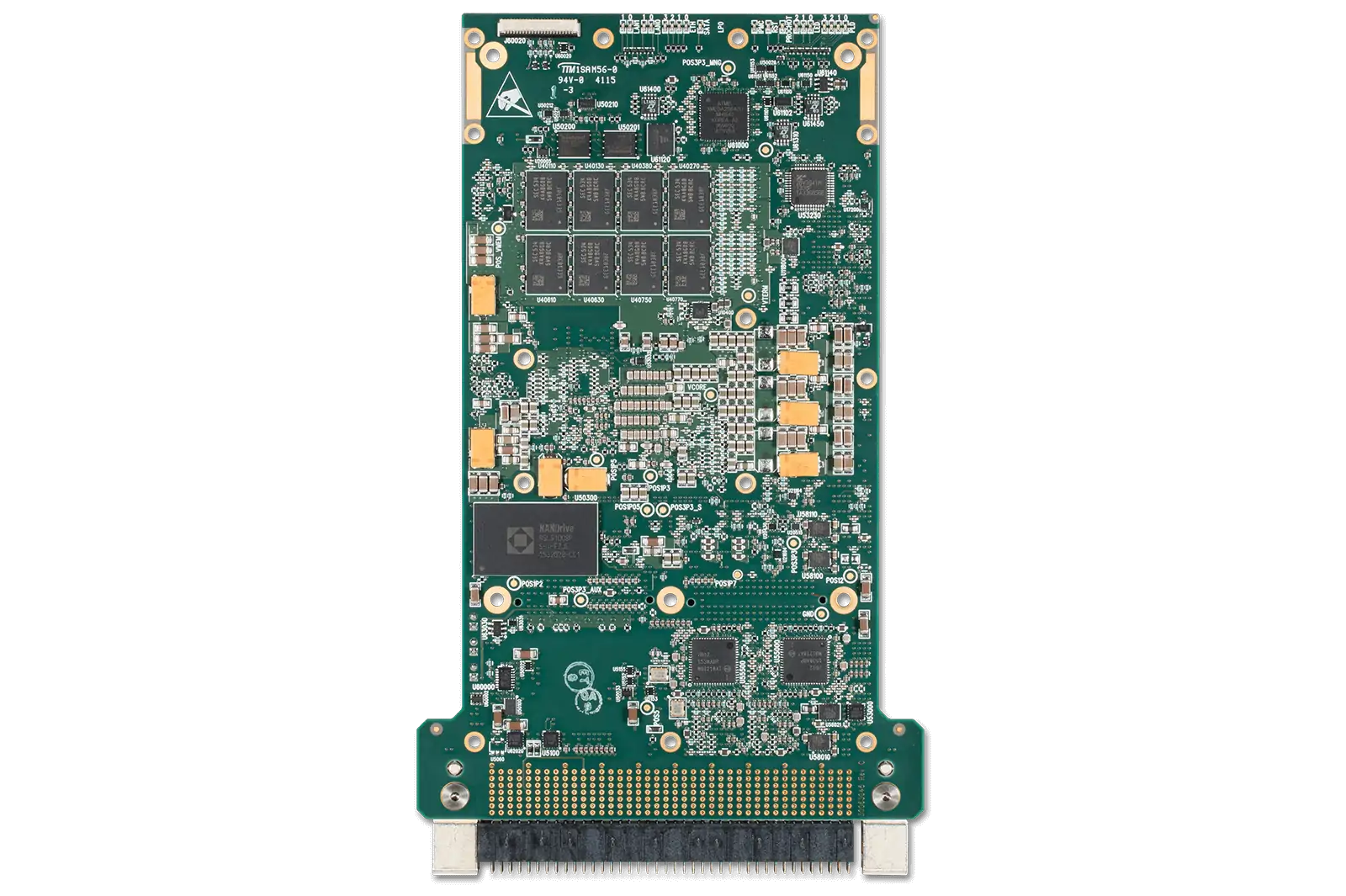

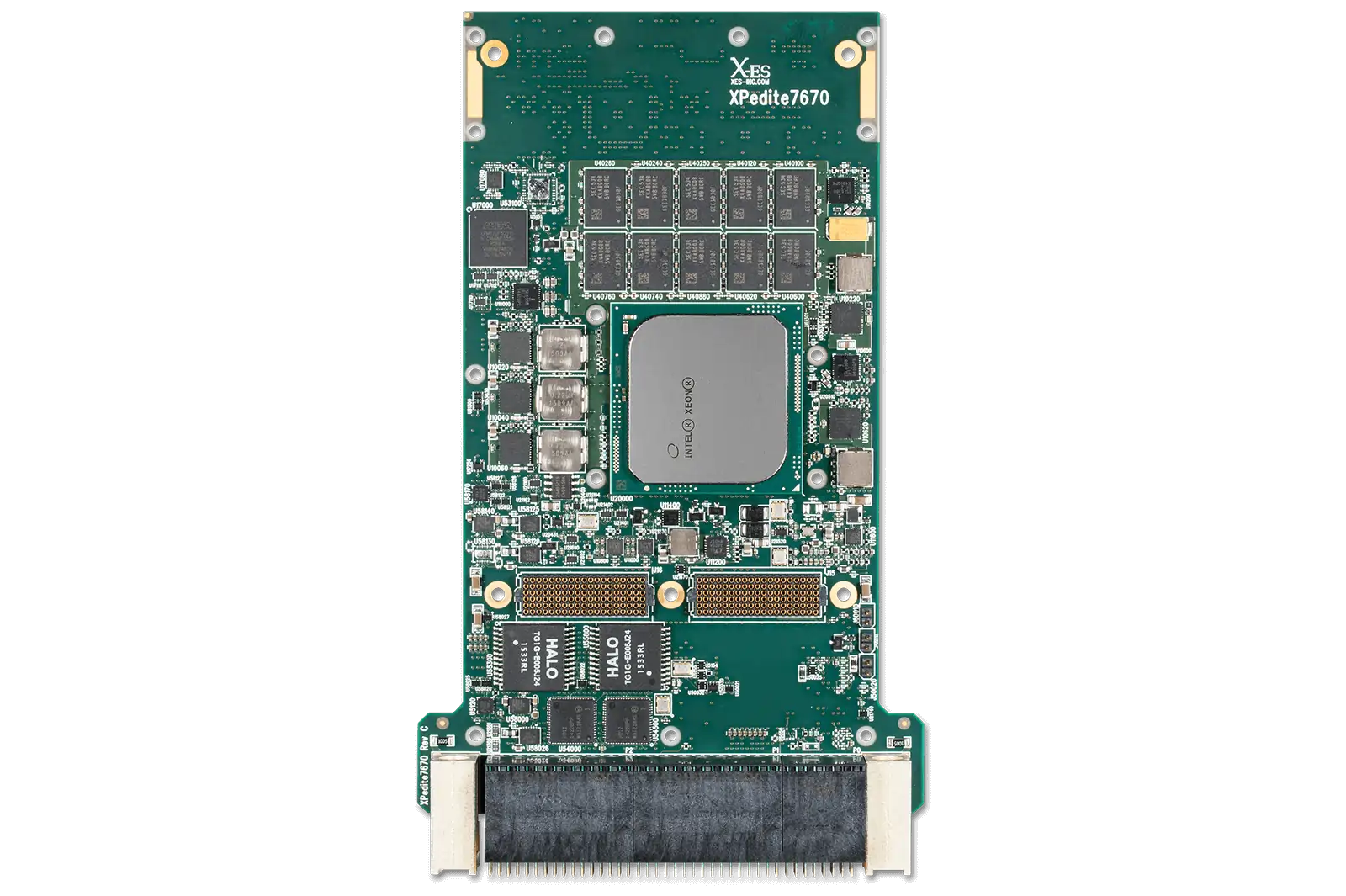

The XPedite7670 is a 3U VPX-REDI single board computer incorporating an Intel Xeon D-1500 processor. The powerful Xeon D-1500 provides up to 16 Xeon-class cores in a single, power-efficient System-on-Chip (SoC) package. The system can address up to 16 GB of DDR4-2133 ECC SDRAM in two channels, making it ideal for memory-intensive applications.

The rugged embedded system supports a single x8 PCIe interface or two x4 PCIe interfaces, as well as Non-Transparent Bridging for direct communication with other Intel processors. Two 10 Gigabit Ethernet ports configured as 10GBASE-KR and two Gigabit Ethernet ports configured as 10/100/1000BASE-T give the XPedite7670 the ability to provide superior network performance.

The XPedite7670 gives system integrators highly flexible growth and expansion capabilities, with an XMC site with full 10 mm I/O envelope support, as well as a 0.8 in. VPX slot pitch (12 core processor configurations require 1.0 in. pitch). This allows the single board computer to interface with a wide variety of COTS options for additional I/O, storage, or processing.
